Injen SES9301ICPWB Intercooler Charge Pipes for 2021-2024 Ford Bronco 2.7L Black

Vehicle Fitment

• 2021-2024 Ford Bronco (Base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, Everglades, Raptor, Heritage, First Edition | V6-2.7L Twin Turbo EcoBoost)

Fitment Notes

• Compatible with the 2.7L Twin Turbo EcoBoost V6 engine only. Does not fit the 2.3L EcoBoost four-cylinder Bronco.
• This is a complete charge pipe kit that replaces both the hot-side and cold-side factory intercooler pipes. Verify that all factory piping connections are intact before installation.
• Pairs directly with the Injen EVO9302 and EVO9302C cold air intake systems for maximized combined performance gains.
• Not currently CARB exempt. Not legal for sale or use on vehicles registered in California or other CARB-compliant states.
• Also available in Wrinkle Red finish - see Injen SES9301ICPWR for that option.
• Installed intercooler and charge pipe systems are non-returnable per Injen's policy. Professional installation is recommended.

Features

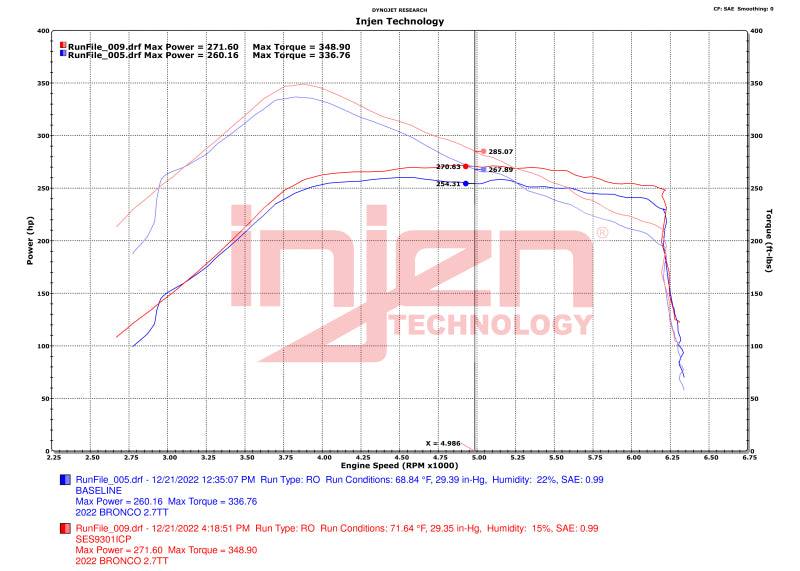

• Dyno-proven performance gains of up to 16 additional horsepower and 17 lb-ft of torque over the factory charge pipe system, verified on Injen's in-house dynamometer
• Oversized 2.75" 6061-T6 aluminum piping is larger than the factory pipes, reducing restriction and increasing the volume of cooled charge air delivered from the intercooler to the engine for every boost event
• Mandrel-bent aluminum construction maintains the pipe's full inner diameter through every bend - eliminating the flow-restricting deformation of conventionally pressed bends and minimizing turbulence in the charge air path
• Replaces the factory brittle plastic and composite charge pipes, which are known to crack, split, and fail - particularly on lifted Broncos experiencing additional engine bay stress and thermal cycling from off-road use

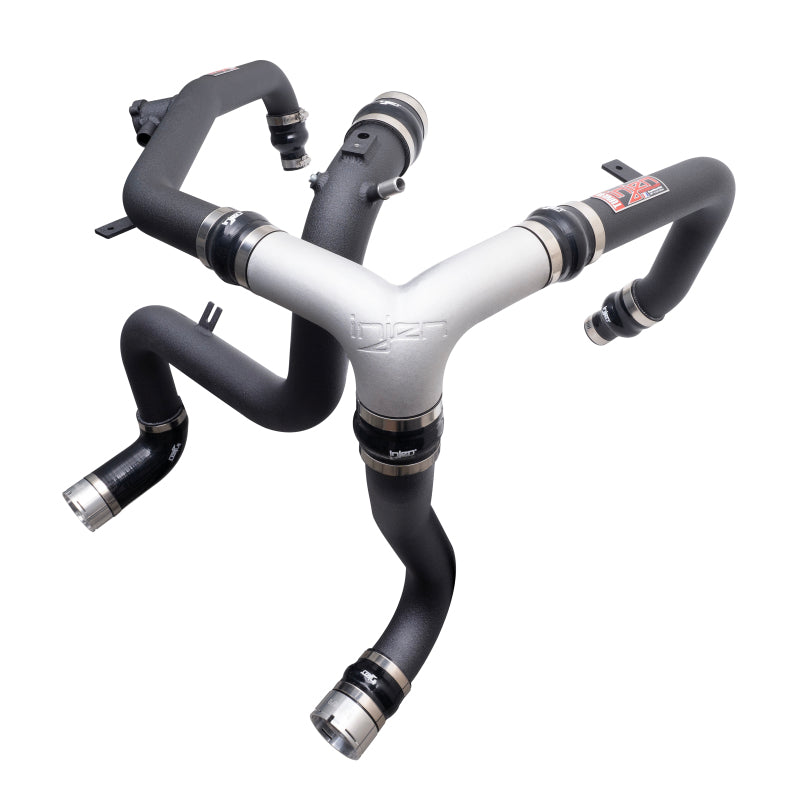

• Precision cast aluminum Y-Pipe is specifically engineered for the 2.7L's twin turbo architecture - the cast geometry equalizes charge air flow between both turbocharger outlets for harmonized power delivery from each cylinder bank

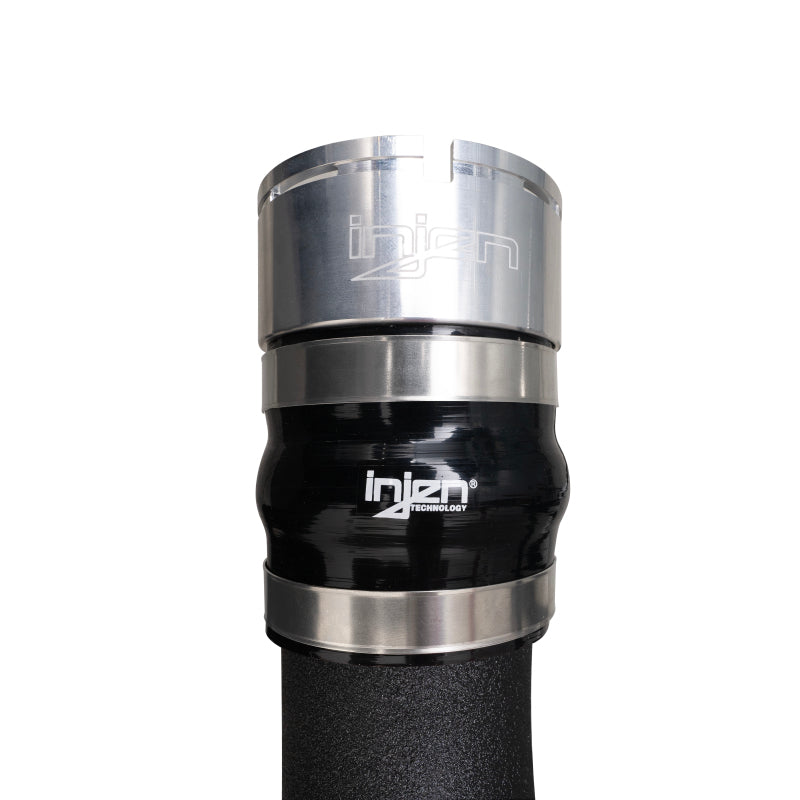

• CNC machined quick-connect adapter flanges precisely mimic the OE-Style connection interface for a simple, leak-free installation without fabrication or modification
• Wrinkle black powdercoat finish delivers a bold, aggressive underhood appearance with excellent heat and corrosion resistance in the demanding charge pipe environment
• Complete system - includes both hot-side (turbo outlet to intercooler) and cold-side (intercooler outlet to throttle body) piping for a full charge air tract replacement in one kit
• Pairs perfectly with Injen's EVO9302 and EVO9302C cold air intake systems to stack performance gains across the entire intake and charge air tract
• No cutting or drilling required for installation
• Protected by Injen Technology's Limited Lifetime Warranty to the original purchaser against defects in material and workmanship

Specifications

• Part Number: SES9301ICPWB
• Series: SES (Intercooler Charge Pipes)
• Application: 2021-2024 Ford Bronco V6-2.7L Twin Turbo EcoBoost
• System Type: Complete Charge Pipe Kit (Hot Side + Cold Side)
• Pipe Material: 6061-T6 Aluminum
• Pipe Diameter: 2.75" OD
• Pipe Construction: Mandrel-Bent
• Y-Pipe: Precision Cast Aluminum
• Flanges: CNC Machined Quick-Connect Adapter (OE-Style)
• Finish: Wrinkle Black Powdercoat
• Dyno-Proven HP Gain: Up to +16 HP
• Dyno-Proven Torque Gain: Up to +17 lb-ft
• Compatible Injen Intakes: EVO9302 / EVO9302C
• CARB Status: Not CARB Exempt
• UPC: 843115029432
• Weight: 15.0 lbs
• Package Dimensions: 36" L x 13" W x 9" H
• Warranty: Limited Lifetime Warranty (original purchaser)

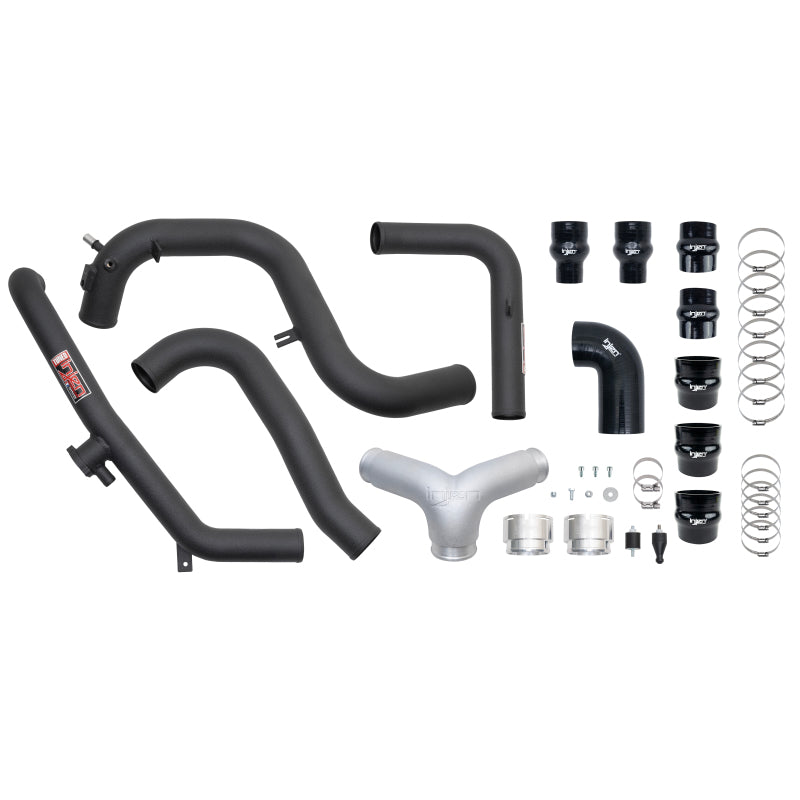

Included Components

• 1x Mandrel-Bent 6061-T6 Aluminum Hot-Side Charge Pipe (Wrinkle Black)
• 1x Mandrel-Bent 6061-T6 Aluminum Cold-Side Charge Pipe (Wrinkle Black)
• 1x Precision Cast Aluminum Y-Pipe
• CNC Machined Quick-Connect Adapter Flanges
• 1x Complete Hardware Kit (stainless steel band clamps, silicone couplers, and fasteners)
• 1x Installation Instructions

Product Description

The Injen SES9301ICPWB is a complete intercooler charge pipe kit engineered specifically for the 2021-2024 Ford Bronco equipped with the V6-2.7L Twin Turbo EcoBoost engine. It replaces both the hot-side and cold-side factory charge pipes - the entire charge air tract between the turbochargers, the intercooler, and the throttle body - delivering dyno-proven gains of up to 16 horsepower and 17 lb-ft of torque over the factory system. This is the wrinkle black version; the wrinkle red SES9301ICPWR is available for owners who prefer a contrasting underhood color.

The factory 2.7L EcoBoost Bronco charge pipes are a well-documented weak point on this platform. The OEM plastic and composite pipes are prone to cracking and splitting under the thermal cycling and mechanical stress that come with regular off-road use - a failure mode that is even more common on lifted or heavily modified Broncos. The SES9301ICPWB replaces these with oversized 2.75" 6061-T6 aluminum pipes that are mandrel-bent for a full inner diameter through every curve. The larger diameter reduces charge air restriction, increasing the volume and velocity of cooled air delivered to the engine on every boost event - a direct contributor to the dyno-proven power gains.

The engineering challenge unique to a twin-turbo setup like the 2.7L's is balanced flow from both turbocharger outlets through a single shared Y-point before the intercooler. Generic charge pipe kits often use a fabricated Y-section whose internal geometry creates uneven flow between banks, leading to power imbalances. Injen addressed this by casting the Y-Pipe as a single precision piece whose internal flow paths are engineered to equalize mass flow from both turbos for harmonized, consistent power delivery across the engine's RPM range. CNC machined quick-connect adapter flanges complete the installation by mimicking the factory connection interface exactly - making this a true bolt-on replacement with no cutting, welding, or fabrication required. Installed systems are non-returnable. Not CARB exempt. Made in Pomona, California and backed by Injen Technology's Limited Lifetime Warranty.
