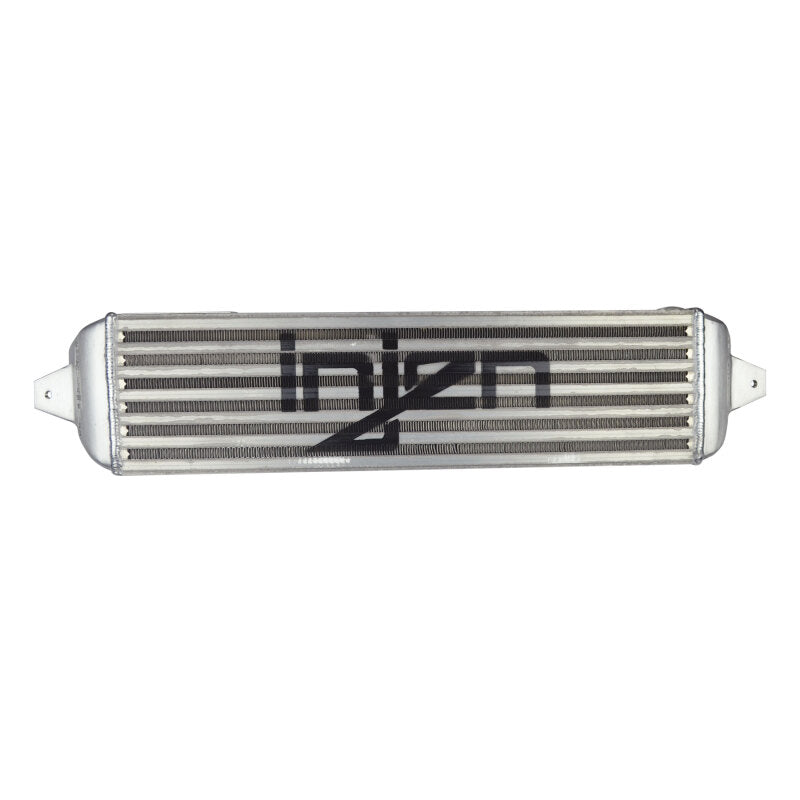

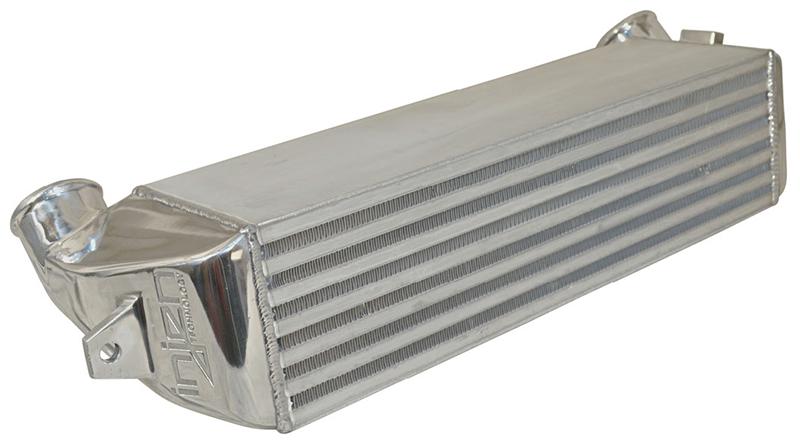

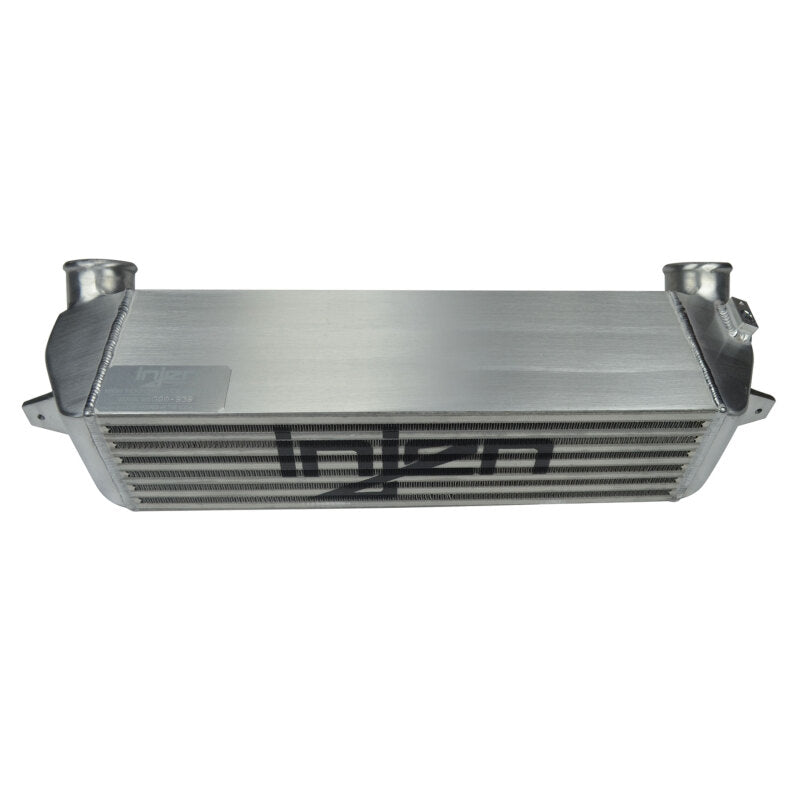

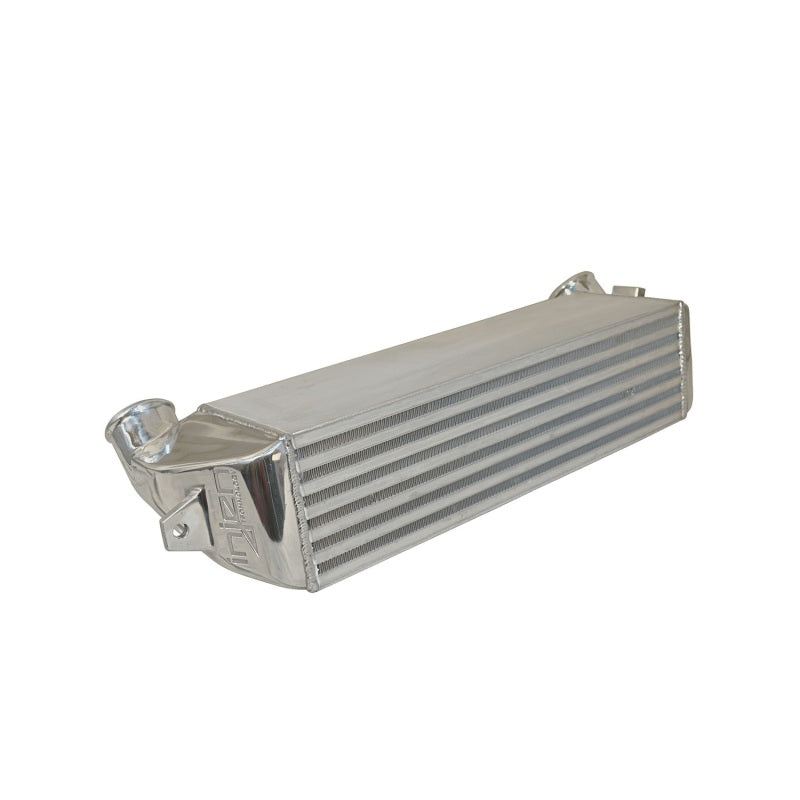

Injen FM9200I Front Mount Intercooler Bar Plate for 2015-2023 Ford Mustang 2.3L

Vehicle Fitment

• 2015-2023 Ford Mustang EcoBoost (L4-2.3L Turbocharged, All Trims, RWD)

Fitment Notes

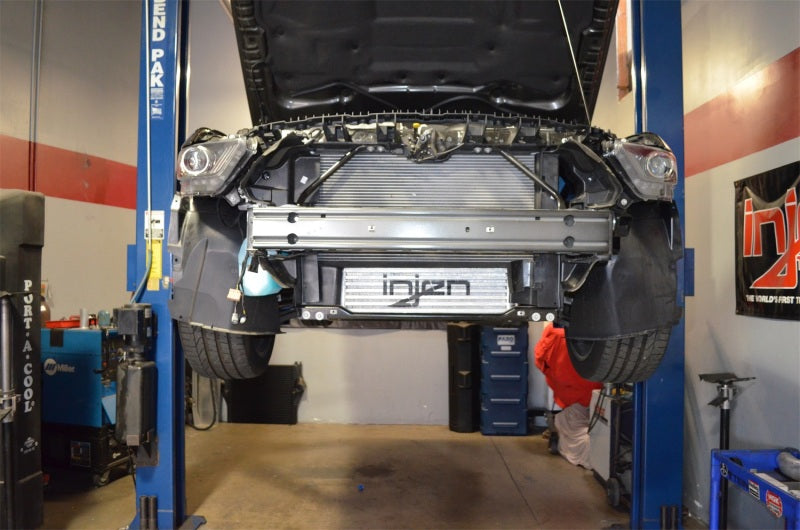

• Direct-fit replacement for the factory tube-and-fin intercooler - uses all factory mounting locations with no cutting, drilling, or modification required.
• Compatible with the factory intercooler piping or Injen SES aftermarket charge pipes (SES9200ICP, SES9200ICPWB, SES9200ICPWR - all sold separately).
• Not CARB exempt - not legal for sale or use in California or any state that has adopted California emissions standards.
• Designed to work with the stock ECU calibration - no tuning required.
• Note: Once installed, this intercooler is not eligible for return under any circumstances.

Features

• Dyno proven gains of up to 17 HP and 17 lb-ft of torque over the factory intercooler on the 2015-2023 Mustang EcoBoost 2.3L.
• Reduces charge air outlet temperatures by up to 50°F compared to the stock tube-and-fin unit, significantly reducing heat soak and the risk of detonation under sustained boost.

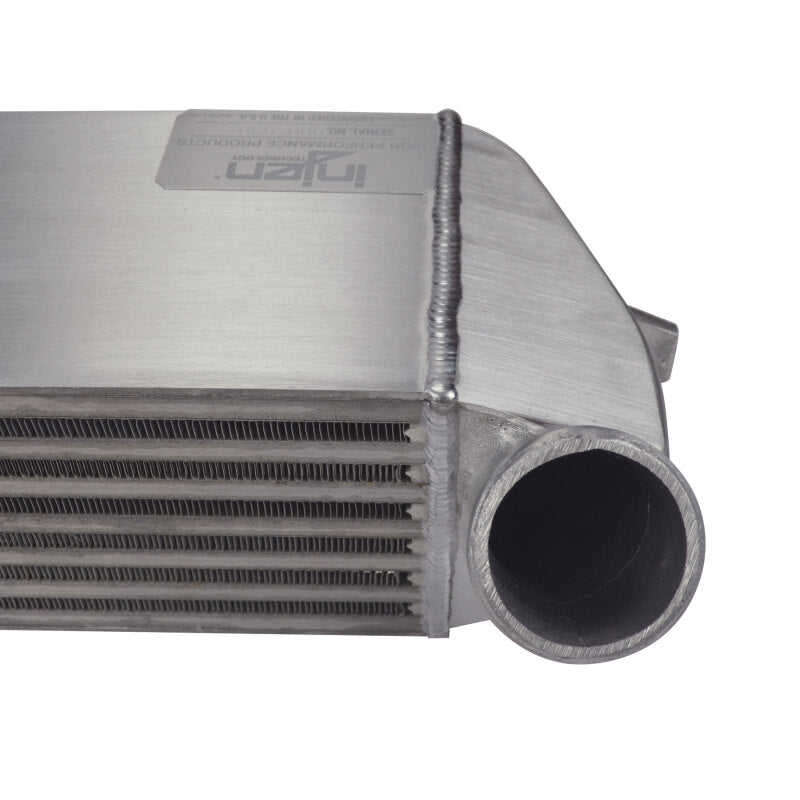

• TIG-welded bar-and-plate core construction dramatically increases core volume and heat dissipation efficiency over the OE tube-and-fin design.
• Cast aluminum end tanks with precision CNC-machined aluminum flanges provide a leak-free seal with both factory and aftermarket intercooler piping.
• Stock boost pressure is retained - pressure drop across the core is held within 0.5 psi of factory for consistent boost delivery.
• Increases throttle response and decreases turbo lag by supplying the turbo with cooler, denser charge air.
• Supports up to 550 HP - sized to accommodate significant future modifications beyond a stock power level.

Specifications

• Intercooler Type: Front Mount, Air-to-Air
• Core Design: TIG-Welded Bar-and-Plate (replaces OE tube-and-fin)
• Material: 100% 6061 Aluminum
• End Tanks: Cast Aluminum
• Flanges: Precision CNC-Machined Aluminum
• Finish: Brushed Silver Aluminum
• Core Dimensions: 21.06" x 5.75" x 5.28"
• Charge Air Temperature Reduction: Up to 50°F vs. stock
• Boost Pressure Drop: Within 0.5 psi of factory
• Maximum Supported Power: Up to 550 HP
• Dyno Proven Power Gains: Up to 17 HP / 17 lb-ft torque
• Tuning Required: No
• Emissions Legal: Not CARB Exempt
• Estimated Installation Time: Approximately 1 hour
• Manufactured in the USA
• Shipping Weight: 27 lbs
• Package Dimensions: 34" L x 17" W x 13" H

Included Components

• 1x TIG-Welded Bar-and-Plate Front Mount Intercooler Core with Cast End Tanks
• 2x Mounting Brackets
• 2x T-Bolt Clamps
• 1x Complete Hardware Kit

Product Description

The Injen FM9200I is a direct-fit front mount intercooler engineered specifically for the 2015-2023 Ford Mustang EcoBoost with the 2.3L turbocharged four-cylinder engine. The factory tube-and-fin intercooler is a well-documented weak point on the EcoBoost platform - its limited core volume leads to rapid heat soak under sustained boost, raising charge air temperatures and triggering ignition timing pulls that rob power and throttle response. Injen's FM9200I replaces it with a high-efficiency TIG-welded bar-and-plate core built from 100% 6061 aluminum, reducing charge air outlet temperatures by up to 50°F while delivering dyno-proven gains of up to 17 HP and 17 lb-ft of torque.

The intercooler installs directly onto the factory mounting locations with no cutting or drilling required, and its CNC-machined aluminum flanges accept both the factory charge pipes and Injen's SES intercooler pipe upgrades (sold separately). Boost pressure drop is held within 0.5 psi of stock for clean, consistent boost delivery. The unit is sized to support up to 550 HP, making it equally relevant for stock builds and future performance upgrades. Installation takes approximately one hour. Covered by Injen's Limited Lifetime Warranty - note that once installed, the intercooler cannot be returned.
