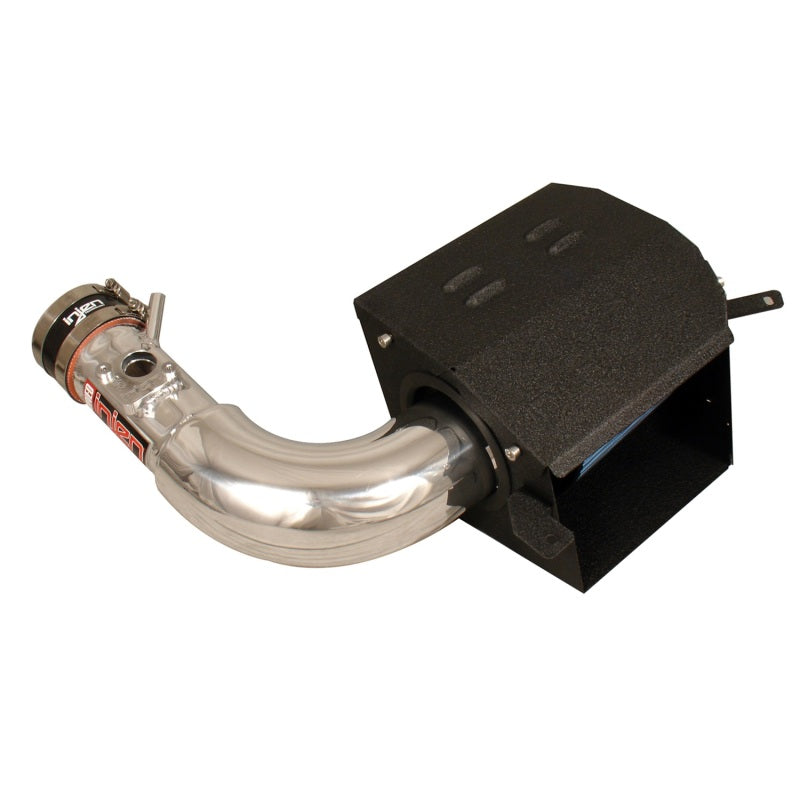

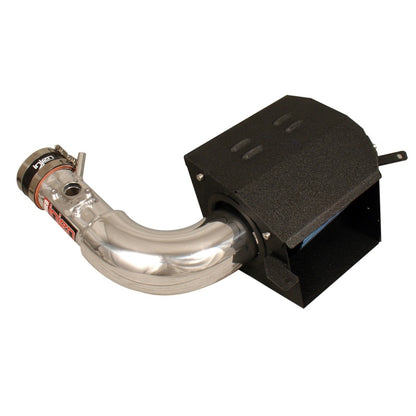

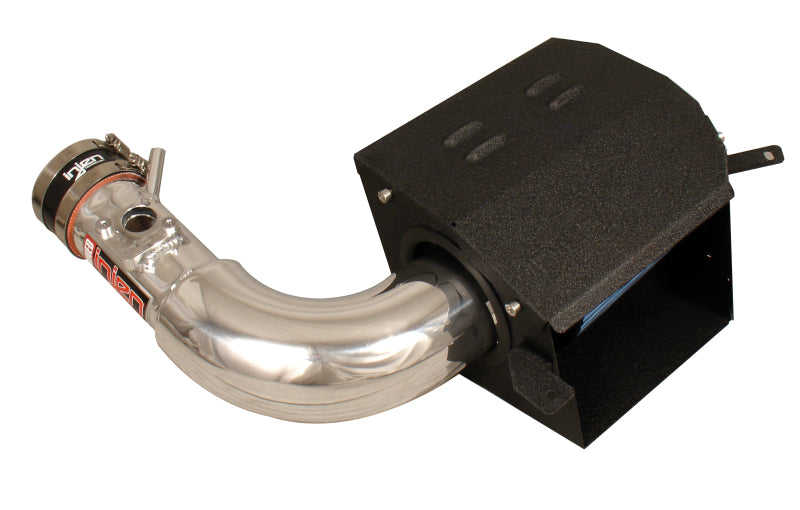

Injen SP1230P SP Series Short Ram Intake Polished BRZ FR-S Toyota 86 2013-2020

Vehicle Fitment

• 2013-2016 Scion FR-S (ZN6, 2.0L FA20 H4, RWD) - All Trims
• 2013-2020 Subaru BRZ (ZC6, 2.0L FA20 H4, RWD) - All Trims
• 2017-2020 Toyota 86 (ZN6, 2.0L FA20 H4, RWD) - All Trims

Fitment Notes

• Fits Gen 1 ZN6/ZC6 platform (FA20 engine) only - does NOT fit 2022+ GR86 or 2022+ Subaru BRZ (Gen 2 / FA24 engine)
• No ECU tune required - Injen MR and Air Fusion Technologies maintain safe A/F ratios throughout the powerband
• CARB EO #: D-476-8 - applies to 2013-2014 model years only; 2015-2020 models are not CARB-exempt under this EO
• Replacement air filter part number: X-1021-BB
• Optional hydroshield: part number 1037BLK (black) or 1037RED (red)
• Also available in Wrinkle Black (SP1230WB) and Wrinkle Red (SP1230WR)

Features

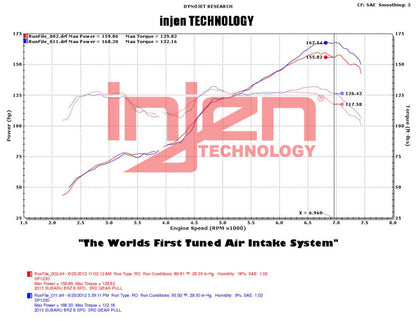

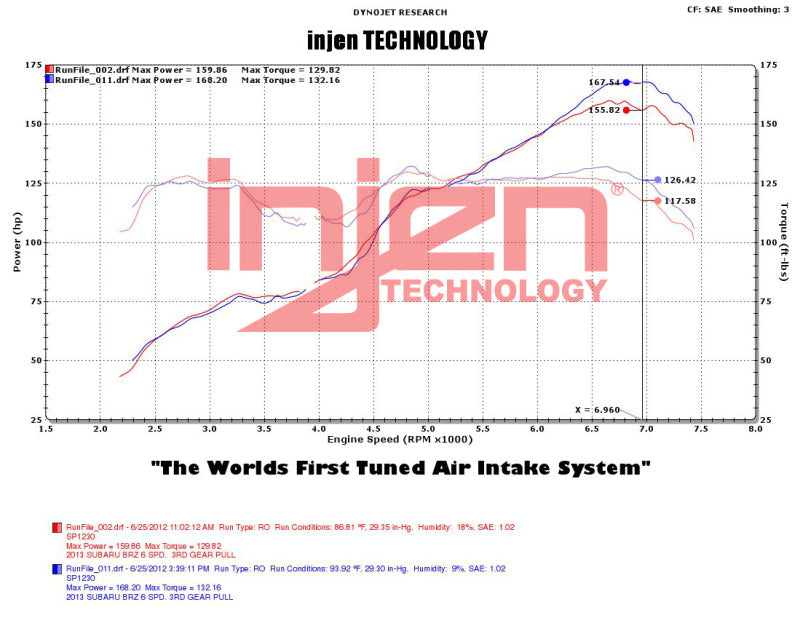

• Dyno-proven gains of up to 12 hp and 9 lb-ft of torque - no tune required
• Features Injen's patented MegaRam (MR) Technology - the world's first tuned intake system (Patents 7,359,795 and 7,669,571)
• Features Injen's patented Air Fusion Technology for optimized airflow tuning (Patents 7,757,548 and 7,721,699)
• Includes a custom-designed heat shield to isolate the filter from engine heat for cooler, denser intake air
• 6061-T6 aluminum intake tubing with smooth, unrestricted mandrel-bent path for maximum airflow efficiency
• Injen SuperNano-Web dry air filter - fully serviceable, reusable, no oiling required
• Aggressive induction tone under full throttle for an enhanced driving experience
• Made in Pomona, California, USA - backed by Injen Technology's Limited Lifetime Warranty

Specifications

• Series: SP (Short Ram / Cold Air)
• Finish: Polished (silver)
• Filter Color: Blue
• Tube Material: 6061-T6 aluminum
• Filter Type: Injen SuperNano-Web dry air filter
• Replacement Filter: X-1021-BB
• Power Gains: Up to +12 hp / +9 lb-ft of torque (dyno proven)
• Technologies: Patented MR Technology + Air Fusion Technology
• CARB EO #: D-476-8 (2013-2014 model years only)
• Heat Shield: Included (custom fit for this application)
• Tune Required: No
• Weight: 15.0 lbs
• Package Dimensions: 26" L x 13" W x 9" H
• Country of Origin: USA (Pomona, California)

Included Components

• 1x Polished 6061-T6 Aluminum Short Ram Intake Tube
• 1x Injen SuperNano-Web Dry Air Filter (Blue)
• 1x Custom Heat Shield (application-specific)
• 1x Hardware and Installation Kit
• 1x Detailed Installation Instruction Guide

Product Description

The Injen SP1230P SP Series Short Ram Intake is Injen's flagship intake system for the 2013-2016 Scion FR-S, 2013-2020 Subaru BRZ, and 2017-2020 Toyota 86 on the Gen 1 ZN6/ZC6 platform. As the world's first tuned intake system, the SP Series incorporates Injen's patented MR Technology and Air Fusion Technology to deliver dyno-proven gains of up to 12 hp and 9 lb-ft of torque without requiring any ECU tuning. The included custom heat shield isolates the filter from engine heat, ensuring a consistent supply of cooler, denser air under all driving conditions.

Built from 6061-T6 aluminum with TIG-welded bracketry and a polished finish, the SP1230P combines function with clean engine bay aesthetics. The SuperNano-Web dry air filter is fully serviceable with no oiling required, and an optional hydroshield is available for wet-weather protection. CARB EO# D-476-8 applies to 2013-2014 model years. Note: this intake is designed for Gen 1 (FA20) applications only and does not fit the 2022+ GR86 or second-generation BRZ with the FA24 engine.
