Injector Dynamics 1050.48.14.14.4 ID1050x Fuel Injectors for 06-11 Honda Civic

Vehicle Fitment

• 2006-2011 Honda Civic Si (2.0L K20, 4WD)
• 2006-2009 Honda S2000 (F22C, RWD)
• 2004-2010 Acura TSX (2.4L K24, FWD)
• 2002-2006 Acura RSX (2.0L K20, FWD)
• 2002-2005 Honda Civic SiR (2.0L K20, 4WD)

Features

• Nominal flow rate of 1065cc/min at 3.0 bar (43.5 psi) using gasoline at 52°C (125°F)
• Corrosion-resistant internals compatible with all known fuels
• Compact 48mm body length for fitment in over 200 applications
• Improved internal flow path increases output by 5% without sacrificing low flow performance
• Stronger magnetic circuit offers stable operation up to 10 bar
• Replaceable inlet filter extends service life
• High impedance injector, no resistor box required
• Available with Plug'n'Play adapters for US-OBD2 applications

Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi) using gasoline at 52°C (125°F)
• Maximum Differential Fuel Pressure: 10.0 bar (145.0 psi)
• Fuel Compatibility: Compatible with all known fuels
• Electrical Connector: USCAR
• Injector Length: 48mm (measured from o-ring to o-ring)
• Inlet O-ring: 14mm diameter
• Outlet O-ring: 14mm diameter

Included Components

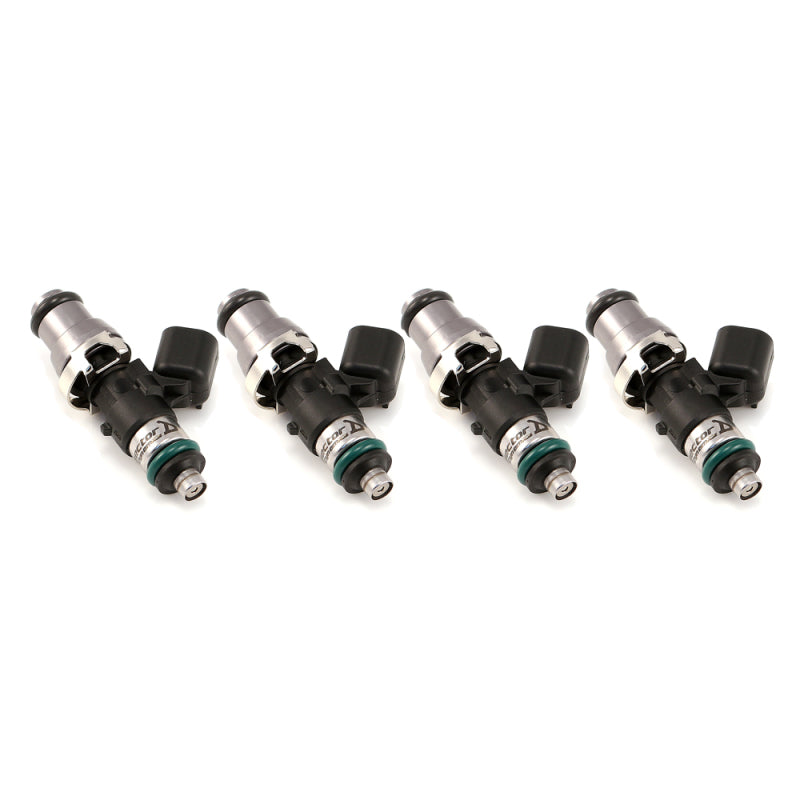

• 4x Injector Dynamics ID1050x Fuel Injectors (1050.48.14.14.4)
• 1x Set of 4 USCAR Plug'n'Play Adapters (optional)

Product Description

The Injector Dynamics 1050.48.14.14.4 ID1050x Fuel Injectors are designed for high-performance applications requiring precise fuel delivery. With a nominal flow rate of 1065cc/min at 3.0 bar using gasoline at 52°C, these injectors provide optimal performance for engines like the 2006-2011 Honda Civic Si and the 2002-2006 Acura RSX. The compact 48mm body length allows fitment in over 200 applications, including current and future engines utilizing short body injectors.

Featuring corrosion-resistant internals, the ID1050x injectors are compatible with all known fuels, ensuring extended service life even with corrosive fuels. The improved internal flow path increases output by 5% without sacrificing low flow performance, while the stronger magnetic circuit offers stable operation up to 10 bar. The replaceable inlet filter extends service life, and the high impedance design eliminates the need for a resistor box.

These injectors are available with optional Plug'n'Play adapters for US-OBD2 applications, facilitating easy installation. Whether you're upgrading your fuel system for increased power or replacing worn-out injectors, the Injector Dynamics ID1050x Fuel Injectors offer reliability and performance for your high-performance engine.
