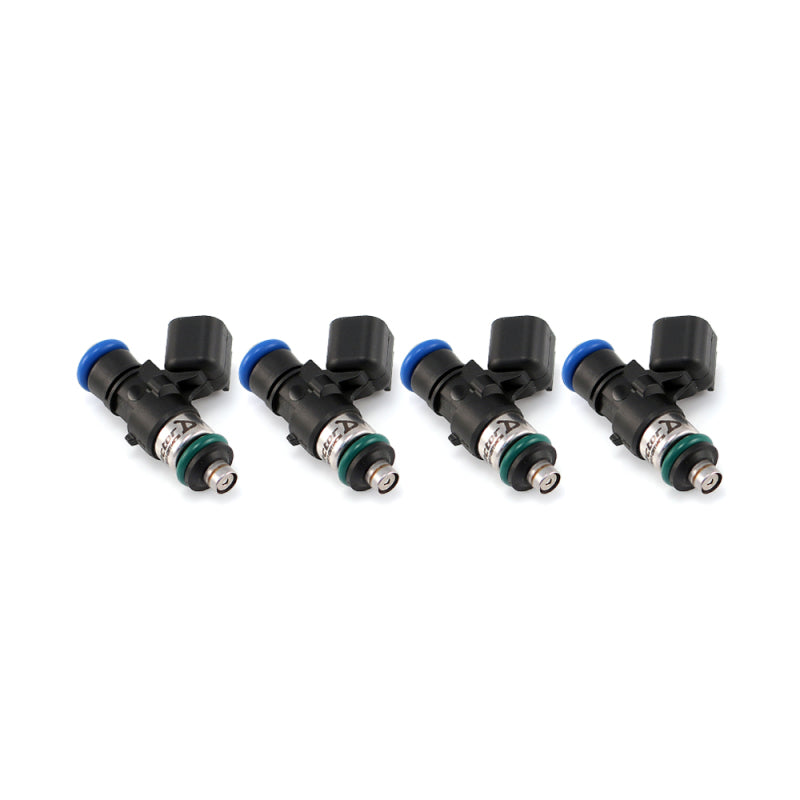

InjectorDynamics 1050.34.14.14.4 ID1050x 4-Injectors for Audi/VW EA888 Gen3

Vehicle Fitment

• 2015-2021 Volkswagen Golf Mk7 / Mk7.5 GTI 2.0T TSI
• 2015-2021 Volkswagen Golf Mk7 / Mk7.5 R 2.0T TSI
• 2015-2019 Volkswagen Golf Mk7 SportWagen 2.0T TSI
• 2017-2019 Volkswagen Golf Alltrack 2.0T TSI
• 2019+ Volkswagen Jetta GLI 2.0T TSI
• 2019+ Volkswagen Arteon 2.0T TSI
• 2018+ Volkswagen Atlas 2.0T TSI
• 2018+ Volkswagen Tiguan Mk2 2.0T TSI
• 2015-2020 Audi A3 8V 2.0T TFSI
• 2015-2020 Audi S3 8V 2.0T TFSI
• 2017+ Audi A4 B9 2.0T TFSI
• 2018+ Audi A5 B9 2.0T TFSI
• 2019+ Audi A6 C8 2.0T TFSI
• 2019+ Audi Q3 F3 2.0T TFSI
• 2018+ Audi Q5 FY 2.0T TFSI
• 2016+ Audi Q7 4M 2.0T TFSI
• 2016+ Audi TT 8S 2.0T TFSI
• 2015+ Porsche Macan 2.0T
• 2022+ Polaris RZR Pro R (using OEM or Injector Dynamics fuel rail)

Fitment Notes

• EA888 Gen 3 engines only -- does NOT fit EA888 Gen 1 or Gen 2
• Direct replacement -- no adapters required
• Polaris Pro R: reuse OEM injector retainer clips if using OEM rail
• USCAR connector -- choose Clips & Pins or Pigtails at checkout
• US-Denso plug-and-play adapter available as an upgrade option
• ECU tuning required after installation
• Set of 4

Features

• ID1050-XDS -- evolution of the ID1050x, latest X-Series offering
• Dual Slope Matching -- matched in both linear and nonlinear operating range
• Superior cylinder-to-cylinder consistency at low pulse widths
• Compatible with all known fuels -- gasoline, E85, methanol, ethanol
• Corrosion-resistant internals -- extended service life with corrosive fuels
• Stronger magnetic circuit -- stable operation up to 10 bar
• Only 8V required for consistent operation at 8 bar
• Compact 34mm body -- fits 200+ applications
• Replaceable inlet filter -- extends service life
• Built-to-spec motorsport injector -- Injector Dynamics / Bosch Motorsport

Specifications

• Series: ID1050-XDS
• Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi)
• Max Differential Fuel Pressure: 10.0 Bar (145.0 psi)
• Body Length: 34mm
• Top O-Ring: 14mm (no adapter)
• Bottom O-Ring: 14mm
• Electrical Connector: USCAR
• Fuel Compatibility: All known fuels
• Quantity: Set of 4
• MPN: 1050.34.14.14.4

Included Components

• 4x ID1050-XDS fuel injectors
• Injector Dynamics injector characterization data

Product Description

The Injector Dynamics 1050.34.14.14.4 is a set of four ID1050-XDS fuel injectors for Audi/VW EA888 Gen 3 2.0T TSI/TFSI applications and the Polaris RZR Pro R. EA888 Gen 3 vehicles include the Mk7/Mk7.5 Golf GTI and R, Audi A3, S3, A4, A5, A6, Q3, Q5, Q7, TT, Porsche Macan, VW Arteon, Atlas, Tiguan, and Jetta GLI. These are built-to-spec motorsport injectors from the Injector Dynamics and Bosch Motorsport partnership -- not modified production components.

The ID1050-XDS improves on the ID1050x with Dual Slope Matching, providing better cylinder-to-cylinder consistency in both the linear and nonlinear operating ranges -- critical for smooth idle and cruise on E85 and ethanol blends. Corrosion-resistant internals ensure compatibility with all known fuels. The compact 34mm body requires no adapters and fits the EA888 Gen 3 fuel rail and Polaris Pro R fuel rail directly. ECU tuning is required. Connector type (Clips & Pins or Pigtails) is selected at checkout.
