Injector Dynamics ID F750 Performance Fuel Filter 750L/H Billet Aluminum

Vehicle Fitment

• Universal -- SAE -8 O-Ring Barb connection

Fitment Notes

• Sized to properly filter for ID1050XDS and ID1300XDS injectors
• Compatible with any SAE -8 fuel system, not limited to ID injectors
• Mounting bracket and hardware included
• Optional Bosch pressure/temperature sensor compatible
• Replaceable filter element

Features

• Meets Bosch OE filter specification
• Meets strict OE filter requirements
• Protects electronic fuel injectors from micron-level wear
• Complete billet aluminum construction
• Spin-on filter housing
• Safety latch prevents housing spin-off
• Delta P visual pressure differential indicator
• Standard Schrader valve included
• O-ring sealed spin-on barb
• Usable for pressure monitoring, draining, or relief
• Low flow restriction design
• High contaminant holding capacity

Specifications

• Nominal flow rate: 750 l/h @ 7.5 kPa (1.1 psi)
• High flow rate: 1000 l/h @ 13 kPa (1.9 psi)
• Max fuel pressure: 10.0 Bar (145.0 psi)
• Fuel compatibility: All known fuels
• Fluid connection: SAE -8 O-Ring Barb
• Filter efficiency: 87% capture at 5 microns
• Filter efficiency: 100% capture at 35 microns
• Contaminant capacity: 5 grams
• Weight: 700g

Included Components

• 1x ID F750 Fuel Filter
• Modular mounting bracket
• Mounting hardware
• Barb fitting

Product Description

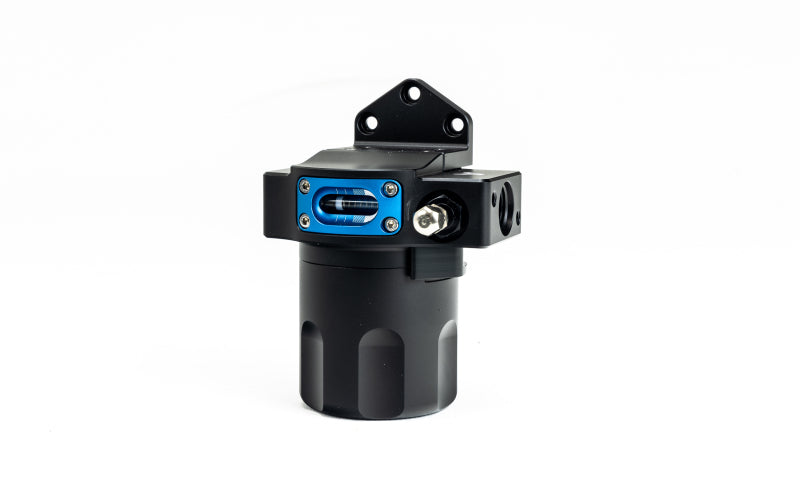

The Injector Dynamics ID F750 is the first performance fuel filter engineered to meet Bosch's strict OE specification for electronic fuel injectors, built to protect precision injector components from the micron-level particulates that accelerate wear or cause outright failure. At a nominal flow rate of 750 l/h, it captures a minimum of 87% of particles at 5 microns and 100% at 35 microns and larger, holding up to 5 grams of contaminant -- about a teaspoon -- before a filter change is needed.

Complete billet aluminum construction houses a replaceable filter element behind a spin-on base with a safety latch, so the housing can't work loose under vibration but still releases with a single finger for quick servicing. A Delta P visual indicator shows the filter element's condition at a glance, while a standard Schrader valve and o-ring sealed spin-on barb double as a pressure monitoring, draining, or relief point during filter changes.

Rated to 10.0 Bar (145.0 psi) max pressure and compatible with all known fuels, the F750 uses a universal SAE -8 O-ring barb connection, ships with a modular mounting bracket and hardware for a ready-to-install kit, and is sized to properly protect a set of ID1050XDS or ID1300XDS injectors. An optional Bosch pressure and temperature sensor attachment is also supported for those tracking fuel system data.
