Injector Dynamics 1300.60.14.14W.8 ID1300-XDS for 11-23 Ford F-150

Vehicle Fitment

• 2011-2023 Ford F-150 (5.0L V8 Coyote, Gen 5 Whipple supercharger applications)
• Engine: 5.0L V8 Coyote
• Induction requirement: Gen 5 Whipple supercharger-equipped applications
• Configuration-specific fitment for the 60mm / 14mm / W-adapter injector package
• Drivetrains: RWD, 4WD where used with the compatible 5.0L Whipple setup
• Fitment pattern matches the corresponding W-configuration Ford F-150 Whipple package, but I was only able to directly confirm this exact part number from Injector Dynamics product indexing during this run.
• Fitment confirmed through 2023. 2024-2025 coverage unconfirmed at time of listing.
• Do not assign this part number to naturally aspirated, EcoBoost, or non-Whipple applications unless injector length, rail spacing, adapters, and calibration are separately verified.

Features

• ID1300-XDS injector set using Injector Dynamics X-Series technology
• Dual Slope Matching for improved cylinder-to-cylinder fuel delivery consistency
• Higher-flow injector option for high-output boosted applications
• Compact short-body design for demanding fitment packages
• High-impedance design compatible with modern engine management systems
• Compatible with all known automotive fuels
• Corrosion-resistant internal components for extended durability
• Improved magnetic circuit for stable operation at elevated pressure
• Replaceable inlet filters for serviceability
• Matched set of 8 injectors for V8 applications

Specifications

• Part Number: 1300.60.14.14W.8
• Product Line: ID1300-XDS
• Injector Quantity: 8x injectors
• Electrical Connector: USCAR
• Fuel Compatibility: Compatible with all known automotive fuels
• Injector Length: 60 mm
• Top Adapter: 14 mm
• Configuration: W-adapter package
• Design Family: X-Series
• Application Type: High-performance port fuel injector set

Included Components

• 8x Injector Dynamics ID1300-XDS fuel injectors

Product Description

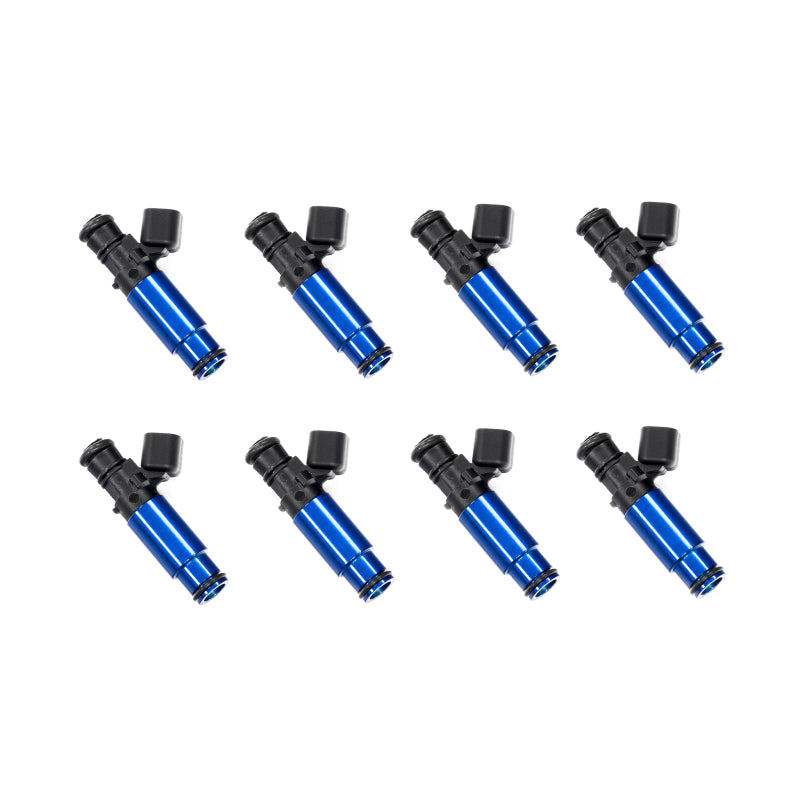

The Injector Dynamics 1300.60.14.14W.8 ID1300-XDS is a matched set of 8 high-flow performance fuel injectors built on Injector Dynamics' X-Series platform. This 60mm, 14mm, W-adapter configuration is intended for specific Ford 5.0L Coyote applications using a Gen 5 Whipple supercharger arrangement, where injector body length, adapter style, rail spacing, and calibration data all need to align with the forced-induction fuel system.

Like other X-Series injectors, the ID1300-XDS is designed for strong fuel compatibility, stable operation, and precise cylinder-to-cylinder matching. It uses Injector Dynamics' Dual Slope Matching approach along with a compact body design, high-impedance operation, corrosion-resistant internals, and replaceable inlet filters. This makes it a strong option for high-output boosted builds that need more injector headroom than the ID1050-XDS while retaining good tuning behavior.

This product does not change vehicle ride height, so no front or rear lift/drop height applies. Because I could not fully cross-open the manufacturer application page during this run, this listing should be treated as fitment-confirmed through the known Ford F-150 Gen 5 Whipple configuration pattern only after final manual catalog verification. 2024-2025 coverage remains unconfirmed at time of listing.
