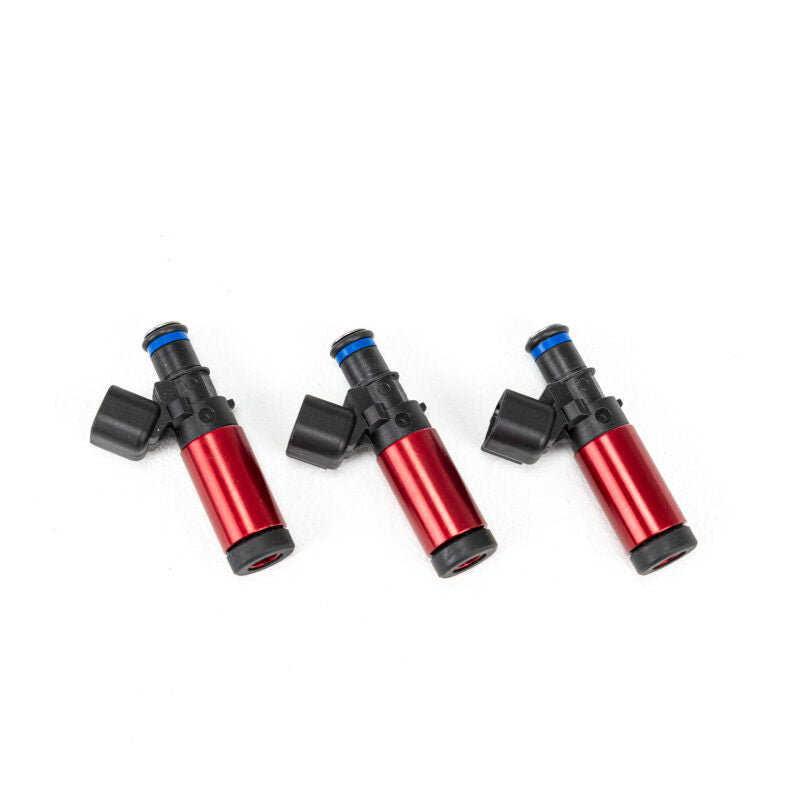

Injector Dynamics 1300.55.11.D.3 ID1300-XDS 55mm Fuel Injectors Set of 3

Vehicle Fitment

• Universal application for fuel systems requiring 55mm fuel injectors with an 11mm machined top and 34.55mm Denso-style lower adapter.
• Compatible with select Toyota GR Corolla (2023-2026, G16E-GTS 1.6L Turbo I3) and Toyota GR Yaris (2020-2026, G16E-GTS 1.6L Turbo I3) utilizing this injector configuration.

Fitment Notes

• This is a configuration-specific injector set and is not universally vehicle-specific.
• Verify injector length, upper bore, lower adapter, electrical connector, and ECU compatibility before ordering.
• Professional ECU calibration is required after installation.
• Supplied as a matched set of three injectors for 3-cylinder engine applications.

Features

• Genuine Injector Dynamics ID1300-XDS fuel injectors.
• Bosch Motorsport-developed XDS injector technology.
• Nominal flow rate of approximately 1335 cc/min at 3.0 bar (43.5 psi).
• 55mm overall injector length.
• 11mm machined top inlet configuration.
• 34.55mm Denso-style lower adapter.
• Excellent low pulse-width control for smooth idle and drivability.
• Compatible with gasoline, E85, methanol, and other known performance fuels.
• Individually flow-matched and dynamically characterized.
• Corrosion-resistant internal components for long service life.

Specifications

• Brand: Injector Dynamics
• Part Number: 1300.55.11.D.3
• Series: ID1300-XDS
• Flow Rate: 1335 cc/min @ 3.0 bar (43.5 psi)
• Injector Length: 55mm
• Top Configuration: 11mm Machined
• Lower Configuration: 34.55mm Denso-Style Adapter
• Electrical Connector: USCAR
• Fuel Compatibility: Gasoline, E85, Methanol, and compatible racing fuels
• Quantity: 3 Fuel Injectors

Included Components

• 3x Injector Dynamics ID1300-XDS Fuel Injectors
• 1x Matched Flow Data Sheet

Product Description

The Injector Dynamics 1300.55.11.D.3 ID1300-XDS injector kit is engineered for high-performance three-cylinder applications requiring a 55mm injector body with an 11mm machined top and 34.55mm Denso-style lower adapter. Developed in partnership with Bosch Motorsport, the ID1300-XDS delivers exceptional fuel delivery accuracy, excellent idle quality, and the high flow capacity required for turbocharged and motorsport applications.

Each injector is individually characterized and supplied as a precision flow-matched set to simplify ECU calibration and ensure consistent cylinder-to-cylinder fuel delivery. Compatible with gasoline, ethanol blends including E85, methanol, and other compatible performance fuels, this injector set is ideal for demanding street, track, and competition vehicles. Always verify injector dimensions and connector compatibility before installation.
