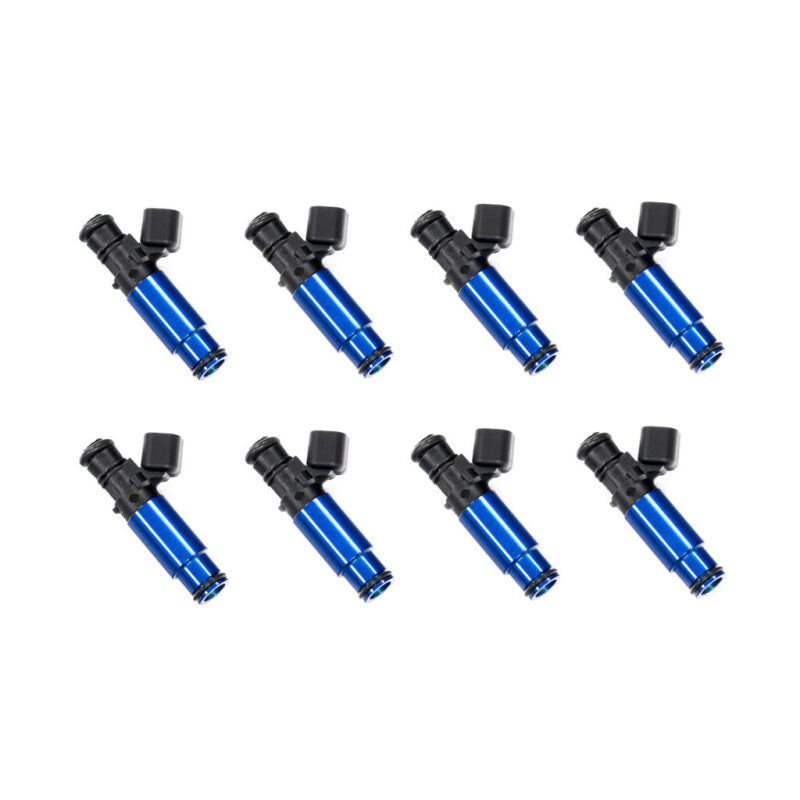

Injector Dynamics 1050.60.14.14W.8 ID1050-XDS for 11-23 Ford F-150

Vehicle Fitment

• 2011-2023 Ford F-150 (5.0L V8 Coyote, Gen 5 Whipple supercharger applications)
• Engine: 5.0L V8 Coyote
• Induction requirement: Gen 5 Whipple supercharger-equipped applications
• Configuration-specific fitment for the 60mm / 14mm / W-adapter injector package
• Fitment confirmed through 2023 by Injector Dynamics product data and cross-validated with trusted performance retailers listing this exact part number for 2011-2023 F-150 Gen 5 Whipple applications.
• Drivetrains: RWD, 4WD where used with the compatible 5.0L Whipple setup
• Fitment confirmed through 2023. 2024-2025 coverage unconfirmed at time of listing.
• Do not assign this part number to naturally aspirated, EcoBoost, or non-Whipple applications unless injector length, rail spacing, adapters, and calibration are separately verified.

Features

• ID1050-XDS injector set using Injector Dynamics X-Series technology
• Dual Slope Matching for improved cylinder-to-cylinder fuel delivery consistency
• Nominal 1065 cc/min flow capacity for high-output street and motorsport builds
• Compact short-body design for demanding fitment packages
• High-impedance design compatible with modern engine management systems
• Compatible with all known automotive fuels
• Corrosion-resistant internal components for extended durability
• Improved magnetic circuit for stable operation at higher pressure
• Replaceable inlet filters for serviceability
• Matched set of 8 injectors for V8 applications

Specifications

• Part Number: 1050.60.14.14W.8
• Product Line: ID1050-XDS
• Injector Quantity: 8x injectors
• Nominal Flow Rate: 1065 cc/min at 3.0 bar (43.5 psi) using gasoline at 52°C (125°F)
• Maximum Differential Fuel Pressure: 10.0 bar (145.0 psi)
• Electrical Connector: USCAR
• Fuel Compatibility: Compatible with all known fuels
• Injector Length: 60 mm
• Top Adapter: 14 mm
• Configuration: W-adapter package for Gen 5 Whipple 5.0L Coyote F-150 applications

Included Components

• 8x Injector Dynamics ID1050-XDS fuel injectors

Product Description

The Injector Dynamics 1050.60.14.14W.8 ID1050-XDS is a matched set of 8 performance fuel injectors configured for 2011-2023 Ford F-150 trucks equipped with the 5.0L Coyote V8 and a Gen 5 Whipple supercharger system. This is a configuration-specific injector package, not a generic universal injector listing, so the 60mm body, 14mm top adapter, and W-series arrangement must match the intended fuel rail and manifold setup.

Built on Injector Dynamics' X-Series platform, the ID1050-XDS uses Dual Slope Matching to improve fuel delivery accuracy in both linear and non-linear operating ranges. Additional technical advantages include 1065 cc/min nominal flow at 3.0 bar, high-impedance operation, compatibility with all known fuels, replaceable inlet filters, and stable operation at up to 10.0 bar differential pressure. These characteristics make it a strong choice for boosted Coyote combinations that require dependable fueling and repeatable calibration data.

This product does not change vehicle ride height, so no front or rear lift/drop height applies. Before installation, verify exact supercharger generation, injector connector type, rail spacing, manifold compatibility, and ECU calibration requirements. Fitment is confirmed through 2023 for Gen 5 Whipple 5.0L F-150 applications; 2024-2025 coverage was not confirmed for this exact part number at time of listing.
