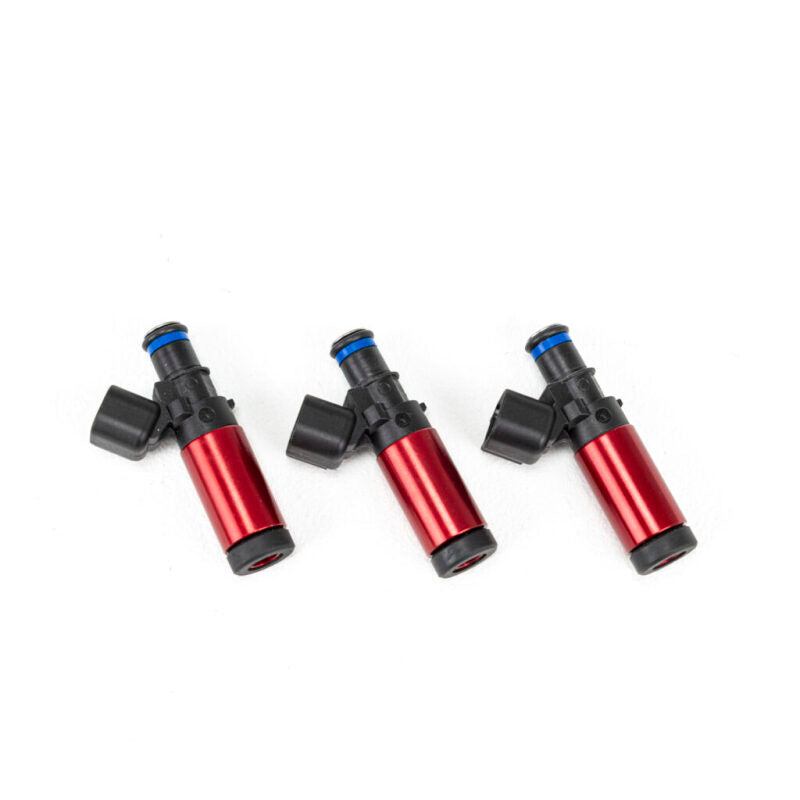

Injector Dynamics 1050.55.11.D.3 ID1050-XDS 55mm Fuel Injectors Set of 3

Vehicle Fitment

• Universal application for fuel systems requiring 55mm injectors with an 11mm machined top and 34mm lower Denso-style adapter.
• Compatible with select Toyota GR Yaris (XPA16) and Toyota GR Corolla (GZEA14) applications using the specified injector configuration.

Fitment Notes

• This is a configuration-specific injector set and is not universally vehicle-specific.
• Verify injector length, upper bore, lower adapter, electrical connector, and ECU calibration before installation.
• Intended for 3-cylinder engine applications requiring a set of three injectors.
• Professional ECU tuning is required after installation.

Features

• Genuine Injector Dynamics ID1050-XDS fuel injectors.
• Nominal flow rate of 1065 cc/min at 3.0 bar (43.5 psi).
• Bosch Motorsport-built X-Series injector design.
• Corrosion-resistant internals compatible with all known fuels.
• Stable operation at differential fuel pressures up to 10 bar.
• Excellent low pulse-width control for superior idle quality.
• Replaceable inlet filter for extended service life.
• Individually characterized and flow-matched injectors.

Specifications

• Brand: Injector Dynamics
• Part Number: 1050.55.11.D.3
• Series: ID1050-XDS
• Flow Rate: 1065 cc/min @ 3.0 bar (43.5 psi)
• Injector Length: 55mm
• Top Bore: 11mm Machined
• Lower Adapter: 34mm Denso-Style
• Electrical Connector: USCAR
• Maximum Differential Fuel Pressure: 10 bar (145 psi)
• Fuel Compatibility: Gasoline, E85, Methanol, and other known fuels
• Quantity: Set of 3

Included Components

• 3x Injector Dynamics ID1050-XDS Fuel Injectors
• 1x Flow Data Sheet
• 1x Matched Injector Set

Product Description

The Injector Dynamics 1050.55.11.D.3 ID1050-XDS injector kit is a premium set of three high-performance fuel injectors engineered for applications requiring a 55mm injector body, 11mm machined upper bore, and a 34mm Denso-style lower adapter. Developed in partnership with Bosch Motorsport, the ID1050-XDS provides exceptional fuel control, excellent idle quality, and precise flow consistency while supporting substantially increased horsepower.

Each injector is individually characterized and supplied as a matched set with detailed flow data to simplify ECU calibration and maximize engine performance. Compatible with gasoline, ethanol blends including E85, methanol, and other known fuels, the ID1050-XDS is ideal for high-performance street, track, and motorsport applications. Always verify injector dimensions and connector compatibility before installation.
