ICON 98564DJ Billet UCA w/ Delta Joint Pro for 2021-2025 Ford F-150 Raptor 4WD

Vehicle Fitment

• 2021-2025 Ford F-150 Raptor (Gen3, 3.5L V6 EcoBoost High Output, 4WD)
• 2021-2025 Ford F-150 Raptor R (Gen3, 5.2L Supercharged V8, 4WD)

Fitment Notes

• Designed specifically for Gen3 Ford F-150 Raptor platforms (2021-2025) only; does not fit 2017-2020 Gen2 Raptor.
• Compatible with up to 3" of front lift height.
• OEM wheels and tires fitment is retained.

Features

• CNC machined 6061 billet aluminum construction with satin anodized finish for lightweight strength.
• Patented Delta Joint PRO (U.S. Pat. 10,731,700) delivers 90° of full articulation - 14% more range than the standard Delta Joint - with zero bind.
• Delta Joint PRO features a chromoly ball with 56% more bearing surface than ICON's original Delta Joint for superior durability.

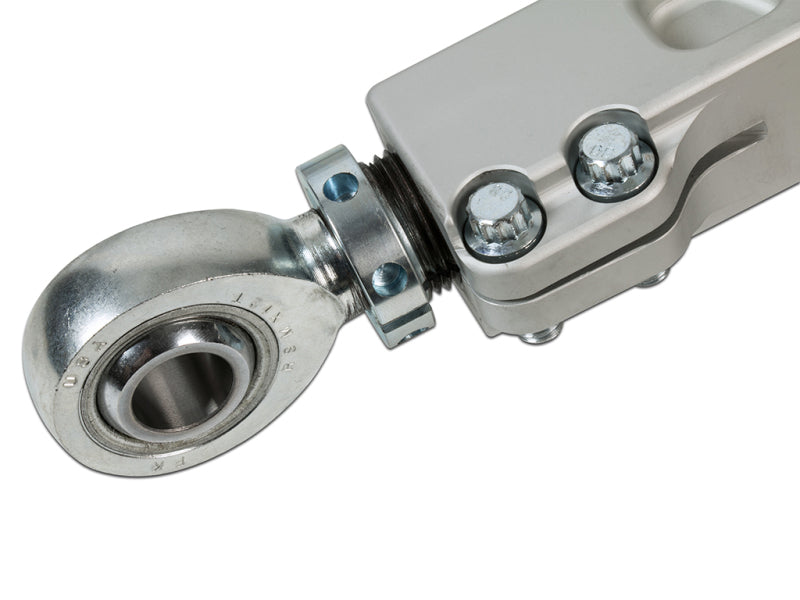

• FK Rod End 7/8" heim joints at chassis pivots for smooth, precise suspension function throughout the full range of travel.
• ICON double adjuster sleeve allows quick on-vehicle camber and caster adjustment without removal.
• Corrects front-end geometry for Gen3 Raptors running up to 3" of front lift.
• Built-in O-ring sealed dust cover cap protects the joint from contamination.

Specifications

• Position: Front Upper Control Arms (Left and Right)
• Material: 6061 Billet Aluminum (CNC Machined)
• Finish: Satin Anodized
• Joint Type: Delta Joint PRO - Chromoly Ball, Graphite-Impregnated Sintered Metal Races
• Chassis Pivot: FK Rod End 7/8" Heim Joint
• Adjustment: Dual-axis camber and caster via double adjuster sleeve
• Compatible Lift Range: Up to 3" front lift
• Shipping Weight: 9.02 lbs

Included Components

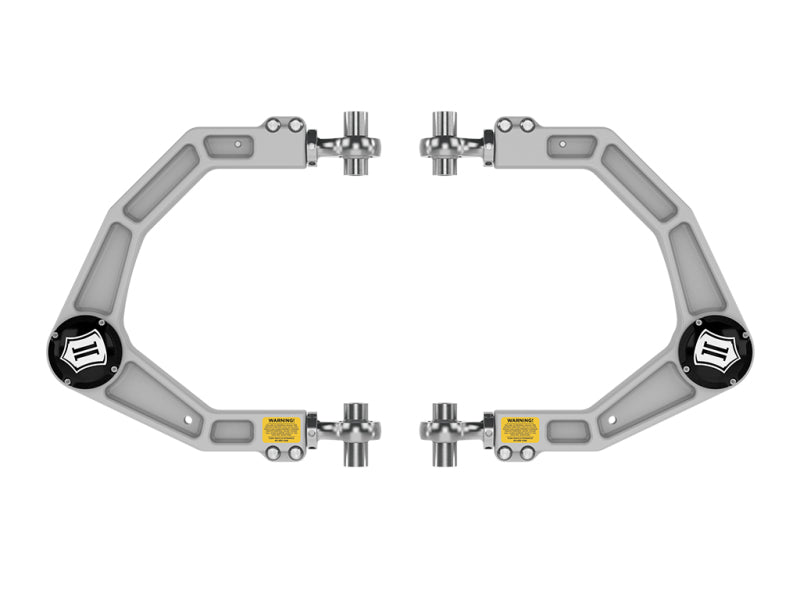

• 2x Billet Aluminum Upper Control Arms (Driver and Passenger)
• 2x Delta Joint PRO assemblies
• 1x Complete hardware kit for full installation

Product Description

The ICON 98564DJ Billet Upper Control Arm Kit is engineered specifically for the Gen3 Ford F-150 Raptor, correcting front-end geometry and restoring proper alignment when running up to 3" of front lift. Built from CNC machined 6061 billet aluminum, these UCAs replace the factory upper arms with a significantly stronger and more capable unit. The patented Delta Joint PRO eliminates suspension bind across the full range of droop and bump travel, making it ideal for both aggressive off-road use and daily driving.

On-vehicle camber and caster adjustment is made easy with ICON's signature double adjuster sleeve, reducing the need for repeated alignment shop visits after suspension changes. The Delta Joint PRO is fully serviceable and rebuildable, offering long-term value over non-serviceable OEM-style joints. All necessary hardware is included for a direct bolt-on installation, making this kit a complete front suspension upgrade for 2021-2025 Raptor and Raptor R owners seeking improved performance and durability.
