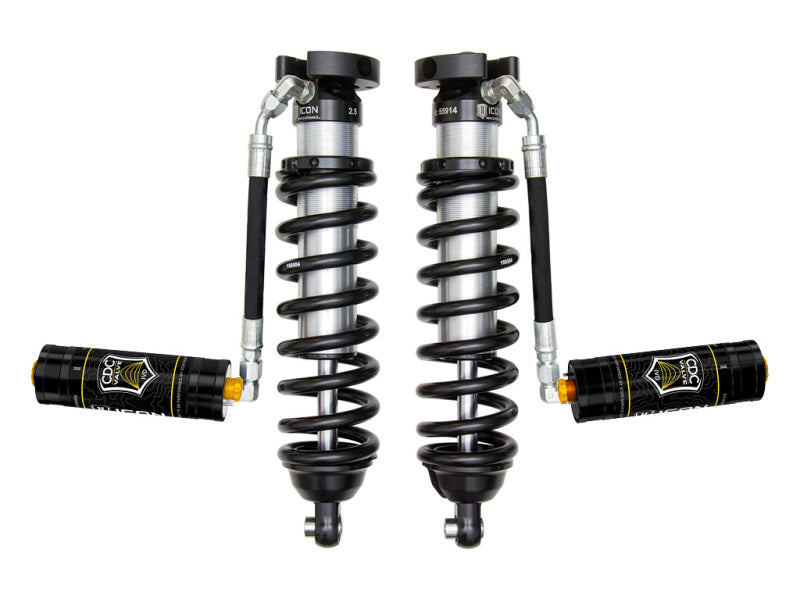

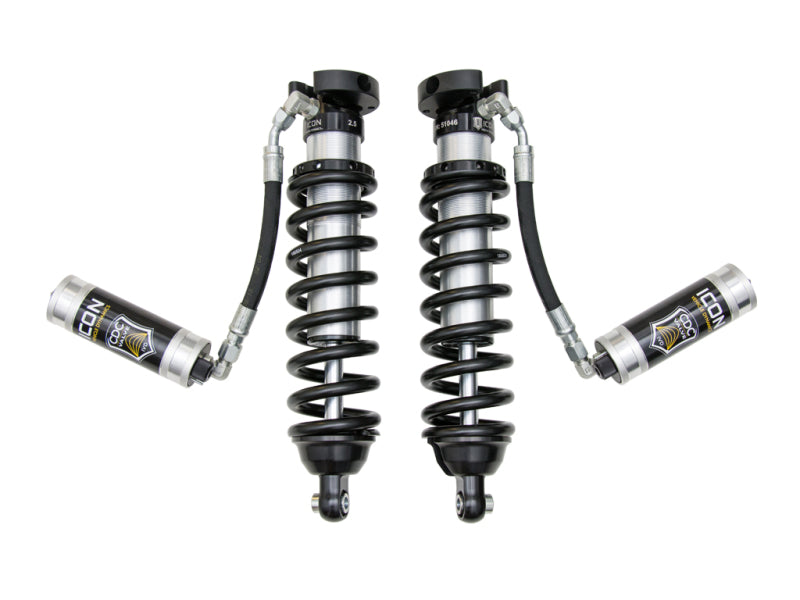

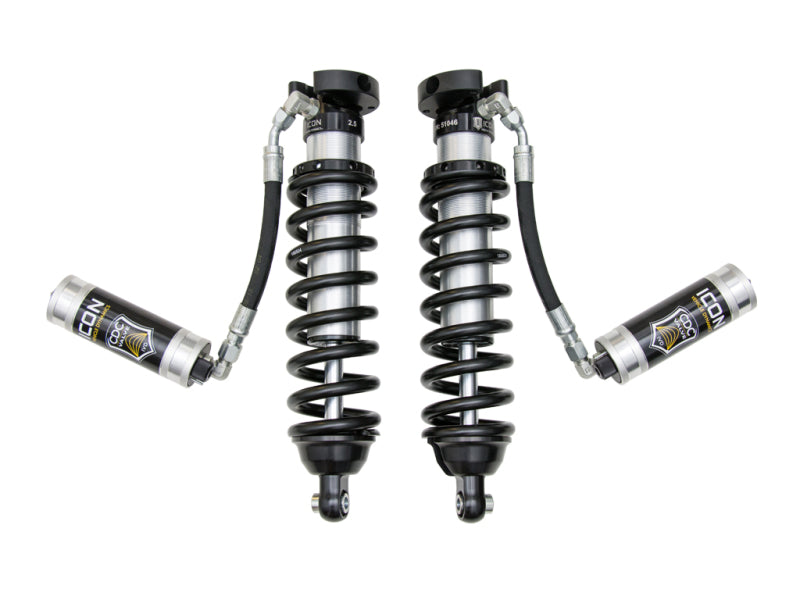

ICON 58715C 2.5 VS RR CDCV Coilover Kit w/Res for 96-04 Toyota Tacoma 4WD

Vehicle Fitment

• 1996-2004 Toyota Tacoma 4WD (2.7L I4, 3.4L V6)
• 1998-2004 Toyota Tacoma Prerunner (2.7L I4, 3.4L V6, RWD)

Fitment Notes

• Designed for 4WD and Prerunner models only
• Aftermarket front upper control arms required for installation
• Compatible with factory wheels and tires
• Recommended aftermarket wheels: 8.5" wide with 4.75" backspace
• Recommended tire size: 33" x 11.50" (larger sizes may require trimming)

Features

• Provides adjustable front lift height from 0 to 3 inches
• Extended travel design increases wheel articulation for off-road performance
• 2.5-inch diameter 6061 aluminum shock body for improved heat dissipation
• Remote reservoir with 10-position CDCV (Compression Damping Control Valve) for on-the-fly adjustability
• 7/8-inch chrome-plated steel shaft for strength and durability
• Vehicle-specific valving for optimized ride quality on and off-road
• Fully rebuildable and revalveable for long-term serviceability
• Compatible with OEM and most aftermarket suspension components

Specifications

• Lift Height: 0-3 inches (front)
• Shock Body Diameter: 2.5 inches
• Shaft Diameter: 7/8 inch
• Material: 6061 Aluminum
• Adjustable Damping: Yes (10-position CDCV)
• Remote Reservoir: Yes
• Installation: Bolt-on (requires aftermarket upper control arms)
• Warranty: 1-year limited warranty

Included Components

• 2x ICON 2.5 VS Extended Travel Front Coilovers with Remote Reservoirs
• Mounting hardware and brackets
• Installation instructions

Product Description

The ICON 58715C 2.5 VS Extended Travel Remote Reservoir Coilover Kit is engineered to enhance the suspension performance of your 1996-2004 Toyota Tacoma 4WD or Prerunner. Designed with off-road enthusiasts in mind, this kit offers adjustable front lift heights ranging from 0 to 3 inches, allowing for the accommodation of larger tires and improved ground clearance.

Featuring a 2.5-inch diameter 6061 aluminum shock body and a 7/8-inch chrome-plated steel shaft, these coilovers are built for durability and efficient heat dissipation. The remote reservoirs are equipped with a 10-position Compression Damping Control Valve (CDCV), enabling you to fine-tune the ride quality to suit various terrains and driving conditions. The extended travel design increases wheel articulation, providing superior off-road capability while maintaining on-road comfort.

Installation requires aftermarket front upper control arms to achieve the full range of motion offered by the extended travel design. Compatible with factory wheels and tires, as well as recommended aftermarket setups, the ICON 58715C Coilover Kit is a versatile upgrade for those seeking to elevate their Tacoma's suspension performance.
