ICON 64043 Fabricated Radius Arm System 2-5.5" for 23-25 Ford F-250 F-350 4WD

Vehicle Fitment

• 2023-2025 Ford F-250 Super Duty (4WD, All Engines, All Cabs)
• 2023-2025 Ford F-350 Super Duty (4WD, All Engines, All Cabs - Non-Dually)
• 2023-2025 Ford F-450 Super Duty (4WD, All Engines)

Fitment Notes

• Compatible with 2-6" of front lift height with radius arm installed in the factory pivot - no caster bushings or radius arm drop brackets required within this range
• NOT recommended for use on stock height (0" lift) trucks
• Models equipped with OnBoard Scales and up to 3.5" of front lift also require ICON sensor bracket part number 66203 - sold separately
• Models equipped with OnBoard Scales and 4-6" of front lift also require ICON sensor bracket part number 66204 - sold separately
• Models equipped with Dynamic Bending Headlamps also require ICON part number 611081 - sold separately
• An adjustable track bar (ICON #64039 or equivalent) is recommended to recenter the axle and correct bump steer geometry after installation
• Compatible with 5.5" backspace wheels and 37" tires without contact at full steering lock
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation

Features

• Adjustable caster cams allow precise on-vehicle fine-tuning of caster angle - covers 2-6" of front lift from factory pivot without requiring drop brackets or caster bushings
• Fully fabricated, fully boxed construction delivers significantly increased strength over OE radius arms
• Profile specifically optimized for maximum tire clearance at full steering lock - clears 37" x 12.50" tires and accommodates 5.5" backspace wheels without contact
• Sealed pivot bushing minimizes road feedback and noise transmission while ensuring long service life without maintenance
• Raises ground clearance under the chassis by eliminating the need for radius arm drop brackets at common lift heights
• OnBoard Scales compatibility maintained via optional ICON sensor linkage brackets (sold separately for each lift height range)
• Maintenance-free bushing design for long-term durability without re-greasing
• 100% bolt-on installation to factory mounting points - no drilling, cutting, or welding required

Specifications

• Compatible Lift Range: 2-6" (from factory pivot, no drop brackets)
• Construction: Fully Fabricated, Fully Boxed Steel
• Pivot Bushing: Sealed, Maintenance-Free
• Caster Adjustment: On-Vehicle Adjustable Caster Cams
• Tire Clearance: 37" x 12.50" at full steering lock
• Wheel Backspace Clearance: 5.5" backspace at full steering lock
• OEM Wheels & Tires Fitment: Yes (with proper lift height)
• Shipping Weight: 72.0 lbs
• Shipping Dimensions: 49.0" L x 11.0" W x 9.0" D
• UPC: 840103437071
• Country of Origin: United States

Included Components

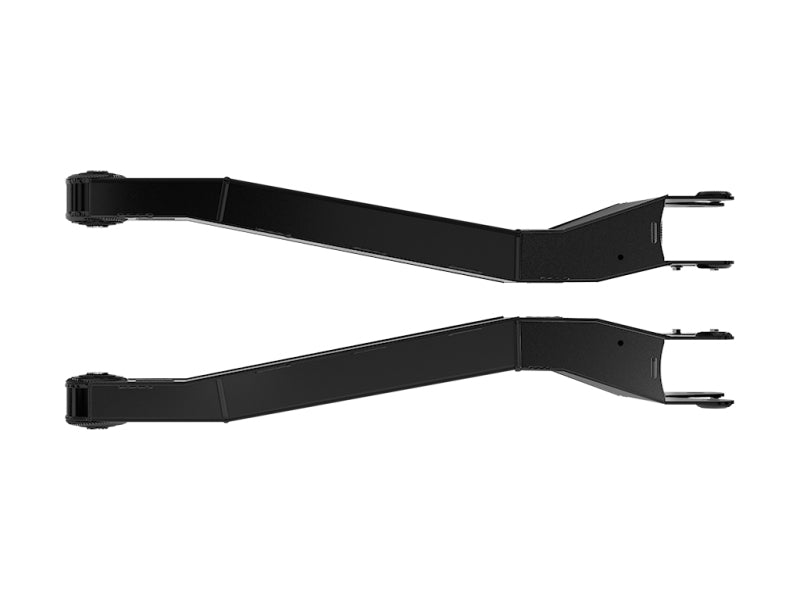

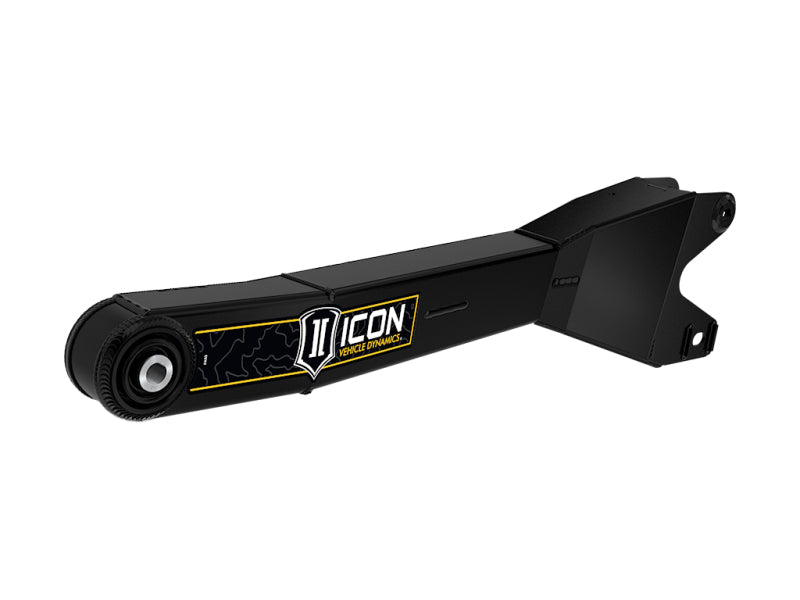

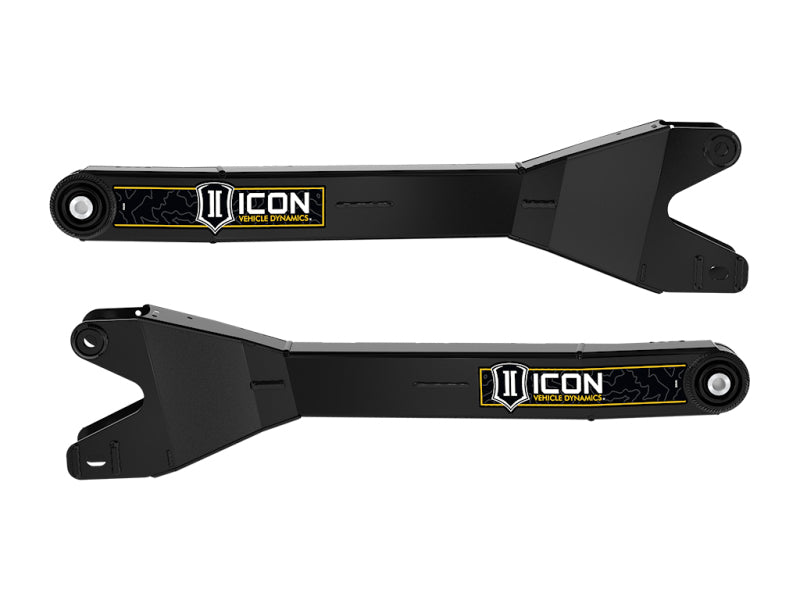

• 2x Fully Fabricated Boxed Radius Arms
• Adjustable Caster Cams (integrated)
• Sealed Pivot Bushings
• All required mounting hardware
• Note: OnBoard Scales sensor brackets (#66203 or #66204), Dynamic Bending Headlamp kit (#611081), and adjustable track bar (#64039) sold separately

Product Description

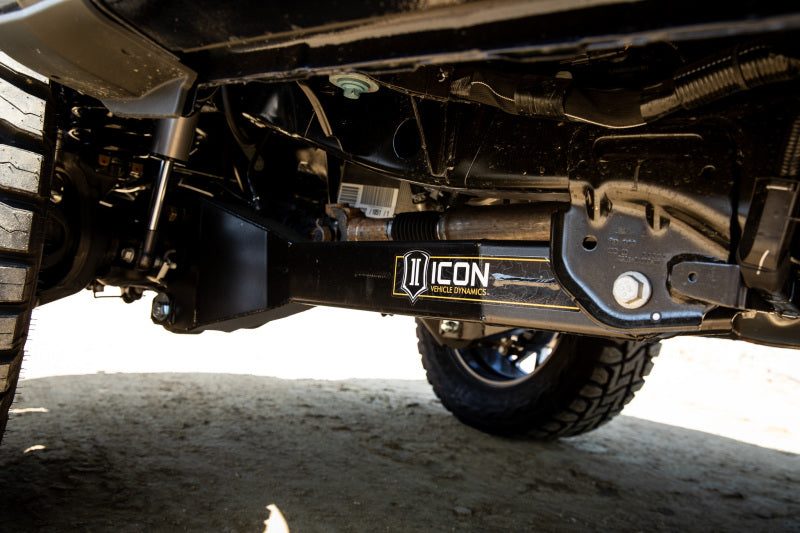

The ICON 64043 is a fully fabricated, fully boxed replacement radius arm system engineered specifically for the 2023-2025 Ford F-250, F-350, and F-450 Super Duty (4WD). Unlike the factory radius arms - which require caster bushings or drop brackets to maintain proper geometry at lifted heights - the ICON 64043 installs directly to the factory pivot location and uses adjustable caster cams to properly correct caster across a full 2-6" front lift range with no additional drop hardware required. This dramatically simplifies the suspension build while also raising ground clearance under the chassis by eliminating bracket hardware below the frame.

The fully boxed steel construction delivers significantly greater strength than OE arms, and the arm profile is specifically shaped to clear 37" x 12.50" tires and 5.5" backspace wheels at full steering lock - eliminating the tire-to-arm contact that plagues many competitor radius arm designs. The sealed, maintenance-free pivot bushing minimizes road feedback and noise while providing long-term durability without re-greasing. Trucks equipped with OnBoard Scales require additional ICON sensor brackets (sold separately - #66203 for up to 3.5" lift, #66204 for 4-6" lift). An adjustable track bar is recommended to recenter the axle after installation. Not recommended for use at stock ride height.
