ICON 56516 2.0 VS Rear Shock for 2022-2025 Toyota Tundra/2023-2025 Sequoia

Vehicle Fitment

• 2022-2025 Toyota Tundra (4WD, Rear, 0-1.5" Lift for Non-TRD; Up to ~3.5" with Air Suspension)
• 2023-2025 Toyota Sequoia (4WD, Rear, 0-4" Lift depending on trim & suspension)

Features

• Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorber designed for Tundra/Sequoia rear
• Nitrogen-charged monotube design with internal reservoir for consistent damping performance
• One-piece linear/digressive piston with vehicle-tuned valving for balanced ride quality
• Premium 5WT shock oil for reliable performance across temperature ranges
• 5/8" chrome-plated hardened steel shaft for enhanced strength and corrosion resistance
• 6063 anodized aluminum shock body and internal reservoir tubing for excellent heat dissipation
• Polyurethane bushings with zinc plated sleeves and forged steel mounting stems for OE-style fit
• Fully rebuildable and revalveable for long-term serviceability

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: 56516
• Position: Rear Shock Absorber
• Series: V.S. 2.0 Aluminum with Internal Reservoir
• Body Diameter: ~2.0"
• Gas Charged: Nitrogen
• Lift Range Compatibility:
  • Tundra non-TRD w/ rear coils: 0-1.5"

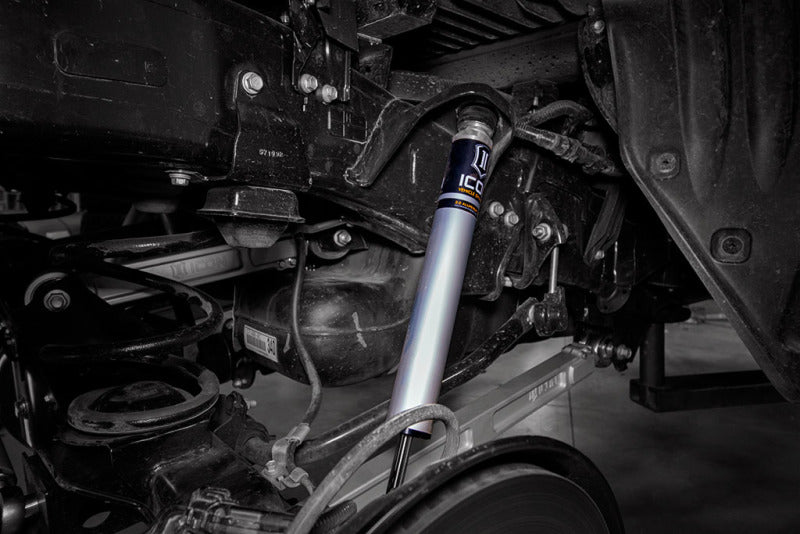

  • Tundra w/ air suspension: ~0-3.5"
  • Sequoia non-TRD: 0-4"
• Upper Mount: Stem; Lower Mount: Eyelet
• Rebuildable/Revalveable: Yes

Included Components

• 1x ICON 56516 Rear Shock Absorber (sold individually)
• Polyurethane bushing and sleeve hardware included

Product Description

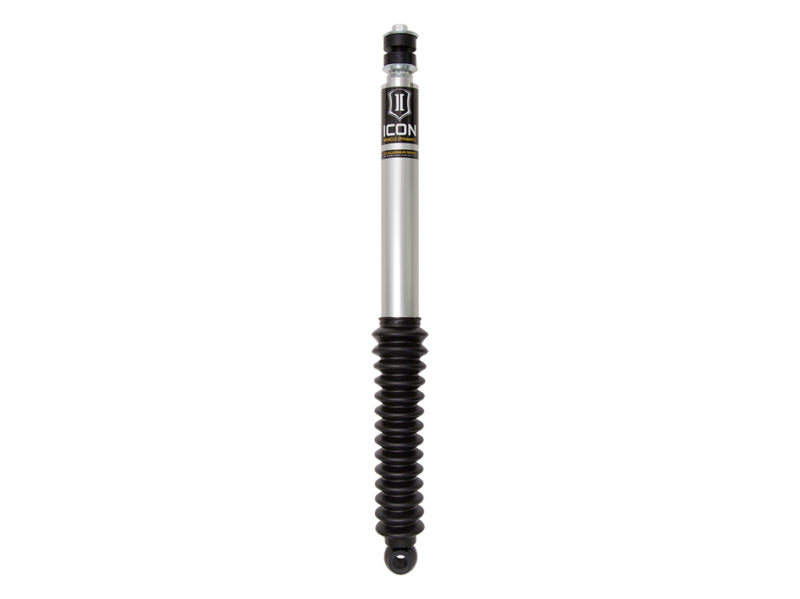

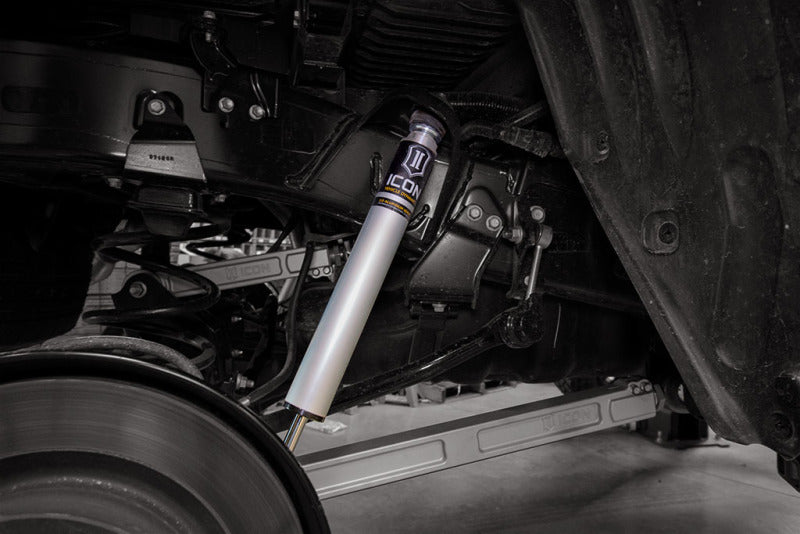

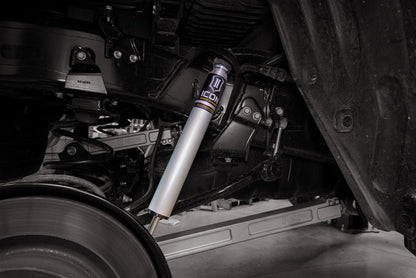

The ICON Vehicle Dynamics 56516 Rear Shock is a vehicle-specific, performance-oriented replacement designed for Toyota Tundra (2022-2025) and Toyota Sequoia (2023-2025) rear suspension systems. Built with a nitrogen-charged monotube internal reservoir and tuned valving, this 2.0 V.S. aluminum shock delivers superior damping performance and improved ride quality over many factory units. Its robust construction combines a hardened chrome-plated steel shaft with an anodized aluminum body and reservoir, giving excellent resistance to corrosion and heat buildup during repeated use.

This shock is engineered to support lifted rear suspension setups, with lift compatibility varying by model and configuration - from approximately 0-1.5" on non-TRD Tundra coil spring variants up to roughly 3.5" on Tundras with air suspension, and up to 4" on select Sequoia trims. Its fully rebuildable and revalveable nature allows for serviceability and tuning as suspension needs evolve. Sold individually, replacing both rear shocks simultaneously is recommended for balanced suspension performance.
