ICON 57827CP Rear 2.5 CDCV Shocks for 22-23 Toyota Land Cruiser 300 0-2in Lift

Vehicle Fitment

• 2022-2023 Toyota Land Cruiser 300 Series (All trims, 4WD)

Fitment Notes

• Designed specifically for 0-2" rear lift over stock suspension
• Compatible only with factory-style rear suspension geometry
• Not intended for heavily modified long-travel suspension setups

Features

• ICON Vehicle Dynamics VS 2.5 aluminum shock body construction

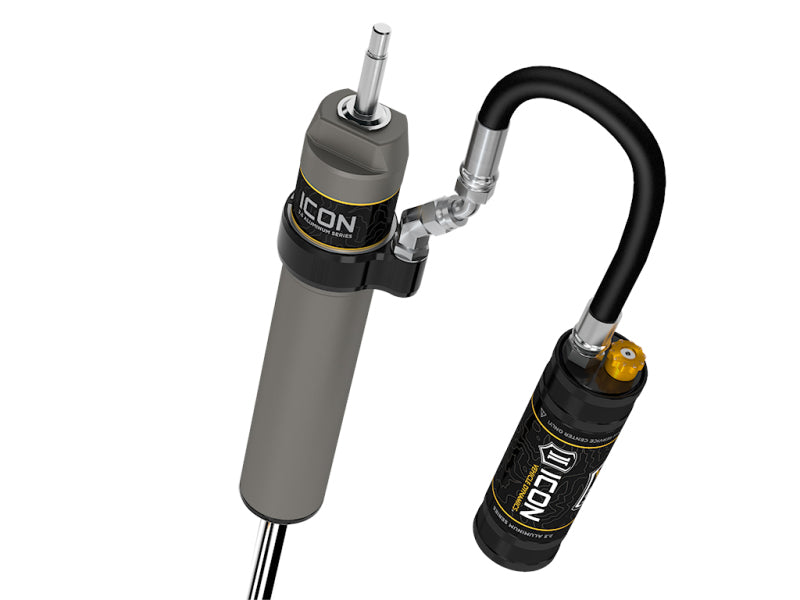

• Remote reservoir design for improved cooling and fade resistance
• CDCV (Compression Damping Control Valve) adjustable damping system
• 10-position compression damping tuning via external adjuster
• 6061 aircraft-grade CNC-machined aluminum components
• Internal "Bump Zone" increases damping force by ~20% at full compression
• 7/8" induction-hardened chrome-plated shock shaft
• Monotube nitrogen-charged design for consistent performance
• Digressive piston design tuned for vehicle-specific ride quality
• PTFE-lined spherical bearings for reduced deflection and noise
• Fully rebuildable and revalveable construction
• High-temp 5WT shock oil for stable performance under load

Specifications

• Part Number: 57827CP
• Shock Type: Rear remote reservoir monotube shocks (pair)
• Body Diameter: 2.5 inches
• Material: 6061-T6 aluminum
• Vehicle Position: Rear axle
• Lift Range: 0-2 inches rear lift compatible
• Adjustment Type: CDCV external compression damping adjuster
• Application: Toyota Land Cruiser 300 Series

Included Components

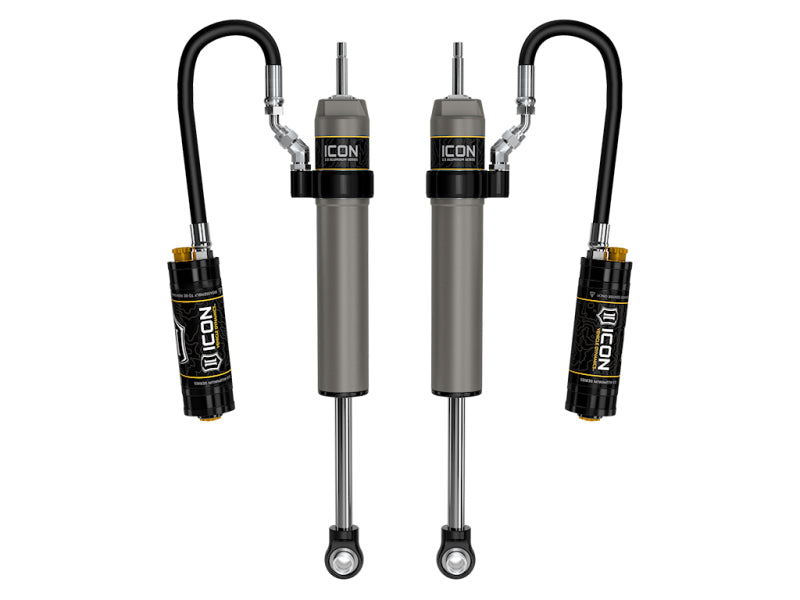

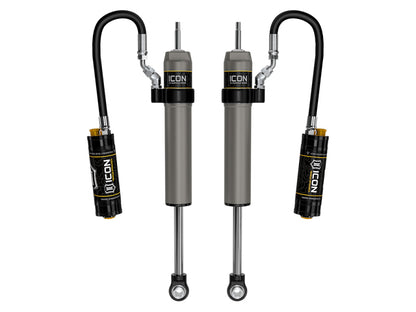

• 2x ICON 57827CP rear shock absorbers
• Remote reservoir assemblies (pre-installed)
• Application-specific mounting hardware kit
• Spherical bearing hardware set

Product Description

The ICON 57827CP rear shock system is engineered specifically for the 2022-2023 Toyota Land Cruiser 300 Series, delivering a significant upgrade in ride control, off-road performance, and heat management. Built around ICON's 2.5-inch VS aluminum shock body, this system is designed to handle demanding terrain while maintaining stability and comfort on-road. The remote reservoir design increases oil capacity and cooling efficiency, reducing shock fade during extended off-road use or heavy load conditions.

This system features ICON's CDCV (Compression Damping Control Valve) technology, allowing fine-tuned adjustment of compression damping through 10 external settings. This gives drivers the ability to adapt suspension behavior based on terrain, load, or driving style. Combined with vehicle-specific valving and a digressive piston design, the 57827CP delivers controlled rebound and improved suspension response across varied driving conditions.

Constructed from CNC-machined 6061 aluminum with a hardened 7/8-inch shaft, the shocks are fully rebuildable and serviceable for long-term performance. Whether used for overlanding, towing, or aggressive off-road driving, the ICON 57827CP provides a premium suspension upgrade tailored specifically for the Land Cruiser 300 platform.
