ICON 91824 V.S. 2.5 Front Coilover Kit w/ RR for 21-26 Ford F-150 4WD/Tremor

Vehicle Fitment

• 2021-2026 Ford F-150 Tremor 4WD (front -- 2.5-3" lift over stock)
• 2021-2026 Ford F-150 4WD other sub-models (front -- 3.5-4.5" lift, requires ICON Front Knuckle Kit)

Fitment Notes

• Front position only -- sold as a pair
• F-150 Tremor: direct bolt-on, 2.5-3" adjustable lift over stock
• Non-Tremor F-150 4WD: requires ICON Front Knuckle Kit for 3.5-4.5" lift
• Not compatible with models equipped with BlueCruise
• Not compatible with all available OE wheel/tire combinations -- aftermarket wheels with lower offset recommended
• Recommended aftermarket wheels: 17x8.5" w/ 5" BS / 6mm offset, 18x9" w/ 5.25" BS / 6mm offset, or 20x9" w/ 5.625" BS / 16mm offset
• Recommended aftermarket tires: 34" x 12.50" (larger tires may fit with fender trimming)
• Pair with ICON rear 2.0 Aluminum or 2.5 Series shocks for balanced front-to-rear control
• CDCV upgrade version: ICON 91824C
• CDEV electronic version: ICON 91824E
• CDXS dual-speed version: ICON 91824X

Features

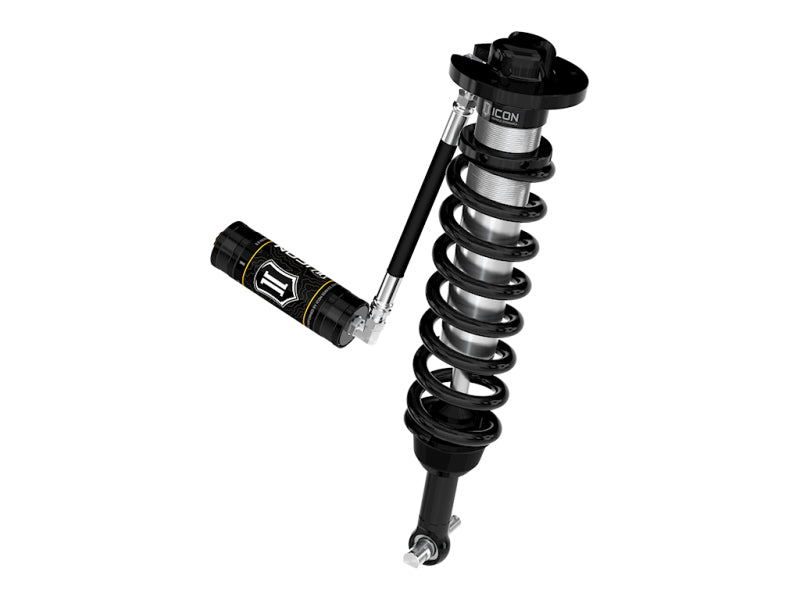

• ICON V.S. 2.5 Series coilover with remote reservoir
• Vehicle-specific valving for sport-tuned on- and off-road feel
• Application-specific length for maximum wheel travel
• 2.5" shock body with increased piston area over stock
• Remote reservoir maintains cooler operating temps during extended off-road use
• Adjustable ride height via threaded body
• ICON-engineered coil springs optimized for this application
• 100% rebuildable and revalveable

Specifications

• Series: ICON V.S. 2.5
• Type: Front coilover with remote reservoir
• Shock Body: 2.5" diameter
• Reservoir: Remote
• Lift Range (Tremor): 2.5-3" over stock
• Lift Range (Other F-150 4WD w/ ICON Knuckle Kit): 3.5-4.5" over stock
• Position: Front
• Sold As: Pair
• UPC: 840103425665

Included Components

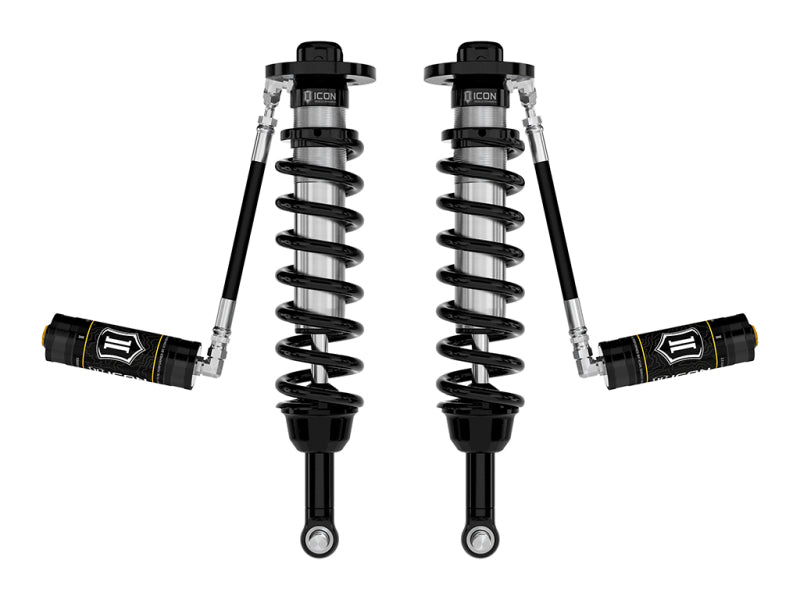

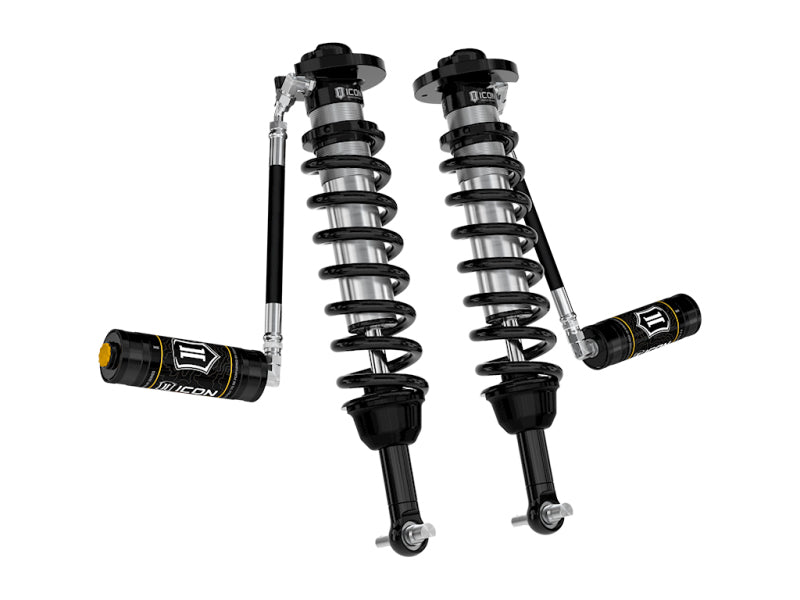

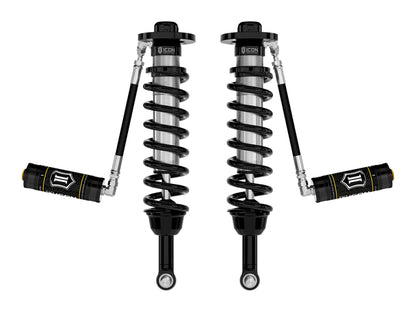

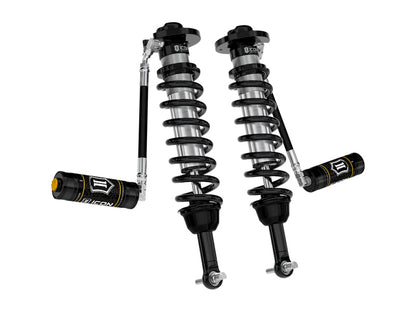

• 2x ICON V.S. 2.5 Series coilover shocks with remote reservoirs
• 2x ICON application-specific coil springs
• All necessary mounting hardware and brackets
• Installation instructions

Product Description

The ICON 91824 is a V.S. Series 2.5" front coilover kit with remote reservoirs for the 2021-2025 Ford F-150 4WD, designed specifically for the F-150 Tremor and other F-150 4WD sub-models equipped with ICON's Front Knuckle Kit. On the F-150 Tremor, the coilovers deliver 2.5-3" of adjustable lift height over stock as a direct bolt-on. On non-Tremor F-150 4WD models paired with the ICON Front Knuckle Kit, the system provides 3.5-4.5" of adjustable lift -- effectively a Tremor conversion with even greater lift capability. The application-specific coilover length maximizes wheel travel while ICON's vehicle-specific valving delivers a sport-tuned feel both on-road and off-road.

The larger 2.5" shock body and increased piston area over factory components provide improved damping ability and outstanding ride characteristics across varying terrain. Remote reservoirs increase oil capacity and maintain cooler operating temperatures during extended off-road use for consistent, fade-free damping. ICON-engineered coil springs are optimized for this application. Every ICON 2.5 Series shock is 100% rebuildable and revalveable for an immeasurable service life. Not compatible with F-150 models equipped with BlueCruise. For electronically adjustable compression damping, use the CDEV version (91824E) or CDCV version (91824C). For independent high/low speed compression adjustment, use the CDXS version (91824X). Pair with ICON rear shocks for balanced front-to-rear control.
