ICON K93131T 2.75-3.5" Stage 1 Suspension System with Tubular UCA for 2021-2025

Vehicle Fitment

• 2021-2025 Ford F-150 4WD (King Ranch, LARIAT, Platinum, Police Responder, SSV, XL, XLT)

Features

• Provides 2.75-3.5 inches of front lift for improved ground clearance

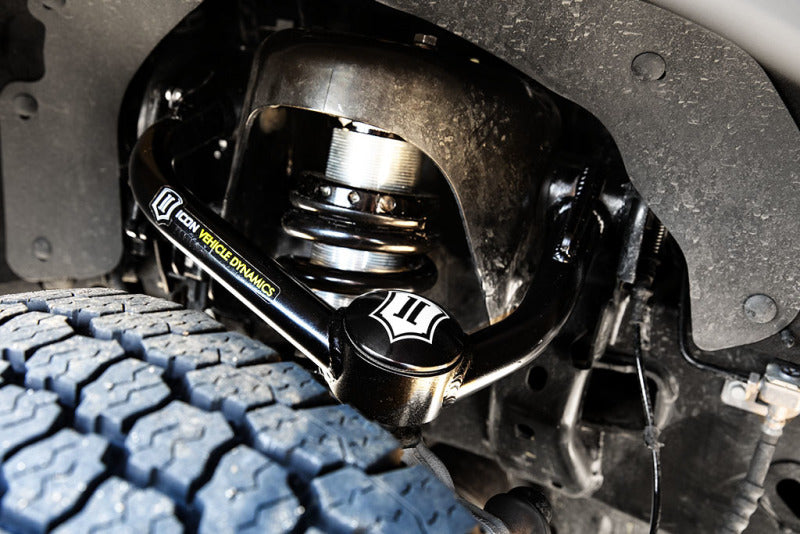

• Includes tubular upper control arms with ICON's Delta Joint PRO for enhanced strength and durability
• Height-adjustable coilovers allow for fine-tuning of lift height
• Designed to maintain factory alignment specifications
• Compatible with factory wheels and tires; aftermarket wheels may require modifications
• Utilizes ICON's 2.5 Series coilovers with internal reservoirs for superior damping performance
• Features vehicle-specific valving tuned for optimal on- and off-road ride quality
• 100% bolt-on installation with no drilling, cutting, or welding required

Specifications

• Part Number: K93131T
• Lift Height: 2.75-3.5 inches
• Included Components: Tubular upper control arms, 2.5 Series coilovers with internal reservoirs, necessary hardware
• Recommended Tire Size: Up to 33 inches (larger tires may require modifications)
• Recommended Wheel Size: 17" or larger with appropriate backspacing
• Emissions: Not CARB exempt; not available for purchase or use in California or other states with similar regulations
• Warranty: Limited Lifetime Warranty

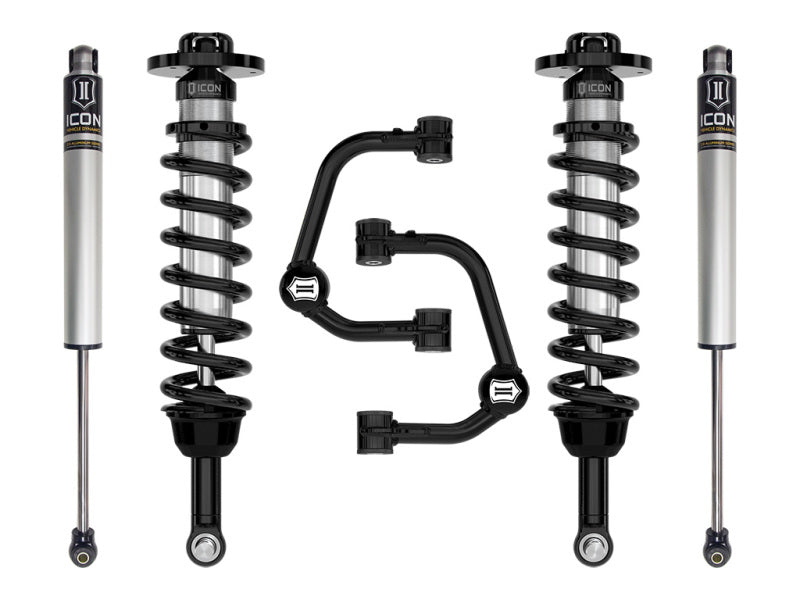

Included Components

• 2x Tubular upper control arms
• 2x 2.5 Series coilovers with internal reservoirs
• All necessary hardware for installation
• Installation instructions

Product Description

The ICON K93131T Stage 1 Suspension System is engineered to provide 2.75-3.5 inches of front lift for the 2021-2025 Ford F-150 4WD, enhancing ground clearance and allowing for the installation of larger tires up to 33 inches. This system includes ICON's 2.5 Series coilovers with internal reservoirs, offering superior damping performance both on and off-road.

Designed for durability and strength, the system features tubular upper control arms with ICON's Delta Joint PRO, which combines the durability of factory-style ball joints with the performance of traditional motorsports-style ball joints. The system is designed to maintain factory alignment specifications and is compatible with factory wheels and tires. Please note that this system is not CARB exempt and cannot be shipped to or used in California or other states with similar emissions regulations.
