ICON 58795 2.5 VS Front Remote Reservoir Coilover Kit 1.25-3" for 25-26 4Runner

Vehicle Fitment

• 2025-2026 Toyota 4Runner (4WD, All Gas Engine Trims) - Non-AVS Models Only

Fitment Notes

• Designed for 4WD models only - for 2WD 4Runner, use ICON part number 58796
• Does NOT fit vehicles equipped with Adaptive Variable Suspension (AVS)
• Advertised lift heights of 1.25-3" are based on a gas engine-equipped, stock-configured vehicle - added accessories or weight will reduce actual lift height
• Must be paired with ICON Front Differential Drop Kit (55160) on 4WD models for proper CV joint operating angles and maximum wheel travel - sold separately
• ICON Delta Joint Pro front upper control arms (58552DJ or 58452DJ) are strongly recommended to maintain proper wheel alignment above 2" of lift
• OEM wheels and tires fit with this coilover kit installed
• Recommended aftermarket wheels: 17x8.5 with 6.32" backspace / 40mm offset, or ICON Alloys 18x9 with 6.6" backspace / 40mm offset
• Recommended aftermarket tires: 33" x 11.50" - larger tires may fit but fender trimming may be required
• Shocks are fully serviceable and rebuildable
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation
• For externally adjustable compression damping, upgrade to ICON part number 58795C (CDCV) or 58795E (CDEV)

Features

• Vehicle-specific shock length and valving custom-tuned by ICON engineers for the 2025-2026 Toyota 4Runner 4WD platform - yields maximum front wheel travel when paired with the front differential drop kit
• Remote reservoir dramatically increases shock oil volume and heat dissipation surface area, preventing overheating and cavitation under extended hard use
• 2.5" diameter shock body with increased piston surface area over stock components delivers superior damping capability across all terrain types
• Height-adjustable threaded body provides 1.25-3" of front lift adjustment without disassembly
• ICON-engineered coil springs matched to these coilover bodies for optimized on- and off-road ride quality
• Corrosion-resistant CAD-plated shock bodies with 7/8" diameter shafts built for sustained off-road use
• FK rod end bearings at lower mount for extended longevity and minimal deflection under load
• 100% bolt-on - no drilling, cutting, or welding required; fully rebuildable and re-tunable

Specifications

• Position: Front
• Drivetrain Fitment: 4WD Only
• Lift Height Range: 1.25-3" (gas engine, stock-equipped vehicle)
• Shock Body Diameter: 2.5"
• Shaft Diameter: 7/8" (0.875") CAD-Plated
• Reservoir Type: Remote Reservoir
• Damping Adjustment: None - fixed valving (see 58795C for CDCV, 58795E for CDEV)
• Lower Mount Type: FK Rod End Bearing
• Body Material: 6061 Aircraft-Grade Aluminum (CNC Machined)
• Shock Body Finish: CAD-Plated, Corrosion Resistant
• OEM Wheels & Tires Fitment: Yes
• Country of Origin: United States
• Warranty: ICON Limited Lifetime (shocks fully serviceable)

Included Components

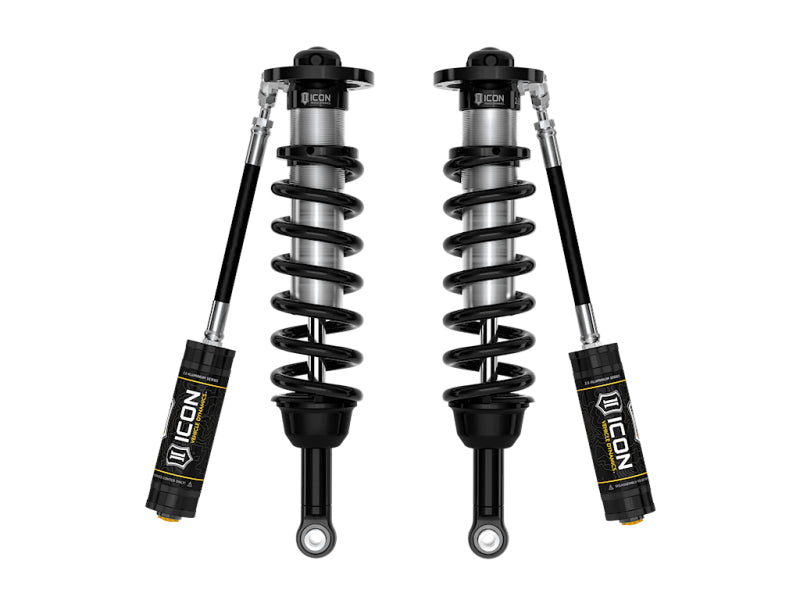

• 2x V.S. 2.5 Series Front Coilover Shocks with Remote Reservoir
• 2x ICON-Engineered Coil Springs
• All required mounting hardware
• Note: Front Differential Drop Kit (55160) required for 4WD - sold separately

Product Description

The ICON 58795 is a vehicle-specific V.S. 2.5 Series front remote reservoir coilover kit engineered for the 2025-2026 Toyota 4Runner 4WD (non-AVS). The key upgrade over the internal reservoir 58692 is the remote reservoir - dramatically increasing shock oil volume and heat dissipation surface area to resist overheating and cavitation during sustained hard off-road use. ICON's vehicle-specific shock length and valving are custom-tuned for the 6th Gen 4Runner 4WD platform, and when paired with the required Front Differential Drop Kit (55160), yield maximum available front wheel travel while maintaining proper CV joint operating angles throughout the full 1.25-3" lift range.

The 2.5" shock body with increased piston surface area over stock components delivers superior damping performance across all terrain types, while ICON-engineered coil springs ensure balanced ride quality front to rear when paired with ICON rear shock absorbers. Installation is 100% bolt-on to factory mounting points with no drilling, cutting, or welding required, and all shocks are fully rebuildable and re-tunable for long-term serviceability. OEM wheels and tires remain compatible post-install. For buyers who want adjustable compression damping, the 58795C (CDCV - knob-adjustable) and 58795E (CDEV - electronically adjustable) versions are available. ADAS recalibration is required after installation.
