ICON 58692 V.S. 2.5 Series Front IR Coilover Kit 1.25-3" Lift for 25-26 4Runner

Vehicle Fitment

• 2025-2026 Toyota 4Runner (4WD, All Gas Engine Trims) - Non-AVS Models Only

Fitment Notes

• Designed for 4WD models only - for 2WD 4Runner, use ICON part number 58693
• Does NOT fit vehicles equipped with Adaptive Variable Suspension (AVS)
• Advertised lift heights of 1.25-3" are based on a stock-equipped gas engine vehicle - added accessories or weight will reduce actual lift height
• ICON Delta Joint Pro front upper control arms (48552DJ or 48452DJ) are strongly recommended to maintain proper wheel alignment above 2" of lift
• Must be paired with ICON Front Differential Drop Kit (55160) on 4WD models for proper CV joint operating angles and maximum wheel travel - sold separately
• OEM wheels and tires fit with this coilover kit installed
• Recommended aftermarket tires: 33" x 11.50" - larger tires may fit but fender trimming may be required
• Shocks are fully serviceable and rebuildable
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation

Features

• Vehicle-specific shock length and valving custom-tuned by ICON engineers for the 2025-2026 Toyota 4Runner 4WD platform for superior damping and ride quality over stock
• 2.5" diameter shock body with internal reservoir delivers increased piston surface area and oil volume for consistent, fade-resistant performance

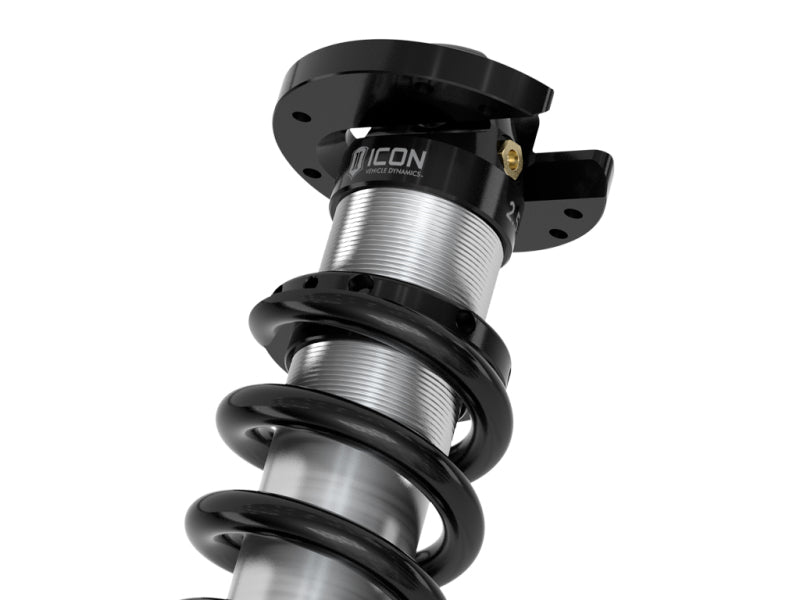

• Height-adjustable threaded body allows 1.25-3" of front lift height adjustment without disassembly
• ICON-engineered coil springs paired specifically with these coilover bodies for optimized on- and off-road ride quality
• Corrosion-resistant CAD-plated shock bodies built to withstand prolonged off-road exposure
• FK rod end bearings at lower mount provide extended longevity and minimal deflection under load
• 6061 aircraft-grade aluminum CNC machined components for strength and reduced weight
• 100% bolt-on - no drilling, cutting, or welding required; fully rebuildable and re-tunable

Specifications

• Position: Front
• Lift Height Range: 1.25-3" (4WD, gas engine, stock-equipped vehicle)
• Shock Body Diameter: 2.5"
• Shaft Diameter: 7/8" (0.875") CAD-Plated
• Reservoir Type: Internal
• Damping Adjustment: None - fixed valving (see 58692C for CDCV version)
• Lower Mount Type: FK Rod End Bearing
• Body Material: 6061 Aircraft-Grade Aluminum (CNC Machined)
• Shock Body Finish: CAD-Plated, Corrosion Resistant
• OEM Wheels & Tires Fitment: Yes
• Warranty: ICON Limited Lifetime (shocks fully serviceable)
• Country of Origin: United States

Included Components

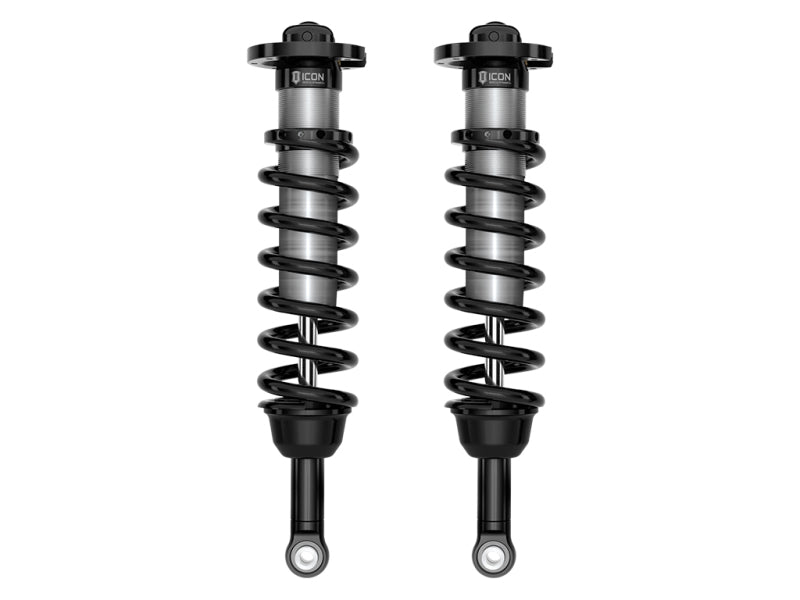

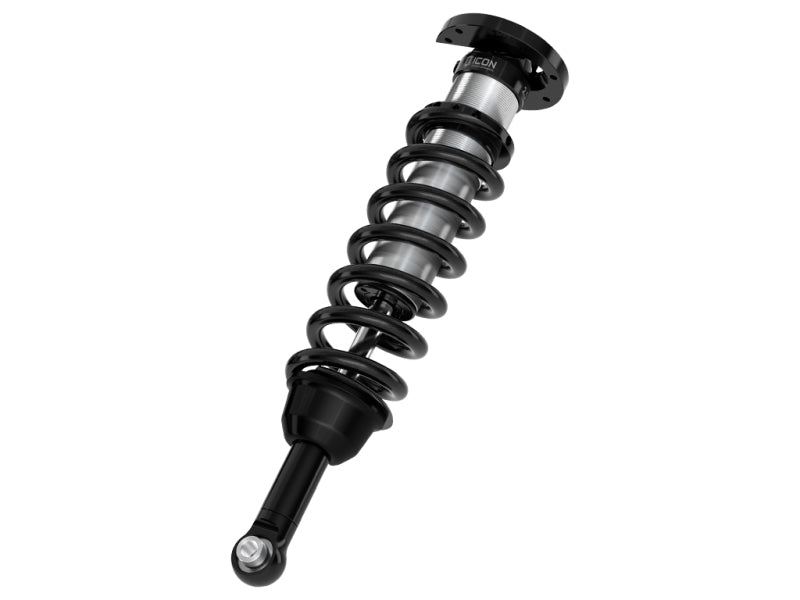

• 2x V.S. 2.5 Series Front Coilover Shocks with Internal Reservoir
• 2x ICON-Engineered Coil Springs
• All required mounting hardware
• Note: Front Differential Drop Kit (55160) required for 4WD - sold separately

Product Description

The ICON 58692 is a vehicle-specific V.S. 2.5 Series front internal reservoir coilover kit engineered exclusively for the 2025-2026 Toyota 4Runner 4WD (non-AVS). The 2.5" shock body and increased piston surface area deliver significantly more damping capability and oil volume than the OE front struts, while ICON-engineered coil springs are custom-matched to the shock bodies for a balanced, controlled ride across the full 1.25-3" adjustment range. The coilover's threaded body allows easy on-vehicle ride height adjustment, and the CAD-plated shock body with FK rod end lower mount is built to handle sustained off-road use without fade or deflection.

On 4WD models, this coilover kit must be paired with ICON's Front Differential Drop Kit (55160) to maintain proper CV joint operating angles and maximize available front wheel travel - this kit is sold separately and is essential for 4WD builds. ICON Delta Joint Pro upper control arms are also recommended for any lift above 2" to maintain proper alignment geometry. OEM wheels and tires remain compatible post-install, and all coilovers are fully rebuildable for long-term serviceability. ADAS recalibration is required after installation. For buyers wanting electronically adjustable compression damping, the ICON 58692C (CDCV version) is the upgrade path.
