ICON 57872P V.S. 2.5 Series Rear Remote Reservoir Shocks 0-3" for 25-26 4Runner

Vehicle Fitment

• 2025-2026 Toyota 4Runner (All Trims, 2WD/4WD, All Gas Engines) - Non-AVS Models Only

Fitment Notes

• Does NOT fit vehicles equipped with Adaptive Variable Suspension (AVS)
• Lift range of 0-3" is achieved in conjunction with compatible front coilovers and rear coil springs - shocks alone do not produce lift
• Advertised lift height ranges based on a stock-equipped vehicle - added accessories and rear weight will reduce actual lift height
• For maximum performance, ICON recommends pairing with ICON 2.5 Series front coilovers for balanced front-to-rear damping tune
• For electronically adjustable compression damping, upgrade to ICON part number 57872CP (CDEV version)
• Shocks are fully serviceable - rebuild parts available from ICON Vehicle Dynamics
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation
• Sold as a pair - 2 rear shocks included

Features

• Vehicle-specific shock length and valving custom-tuned by ICON engineers for the 2025-2026 Toyota 4Runner platform for balanced front-to-rear damping performance
• Remote reservoir greatly increases shock oil volume and heat dissipation surface area, preventing overheating and cavitation under extended hard use
• ICON's integrated internal Bump Zone increases damping by 20% as the shock approaches full compression, preventing harsh bottom-outs under high-velocity impacts
• One-piece digressive piston design delivers progressive, controlled damping through the full range of suspension travel
• 7/8" diameter induction-hardened, chrome-plated shock shaft provides superior strength and corrosion resistance over the OE 5/8" shaft
• One-piece impact-extruded, hard anodized aluminum cylinders for excellent corrosion resistance and long-term durability
• PTFE-lined spherical bearings and application-specific mounting hardware ensure precise, bind-free suspension movement
• 100% rebuildable and re-tunable - fully serviceable for long-term ownership

Specifications

• Position: Rear
• Lift Range: 0-3" (with compatible front coilovers and rear springs)
• Shock Body Diameter: 2.5"
• Shaft Diameter: 7/8" (0.875") Induction-Hardened, Chrome-Plated
• Body Material: Hard Anodized, Impact-Extruded Aluminum
• CNC Components: 6061 Aircraft-Grade Aluminum
• Reservoir Type: Remote Reservoir
• Bump Zone: Yes - integrated, increases damping 20% at full compression
• Bearing Type: PTFE-Lined Spherical Bearings
• Shock Oil: Premium Grade 5WT
• Damping Adjustment: None - fixed valving (see 57872CP for CDEV version)
• Country of Origin: United States

Included Components

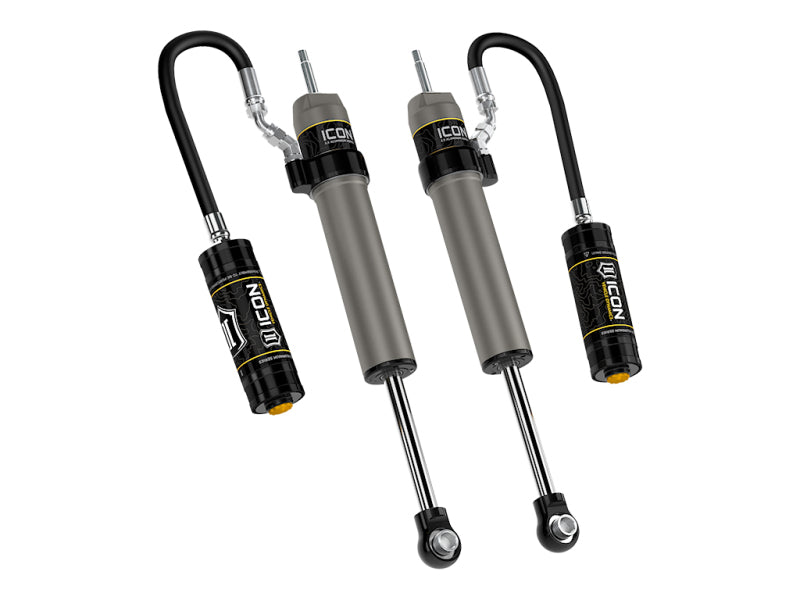

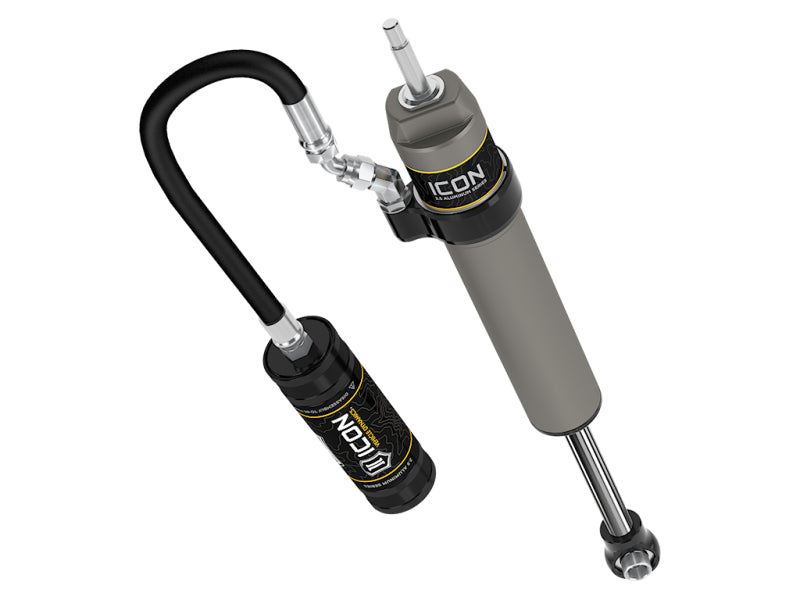

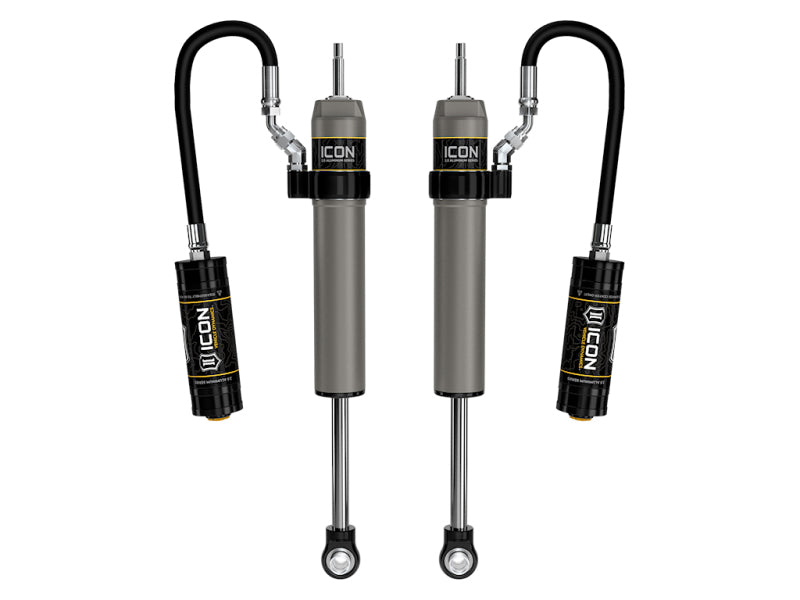

• 2x V.S. 2.5 Aluminum Series Rear Remote Reservoir Shock Absorbers
• All required mounting hardware

Product Description

The ICON 57872P is a vehicle-specific V.S. 2.5 Aluminum Series rear remote reservoir shock pair engineered for the 2025-2026 Toyota 4Runner (non-AVS). Representing a significant performance step above the OE shocks and ICON's own 2.0 Series units, the 57872P features a larger 2.5" shock body with a remote reservoir for dramatically increased oil volume and heat dissipation - eliminating damper fade during sustained off-road use. ICON's integrated internal Bump Zone adds 20% more damping force as the shock nears full compression, protecting against harsh bottom-outs on high-speed hits or aggressive terrain. The vehicle-specific valving is custom-tuned to complement ICON's 2.5 Series front coilovers for a balanced, controlled ride front to rear.

The 7/8" induction-hardened, chrome-plated shaft and hard anodized impact-extruded aluminum body provide long-term durability in demanding conditions, while PTFE-lined spherical bearings ensure precise, bind-free movement throughout the suspension range. Installation is 100% bolt-on using factory mounting points - no drilling, cutting, or welding required. These shocks are fully rebuildable and re-tunable for long-term serviceability. For buyers who want electronically adjustable compression damping, the ICON 57872CP (CDEV version) is the upgrade path. Note: these shocks do not fit AVS-equipped 4Runners, and ADAS recalibration is required after installation.
