ICON K53294 Stage 4 Suspension System for 2024-2025 Toyota Tacoma 4WD

Vehicle Fitment

• 2024-2025 Toyota Tacoma (All Trims, 4WD)

Features

• 1.25-3" front lift height adjustment

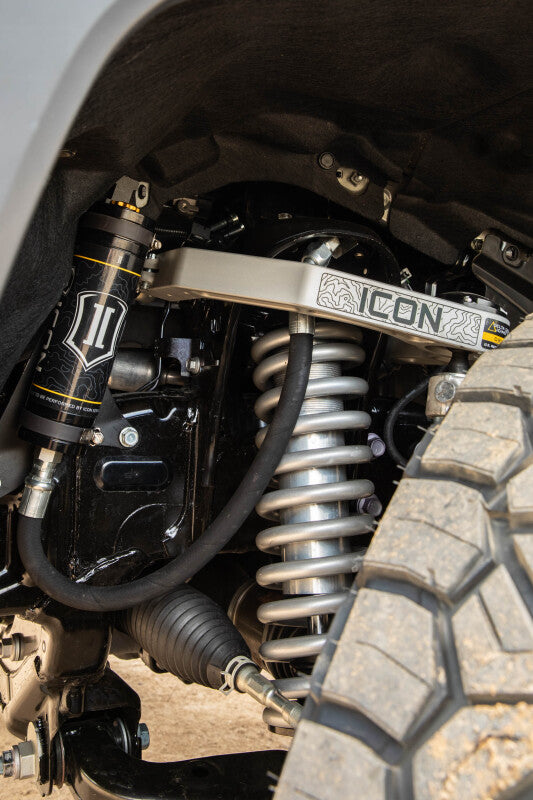

• Vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs
• ICON-engineered coil springs for superior vehicle "feel"
• Front differential drop brackets to maximize suspension travel
• Polyurethane differential mounting bushings to limit differential movement

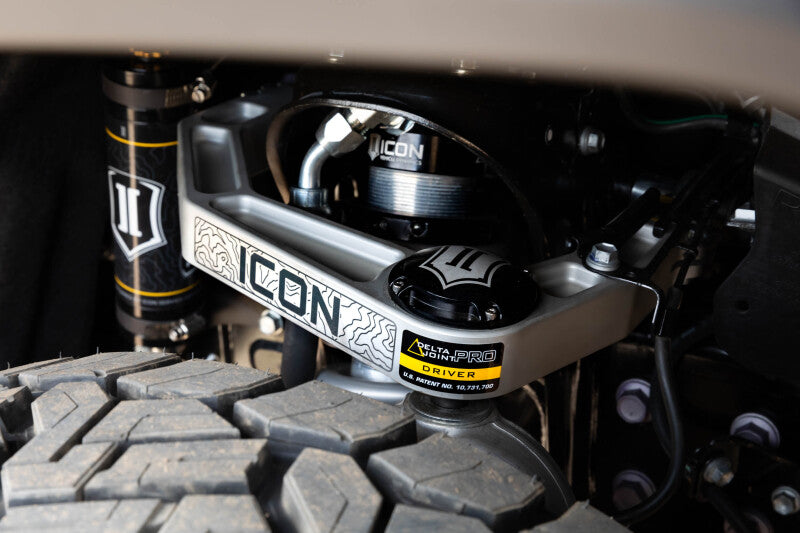

• Billet aluminum upper control arms with corrected front-end geometry
• Serviceable and rebuildable ICON Delta Joint PRO for full bump and droop travel
• Designed to complement ICON Vehicle Dynamics suspension systems

Specifications

• Front Lift Height: 1.25-3"
• Coilover Shocks: 2.5 Series with remote reservoirs
• Upper Control Arms: Billet aluminum design with Delta Joint PRO

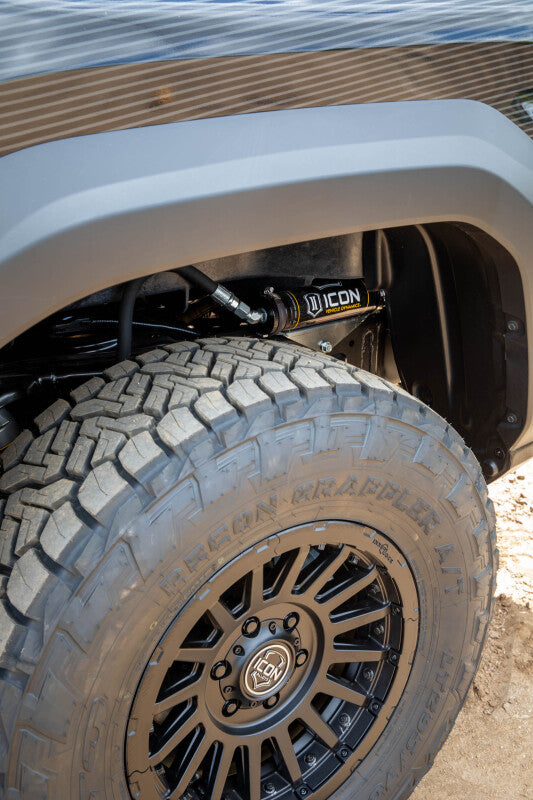

• Rear Shocks: ICON 2.5 Aluminum Series remote reservoir
• Rear Springs: Vehicle-specific valving
• Weight: 121 lbs
• Finish: Matte Titanium Gray

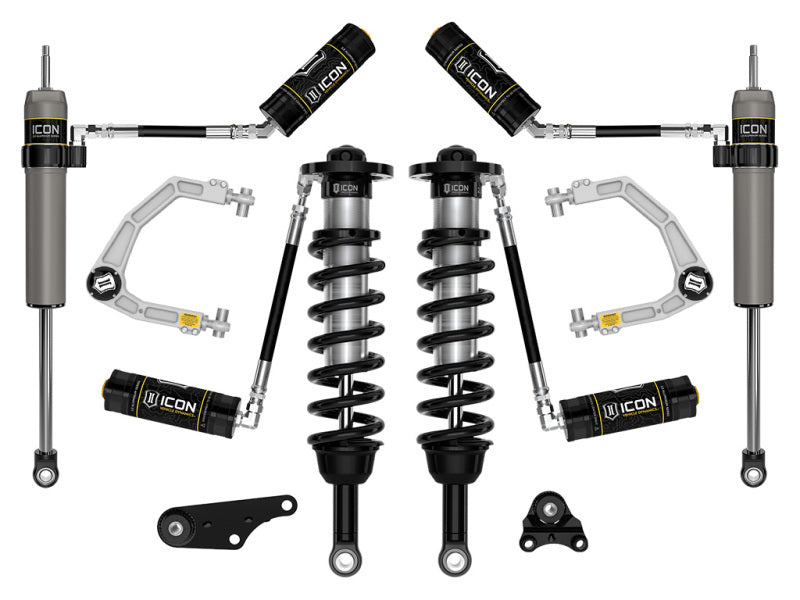

Included Components

• 2x ICON 2.5 Series coilover shocks with remote reservoirs
• 2x ICON 2.5 Aluminum Series remote reservoir rear shocks
• 2x Billet aluminum upper control arms with Delta Joint PRO
• 2x Front differential drop brackets
• 2x Polyurethane differential mounting bushings
• All necessary hardware for installation

Product Description

The ICON K53294 Stage 4 Suspension System is engineered to enhance the performance and aesthetics of your 2024-2025 Toyota Tacoma 4WD. This system offers a 1.25-3" front lift height adjustment, allowing for the use of larger, more aggressive wheel and tire combinations. The vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs provide exceptional cooling properties and improved ride quality both on- and off-road.

The included billet aluminum upper control arms feature a serviceable and rebuildable Delta Joint PRO, ensuring full bump and droop travel while eliminating bind. The front differential drop brackets and polyurethane differential mounting bushings help maximize suspension travel and limit differential movement under load. Additionally, the ICON 2.5 Aluminum Series remote reservoir rear shocks offer improved cooling ability and utilize vehicle-specific valving to balance the performance of the truck from front to rear.

Designed to complement ICON Vehicle Dynamics suspension systems, this Stage 4 kit is an excellent choice for drivers looking to enhance the capabilities of their Tacoma both on the road and in the dirt.
