ICON K53293S Stage 3 Suspension System for 2024-2025 Toyota Tacoma 4WD

Vehicle Fitment

• 2024-2025 Toyota Tacoma (4WD, all applicable trims) - full suspension system for both front and rear

Features

• Adjustable front coil-over shocks - allow 1.25-3.00" front lift over stock
• Billet aluminum upper control arms (UCAs) with high-articulation joints - improved front-end strength, geometry, and steering response
• Front differential drop bracket included - optimizes CV-axle angles and maximizes front suspension travel for 4WD
• Rear triple-rate coil springs - soft droop/ride rate for comfort, firm overload rate for load support and off-road performance
• Rear shocks with remote/externally-reservoir design - tuned to match front suspension for balanced damping and improved off-road control
• Coil-over and spring/shock tuning engineered specifically for 2024-2025 Tacoma rear & front geometry
• Improved wheel travel and suspension compliance - better articulation and ride quality on-road and off-road
• Support for larger, more aggressive wheel/tire setups - improved ground clearance and stance for off-road or aesthetic builds
• All components oil/heat-dissipating, corrosion-resistant, and built for durability under rough or heavy-duty use

Specifications

• Part Number: K53293S
• Kit Type: Stage 3 Complete Suspension System (Front coil-overs + Billet UCAs + Front diff-drop + Rear triple-rate springs + Rear shocks)
• Front Lift Range: Adjustable 1.25-3.00" over stock
• Rear Setup: Triple-rate coil springs + matched remote-reservoir shocks; approximately 0.5" rear lift compared to stock spring rate under light load
• Upper Control Arms: Billet aluminum, high-articulation joint design
• Shock Type Front: Coil-over, adjustable, high-performance damping; Shock Type Rear: Remote-reservoir, internally valved for load & terrain variability
• Suspension Compatibility: 2024-2025 Tacoma 4WD (rear suspension must be compatible - not leaf-spring leaf-overload configurations that conflict with coil-spring design)
• Installation: Full bolt-on - uses factory mounting points with included hardware
• Wheel/Tire Fitment: Allows larger wheel/tire combinations (after verifying clearance, offset/backspacing, and potential fender modifications as needed)

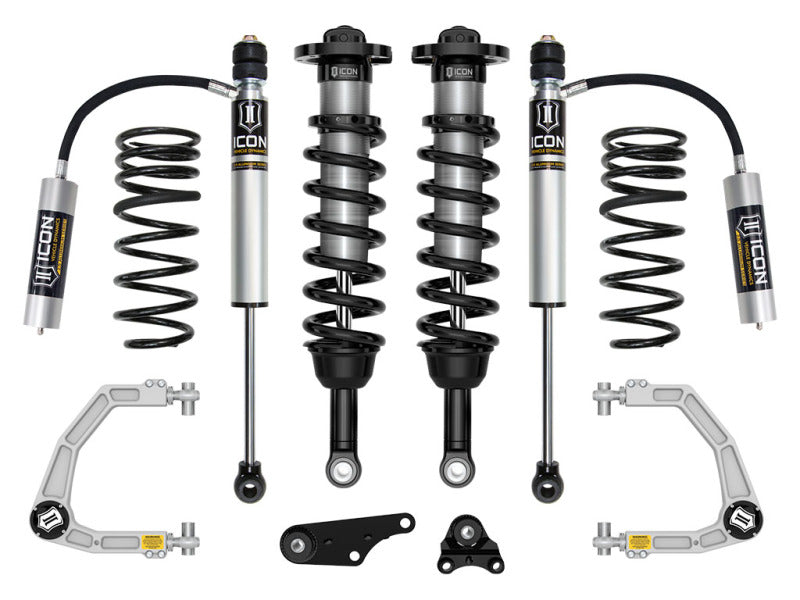

Included Components

• 2x Front adjustable coil-over shock assemblies (driver + passenger)
• 2x Billet aluminum upper control arms (left + right)
• 1x Front differential drop bracket and mounting hardware
• 2x Rear triple-rate coil springs (left + right)
• 2x Rear remote-reservoir shock absorbers (left + right)
• All required mounting hardware: bushings, sleeves, bolts, washers, clamps, etc.
• Installation instructions

Product Description

The ICON K53293S Stage 3 Suspension System is a complete, performance-grade suspension upgrade for 2024-2025 Toyota Tacoma 4WD owners seeking improved ride quality, suspension travel, and clearance for larger wheels or tires. The adjustable coil-over front end lets you dial in a 1.25" to 3.00" lift over stock - ideal for enhanced ground clearance, approach angles, and wheel/tire clearance without compromising drivability for daily use or off-road performance. Billet upper control arms with high-articulation joints and a diff-drop bracket maintain proper suspension geometry and CV-axle alignment, ensuring durability and preventing binding when the suspension cycles through full travel.

At the rear, triple-rate coils plus tuned remote-reservoir shocks give a balanced ride: compliant and comfortable under light load, yet firm and supportive under cargo, gear, or off-road loads. The triple-rate design ensures smooth droop and ride behavior, while the firm overload rate prevents sagging, bottom-outs, or instability when the truck is loaded or traversing rough terrain. The kit's robust construction and corrosion-resistant components make it a suitable foundation for overland builds, lifted-stance trucks, or off-road rigs - while also retaining enough refinement for everyday driving.

Because the system is fully bolt-on and uses factory mounting points, installation is straightforward. After installation, Tacoma owners gain noticeably improved suspension travel, ride quality, and clearance - making K53293S a strong choice for drivers who want a comprehensive suspension upgrade rather than piecemeal components. For those fitting larger wheels/tires or preparing for overlanding/off-road use, this Stage 3 system offers a balanced, durable, and performance-oriented solution.
