ICON K53292 1.25-3" Lift Stage 2 Suspension System Billet for 2024-2025 Toyota

Vehicle Fitment

• 2024-2025 Toyota Tacoma (SR, SR5, TRD Sport, TRD Off-Road, TRD Pro - 4WD, 2.4L I4 Turbo)
• 2024-2025 Toyota Tacoma (SR, SR5, TRD Sport - 2WD, 2.4L I4 Turbo - see Fitment Notes)

Fitment Notes

• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
• Will not fit Tacoma submodels equipped with rear leaf springs.
• Not compatible with 2024-2025 Toyota Tacoma TRD PreRunner or Limited AWD.
• 4WD models require front differential drop kit (Part# 55160) - included in this kit.
• For 2WD models (SR, SR5, TRD Sport), the front differential drop kit (Part# 55160) is not needed; remaining components can be used with full system functionality. 2WD-specific kits are coming soon.
• Included rear shocks are compatible with 0-1" of rear lift over stock.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation.

Features

• 2.5 Series internal reservoir front coilovers with vehicle-specific valving for improved wheel travel and damping over stock.
• Adjustable front lift height from 1.25-3" over stock, supporting larger, more aggressive wheel and tire combinations.
• Billet aluminum UCAs (6061 aircraft-grade CNC machined) with corrected caster/camber geometry and improved component clearance.
• Patented ICON Delta Joint PRO (U.S. Pat. 10,731,700) - serviceable and rebuildable with 90° total articulation for full bump and droop travel without bind.
• Front differential drop brackets with polyurethane mounting bushings maximize CV joint operating angle and available wheel travel on 4WD models.
• CAD-plated coilover shock bodies with 7/8" shafts for corrosion resistance and long-term durability.
• FK Rod End bearings on UCAs for extended longevity and minimal deflection.
• 2.0 Aluminum Series internal reservoir rear shocks with vehicle-specific valving to balance front-to-rear performance.

Specifications

• Front Lift Height: 1.25-3" over stock (stock-equipped vehicle)
• Rear Lift Height: 0-1" over stock
• Front Shock Body Diameter: 2.5" | Shaft: 7/8"
• Rear Shock Series: 2.0 Aluminum Series Internal Reservoir | Shaft: 5/8"
• UCA Material: 6061 Billet Aluminum, CNC Machined
• Ball Joint: ICON Delta Joint PRO - Serviceable & Rebuildable
• Recommended Max Tire Size: 33" x 11.50" (larger sizes may require fender trimming)
• Recommended Wheel Option 1: 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Wheel Option 2: 18x9" w/ 6.00" Backspace / 25mm Offset
• Shipping Weight: 86 lbs
• UPC: 840103428956

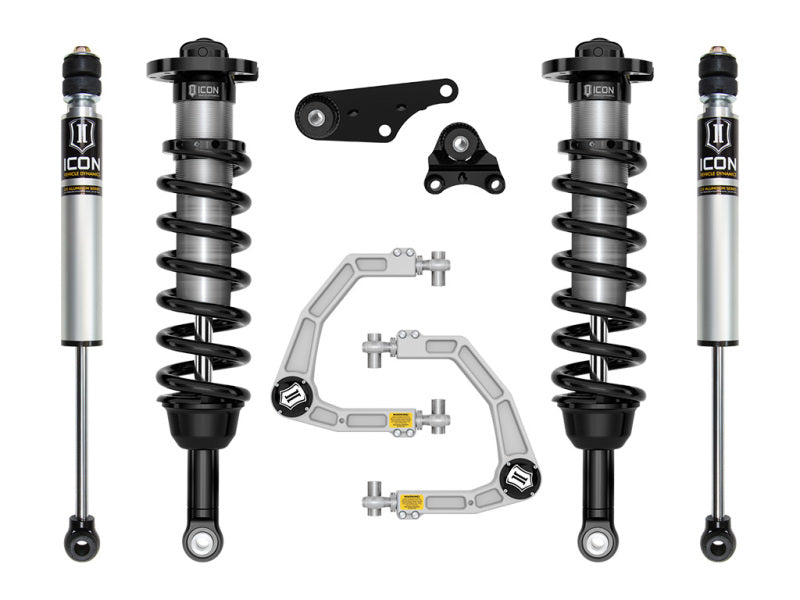

Included Components

• 1x 2.5 VS Internal Reservoir Front Coilover Kit (Part# 58680)
• 1x Billet UCA Delta Joint PRO Kit (Part# 58552DJ)
• 1x Front Differential Drop Kit - 4WD (Part# 55160)
• 2x 2.0 VS Internal Reservoir Rear Shocks (Part# 56518)

Product Description

The ICON K53292 Stage 2 Suspension System is a complete performance lift kit engineered specifically for the 2024-2025 Toyota Tacoma. It pairs vehicle-specific 2.5 Series internal reservoir front coilovers with billet aluminum upper control arms and a front differential drop kit to deliver 1.25-3" of adjustable front lift while maximizing available wheel travel and preventing CV bind. The billet UCAs with Delta Joint PRO correct front-end geometry with improved caster and camber adjustment, allowing for full bump and droop suspension movement without bind.

Rounding out the system, 2.0 Aluminum Series internal reservoir rear shocks provide balanced, vehicle-specific tuning from front to rear for confident on- and off-road performance. This kit is ideal for Tacoma owners who want a meaningful lift, improved trail capability, and a noticeable upgrade in ride quality over stock - without compromising daily drivability.
