ICON K53365T Stage 5 Lift Kit Tubular UCA for 2024-2025 Toyota Land Cruiser 250

Vehicle Fitment

• 2024-2025 Toyota Land Cruiser 250 Series (4WD, 2.4L Turbocharged I4 Hybrid)

Fitment Notes

• Designed specifically for the 2024-2025 Toyota Land Cruiser 250 Series platform only; does not fit Land Cruiser 300 Series or prior 200 Series.
• Advanced Driver Assistance Systems (ADAS) recalibration is required after installation.
• An adjustable rear track bar is recommended (not included) to realign the rear axle after install.
• Advertised lift height ranges are based on a stock-equipped vehicle; added accessories or weight may alter lift range.
• OEM wheels and tires fitment is retained.

Features

• 2.5 Series front coilovers with remote reservoirs deliver superior damping, increased shock oil volume, and enhanced heat dissipation to prevent fade under hard use.
• Front lift is height adjustable from 1.25-3" over stock, accommodating larger wheel and tire combinations.
• Tubular upper control arms with patented Delta Joint PRO (U.S. Pat. 10,731,700) provide full bump and droop travel with zero bind and 90° of total articulation.
• Front differential drop kit maximizes available wheel travel and prevents CV bind at lifted heights.
• Dual-rate rear coil springs deliver on-road comfort with a firmer overload rate for superior bottoming resistance off-road, plus 2" of rear lift.
• 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide enhanced rear damping with vehicle-specific valving.
• Polyurethane differential mounting bushings reduce differential movement under load compared to OE rubber bushings.

Specifications

• Position: Full Front and Rear Suspension System
• Front Lift Range: 1.25-3" over stock (adjustable)
• Rear Lift Height: 2" over stock
• Front Coilovers: 2.5 Series, Remote Reservoir, 7/8" Shaft, CAD Plated Body
• Rear Shocks: 2.5 Aluminum Series, Remote Reservoir, 7/8" Shaft, with Integrated Bump Zone
• Upper Control Arms: Tubular Steel with Delta Joint PRO
• Rear Springs: Dual-Rate Coil, 2" Lift
• Recommended Aftermarket Tires: 33x11.50" (Larger tires may require fender trimming)
• Recommended Aftermarket Wheels: 17x8.5 with 6.32" Backspace / 40mm Offset; 18x9 with 6.6" Backspace / 40mm Offset
• Shipping Weight: 183 lbs

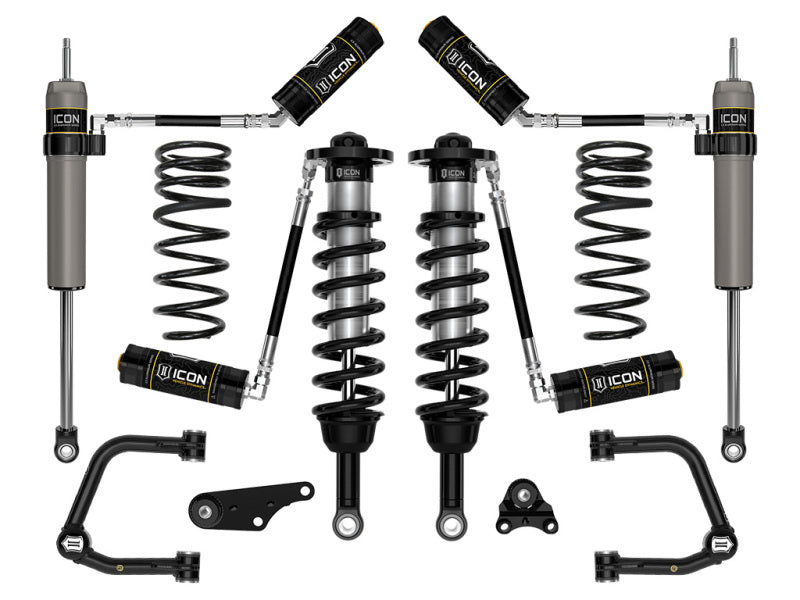

Included Components

• 1x 2024-2025 Land Cruiser 250 Series Front 2.5 VS Remote Reservoir Coilover Kit (58791)
• 1x 2024-2025 Land Cruiser 250 / GX550 / Tacoma / 4Runner Tubular UCA Delta Joint PRO Kit (58452DJ)
• 1x Front Differential Drop Kit (55160)
• 1x 2024-2025 Land Cruiser 250 / GX550 Rear 2.5 VS Remote Reservoir Shock Pair (57870P)
• 1x 2024-2025 Land Cruiser 250 / GX550 2" Dual-Rate Rear Coil Spring Kit (52752)
• 1x Complete hardware kit for full installation

Product Description

The ICON K53365T Stage 5 Suspension System is a comprehensive front and rear lift and performance upgrade engineered specifically for the 2024-2025 Toyota Land Cruiser 250 Series. The system is anchored by 2.5 Series remote reservoir front coilovers with adjustable lift from 1.25-3", paired with tubular upper control arms featuring the Delta Joint PRO for bind-free full-range articulation. A front differential drop kit is included to maximize wheel travel and protect CV joints at the lifted height, while polyurethane differential bushings reduce unwanted movement under load.

At the rear, dual-rate coil springs provide 2" of lift with a progressive spring rate that balances everyday comfort and off-road bottoming resistance. ICON's 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones complete the package with vehicle-matched valving front to rear. This Stage 5 system is ideal for Land Cruiser 250 owners seeking a significant capability upgrade that maintains daily drivability on- and off-road. Note that ADAS recalibration is required after installation.
