ICON 48602 2.5 EXP Coilover for 21-23 Ford Bronco HOSS 2.0 Front Lift

Vehicle Fitment

• 2021-2023 Ford Bronco (HOSS 2.0 Suspension Package, 4WD, all trims with HOSS 2.0)
• Excludes Bronco Raptor and models with non-HOSS 2.0 suspension
• Fitment confirmed through 2023. 2024-2025 coverage unconfirmed at time of listing.

Features

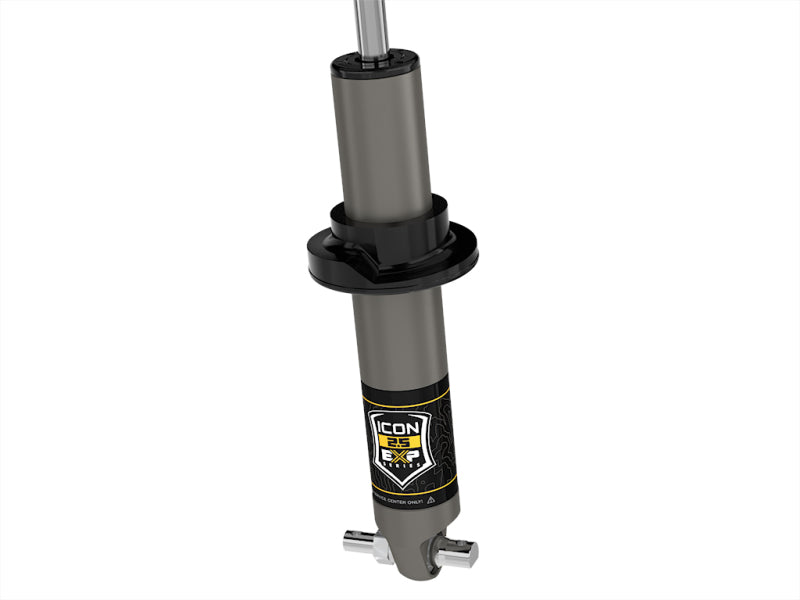

• Vehicle-specific 2.5 EXP Series front coilover shock for HOSS 2.0 Broncos
• Adjustable ride height with snap-ring grooves
• Provides approximately 0-2" front lift over stock
• 2.5" diameter aluminum shock body with internal reservoir
• 7/8" induction hardened, chrome-plated shock shaft
• Reuses factory coil spring and upper mount for cost efficiency
• PTFE-lined spherical bearing for reduced deflection and smooth travel
• 100% bolt-on design - no cutting or welding required
• Fully rebuildable and re-tunable design for longevity

Specifications

• Position: Front
• Type: EXP Series adjustable coilover shock
• Body Diameter: 2.5 in aluminum
• Lift Range: ~0-2 in front over stock
• Shaft Diameter: 7/8 in hardened steel
• Gas Charged: Yes
• Coil Spring: Uses OEM spring (not included)
• Sold individually - 2 required per vehicle

Included Components

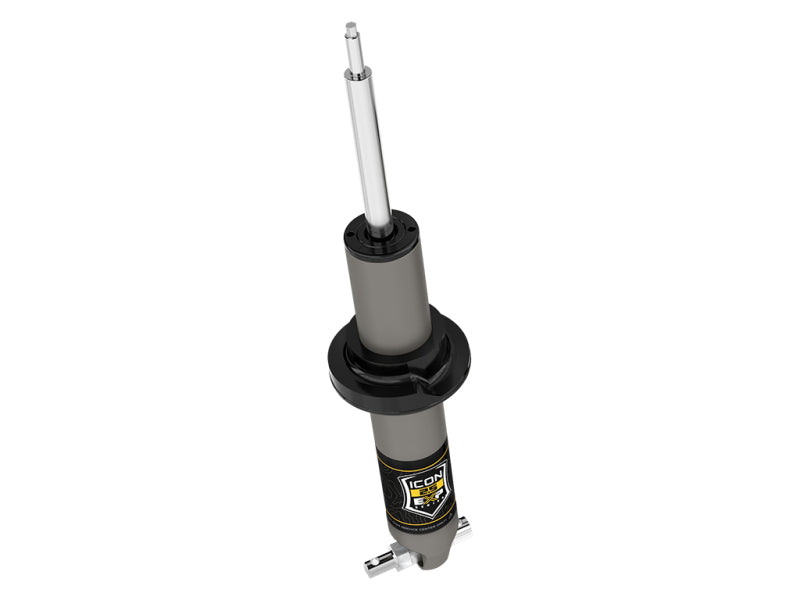

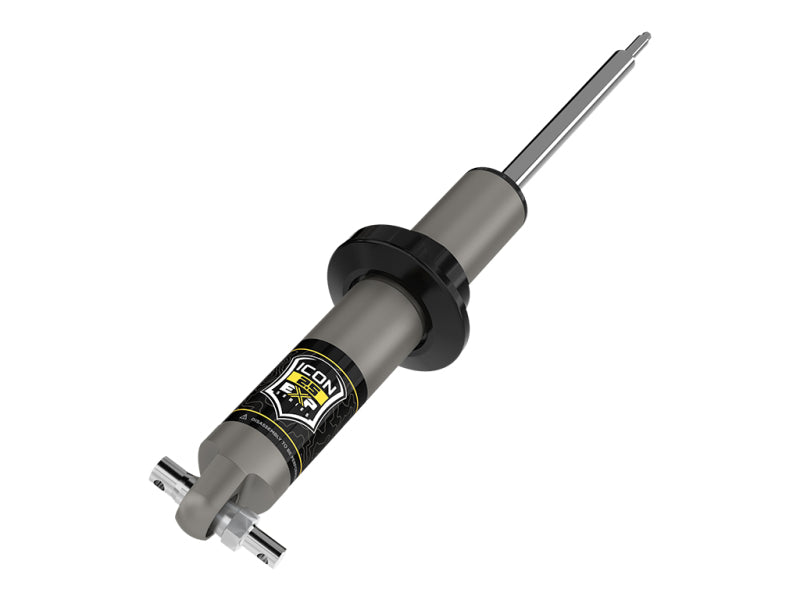

• 1x 2.5 EXP Front Coilover Shock (Part 48602)
• 1x 2.5 EXP Beauty Plate
• 1x Urethane Coil Seat
• 1x EXP Coil Mount Kit
• 1x 1/2-20 Flanged Nylock Nut
• 1x Ford-specific hardware kit

Product Description

The ICON 48602 2.5 EXP Coilover is a high-performance front suspension upgrade engineered specifically for 2021-2023 Ford Broncos equipped with the HOSS 2.0 suspension package. Built on a rugged 2.5-inch aluminum shock body with an internal reservoir, this coilover provides increased oil capacity and enhanced heat dissipation compared to stock shocks. Its valving is custom tuned for HOSS 2.0 applications to improve damping control, ride quality, and all-terrain capability without sacrificing on-road comfort.

Ride height can be fine-tuned from zero up to approximately 2 inches above stock using ICON's snap-ring groove system, allowing you to tailor your stance and tire clearance for your build. The coilover reuses the factory coil spring and upper mount, making installation straightforward and cost-effective. With a hardened 7/8-inch shaft and PTFE-lined spherical bearings, the 48602 delivers durable performance and smooth suspension articulation.

Designed to be fully bolt-on with no cutting or welding required, this coilover is serviceable and re-tunable, making it ideal for Bronco owners who want long-term performance and adaptability. Sold individually - two are required for a complete front upgrade. Confirm your Bronco's suspension package before ordering, as compatibility is specific to HOSS 2.0 models.
