ICON 95002 3.0 Series RR CDCV Front Coilover Kit 1-3" for 2017-2020 Ford Raptor

Vehicle Fitment

• 2017-2020 Ford F-150 Raptor (Gen 2, All Cab Styles, All Engines) - 1-3" front lift range

Fitment Notes

• Fits Gen 2 Ford Raptor (2017-2020) ONLY - does not fit Gen 1 (2010-2014) or Gen 3 (2021+) Raptor
• 2019-2020 Raptor models equipped with factory Live Valve shocks REQUIRE ICON Damper Interface Device part number 95199 - allows vehicle drive modes to operate correctly with OEM shocks removed; sold separately
• Height-adjustable threaded body provides 1-3" of front lift height - adjust to desired height without disassembly
• Lift heights are based on a stock-equipped vehicle - added accessories or cargo will reduce actual lift height

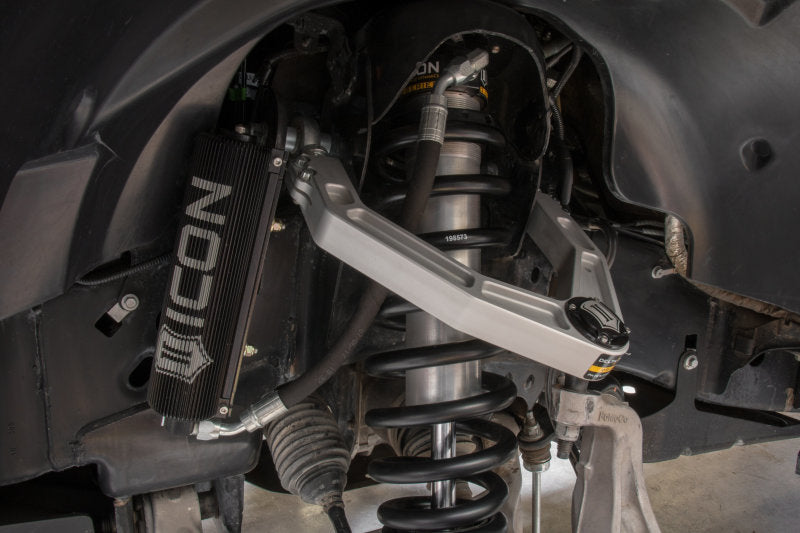

• Direct bolt-in installation to OEM front shock location - no drilling, cutting, or welding required
• OEM wheels and tires fit with these coilovers installed at most lift heights
• Recommended aftermarket tires: 35" x 12.50" - larger tires may fit with fender trimming
• Shocks are fully serviceable and rebuildable
• ICON coil springs carry a Lifetime Guarantee against sagging and breakage

Features

• 3.0 Series shock body delivers 50% greater piston surface area in the ride zone compared to the factory Gen 2 Raptor shocks - translating into dramatically improved damping ability, stability, and vehicle control on- and off-road

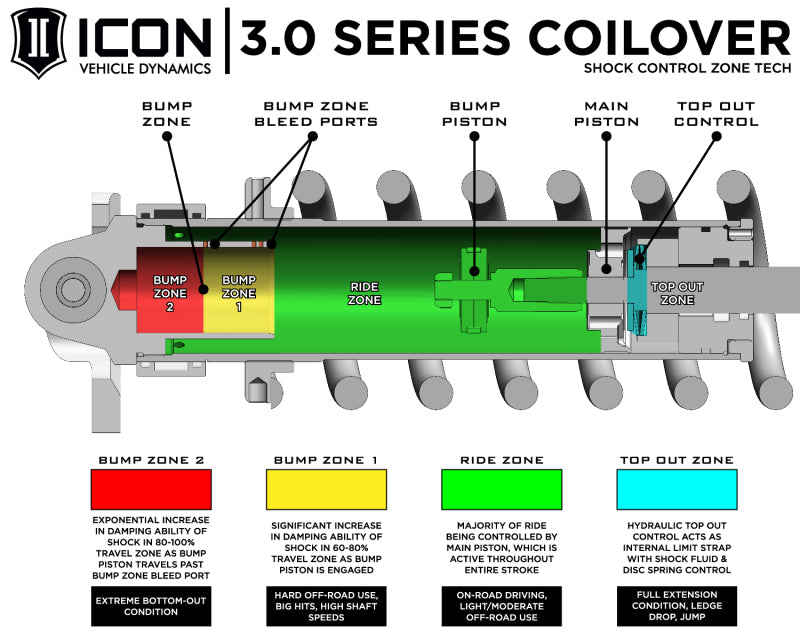

• ICON multi-stage hydraulic Bump Zone provides an exponential increase in damping during the last 40% of compression travel - protecting against harsh bottom-outs during aggressive high-speed off-road use
• ICON CDC Valve (CDCV) delivers 10 externally adjustable compression damping settings - tune from soft to hard at the reservoir knob without tools, on-vehicle, for different terrain types and load configurations

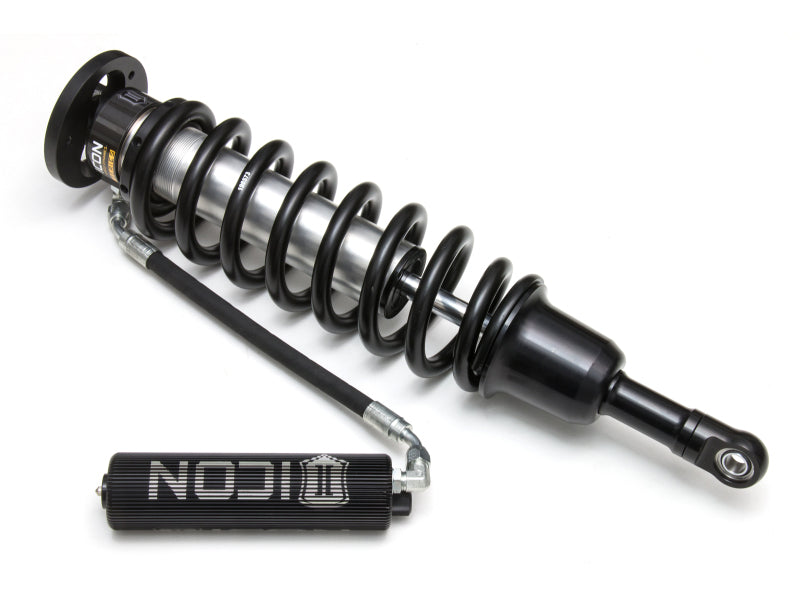

• 10" finned aluminum remote reservoirs provide over 200% more surface area for heat dissipation compared to standard reservoirs - maintaining consistent, fade-free damping during sustained hard use
• Barreled coil spring design maximizes shaft travel while allowing more efficient packaging in the Raptor's tighter front suspension geometry
• ICON-engineered vehicle-specific valving and spring rates deliver exceptional on-road ride quality balanced with off-road capability
• FK Rod End COM12 spherical lower bearings ensure maximum strength and durability under hard off-road loads
• Heavy-duty CNC machined shock shafts; CAD-plated shock body with hard-anodized piston and top cap; 100% rebuildable and re-tunable for an immeasurable service life

Specifications

• Position: Front
• Quantity: Pair (2 coilovers)
• Lift Range: 1-3" (height-adjustable threaded body) - stock-equipped vehicle
• Shock Body Diameter: 3.0"
• Reservoir Type: Remote Reservoir - 10" Finned Aluminum
• Bump Zone: Yes - multi-stage hydraulic, exponential increase in last 40% of compression travel
• Damping Adjustment: CDCV - 10 externally adjustable compression damping settings
• Lower Mount Type: FK Rod End COM12 Spherical Bearing
• Spring Type: Barreled ICON-Engineered Coil Springs
• Spring Warranty: Lifetime Guarantee against sagging and breakage
• Body Finish: CAD-Plated, Hard-Anodized Piston and Top Cap
• OEM Wheel/Tire Fitment: Yes (most configurations)
• Shock Oil: Premium Grade 5WT
• Shipping Weight: 72.0 lbs
• Shipping Dimensions: 27.0" L x 19.0" W x 13.0" D
• UPC: 840103423180
• Country of Origin: United States

Included Components

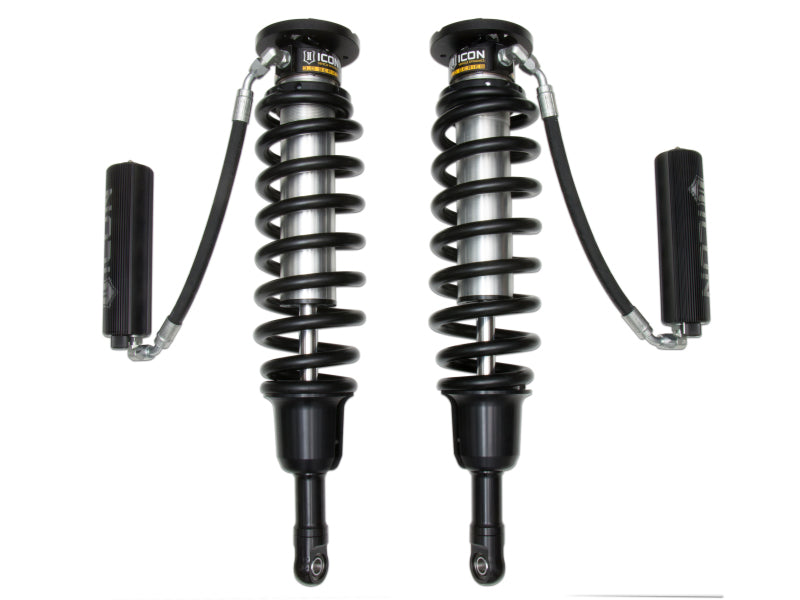

• 2x V.S. 3.0 Series Front Remote Reservoir Coilover Shocks with CDCV
• 2x Barreled ICON-Engineered Coil Springs
• 2x 10" Finned Aluminum Remote Reservoirs
• 2x Compression Damping Control Valves (CDCV)
• FK Rod End Spherical Bearings and Application-Specific Mounting Hardware
• All required hardware for installation
• Note: 2019-2020 Raptor with factory Live Valve requires ICON Damper Interface Device #95199 - sold separately

Product Description

The ICON 95002 is a vehicle-specific V.S. 3.0 Series front remote reservoir coilover kit with CDCV, engineered exclusively for the 2017-2020 Ford F-150 Raptor (Gen 2). ICON's engineers identified that the Gen 2 Raptor's raised chassis shock mounting points created an opportunity for significantly more shaft travel than prior generations - and designed the 95002 around exactly that. The result is a 3.0 Series coilover with the longest available travel for this platform, built around a barreled coil spring for efficient packaging and a 10" finned aluminum remote reservoir that provides over 200% more cooling surface area than a standard reservoir, ensuring consistent damping performance during sustained high-speed desert running or trail use.

In the ride zone, the 3.0 Series piston delivers 50% greater damping ability over the factory Gen 2 Raptor shocks, and the multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance during the last 40% of compression travel - a critical feature for drivers who run the Raptor at speed over rough terrain. The 10-position CDCV allows on-vehicle compression damping adjustment from soft to hard, tunable without tools at the reservoir. Height is adjustable from 1-3" over stock via the threaded body. Important note: 2019-2020 Raptors equipped with factory Live Valve shocks require ICON's Damper Interface Device (#95199), sold separately, to maintain correct operation of the vehicle's drive modes. All shocks are 100% rebuildable and re-tunable for long-term serviceability, and ICON's coil springs carry a Lifetime Guarantee against sagging and breakage.
