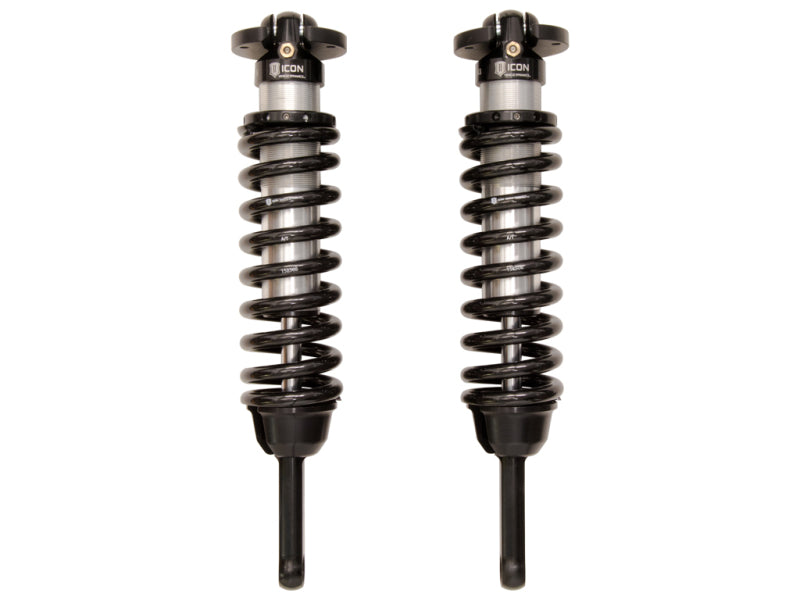

ICON 58647 2.5 EXT Travel Coilover for 10-24 4Runner/FJ Cruiser/GX460 0-3.5"Lift

Vehicle Fitment

• 2010-2024 Toyota 4Runner (2WD/4WD)
• 2010-2014 Toyota FJ Cruiser (4WD)
• 2010-2023 Lexus GX460 (4WD)

Features

• Adjustable 0-3.5" front lift height
• 2.5" diameter internal reservoir coilovers
• Vehicle-specific valving for optimal performance
• Increased wheel travel for enhanced off-road capability
• Billet aluminum upper mount with 5/8" PTFE-lined spherical bearing
• Chrome-silicon coil springs for durability
• Cad-plated threaded body for corrosion resistance
• 100% rebuildable and revalveable design

Specifications

• Shock body diameter: 2.5"
• Spring rate: 700 lb/in
• Internal reservoir pressure: 250 PSI nitrogen-charged
• Mounting: Billet aluminum upper mount, lower eyelet
• Compatibility: Requires aftermarket upper control arms for extended travel
• Includes sway bar relocation brackets
• Made in the USA

Included Components

• 1x ICON 58647 2.5 EXT front coilover
• 1x Billet aluminum upper mount
• 1x Sway bar relocation bracket
• 1x Coilover assembly with internal reservoir

Product Description

The ICON 58647 2.5 EXT Travel Coilover is engineered to provide enhanced off-road performance and on-road comfort for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460 models. With an adjustable 0-3.5" front lift height, this coilover allows for the use of larger, more aggressive wheel and tire combinations, making it ideal for enthusiasts seeking improved ground clearance and suspension articulation.

Featuring a 2.5" diameter internal reservoir design, vehicle-specific valving, and increased wheel travel, the ICON 58647 delivers superior ride quality across a wide range of on and off-road conditions. The billet aluminum upper mount with a 5/8" PTFE-lined spherical bearing ensures durability and precise alignment, while the chrome-silicon coil springs and cad-plated threaded body provide long-lasting performance and corrosion resistance. This coilover is 100% rebuildable and revalveable, offering flexibility for future upgrades or tuning adjustments.
