ICON 58570DJ Billet UCA Delta Joint Kit for 2008-2021 Toyota Land Cruiser 200

Vehicle Fitment

• 2008-2021 Toyota Land Cruiser 200 Series (UZJ200/URJ200/GRJ200, 4WD)

Fitment Notes

• Compatible with factory wheels and tires - no trimming or modifications required at stock fitment
• Recommended aftermarket wheels: 17x8.5" with maximum 5.75" backspace
• Recommended aftermarket tires: 34x10.50"
• Sold as a kit - includes both upper control arms and all required installation hardware
• Professional installation and a full wheel alignment are required after installation

Features

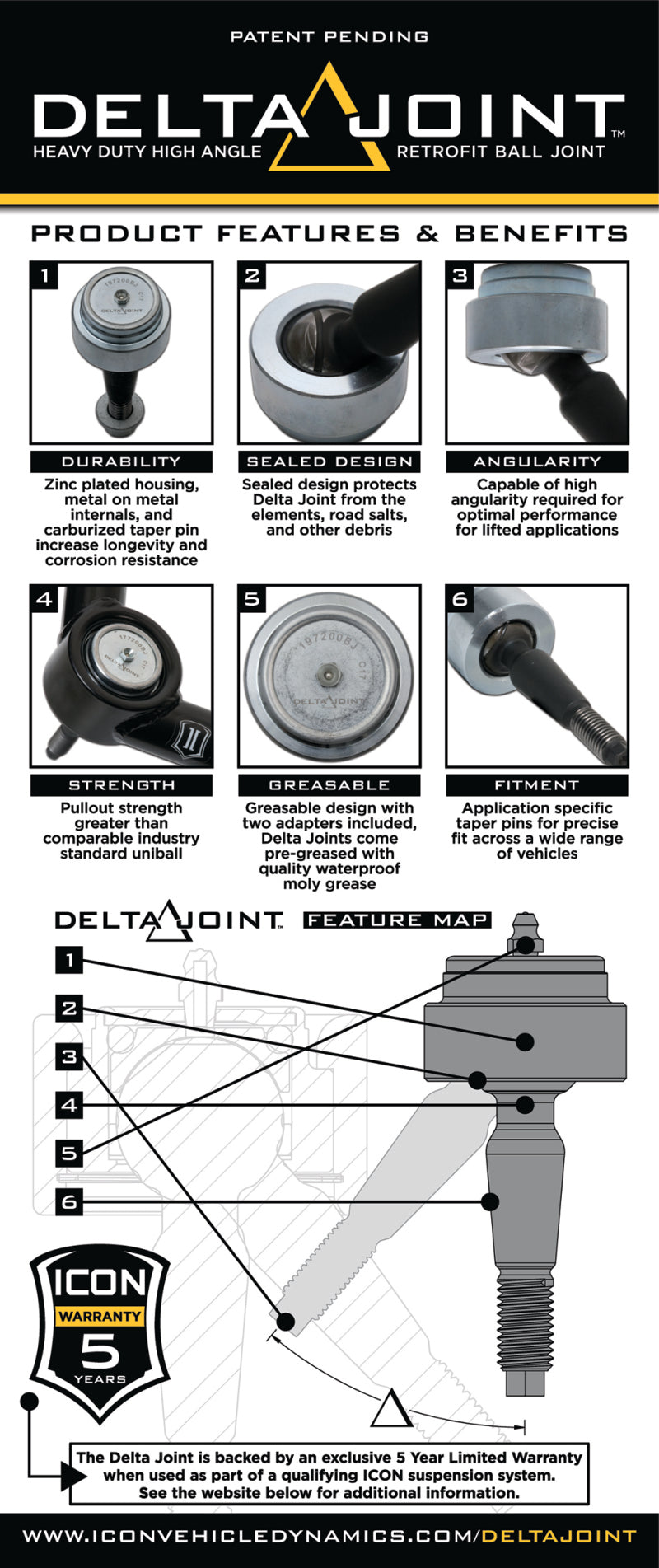

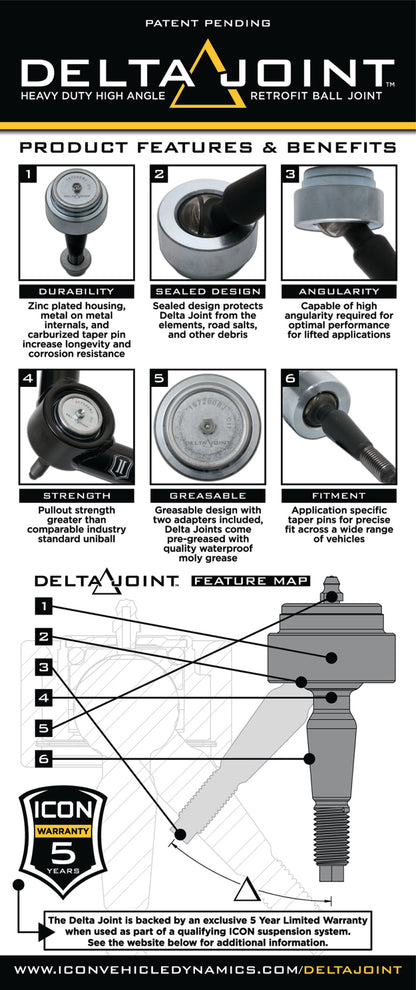

• ICON patented Delta Joint combines the articulation range of a uniball with the sealed, weatherproof durability of a conventional ball joint
• Delta Joint features a zinc plated housing, tough grease seal, and greaseable metal-on-metal construction for noise-free long-term operation
• CNC machined from 6061 billet aluminum using a hybrid H-beam cross-section for maximum strength-to-weight ratio
• Matte anodized finish for exceptional corrosion resistance - outperforms standard powder coat in harsh environments

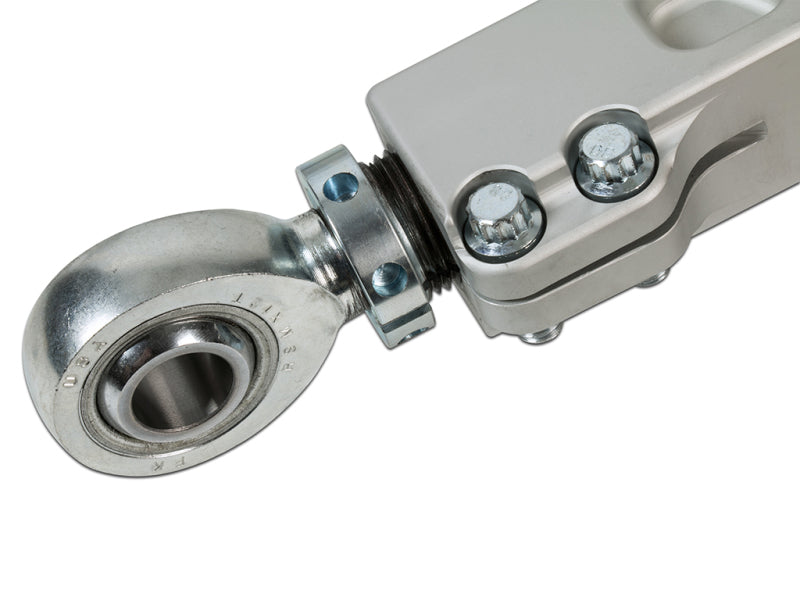

• On-vehicle caster and camber adjustability via double adjuster sleeve with PTFE-lined 3/4" FK rod ends
• Extends front suspension droop travel and increases spring bucket clearance over the factory UCA
• Made in USA

Specifications

• Product Type: Billet Aluminum Upper Control Arm Kit
• Ball Joint Type: ICON Delta Joint (greaseable, sealed)
• Construction: CNC Machined 6061 Billet Aluminum
• Finish: Matte Anodized
• Rod Ends: PTFE-Lined 3/4" FK Rod Ends
• Adjustability: On-Vehicle Caster and Camber (double adjuster sleeve)
• Compatible Platform: Toyota Land Cruiser 200 Series (2008-2021, 4WD)
• Factory Wheels/Tires: Compatible
• Country of Origin: USA
• Sold as: Kit (pair of UCAs + hardware)

Included Components

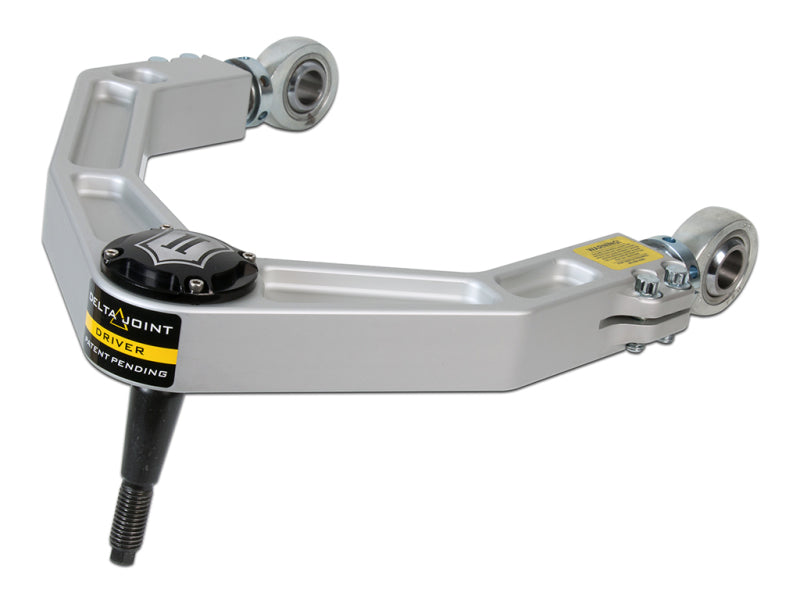

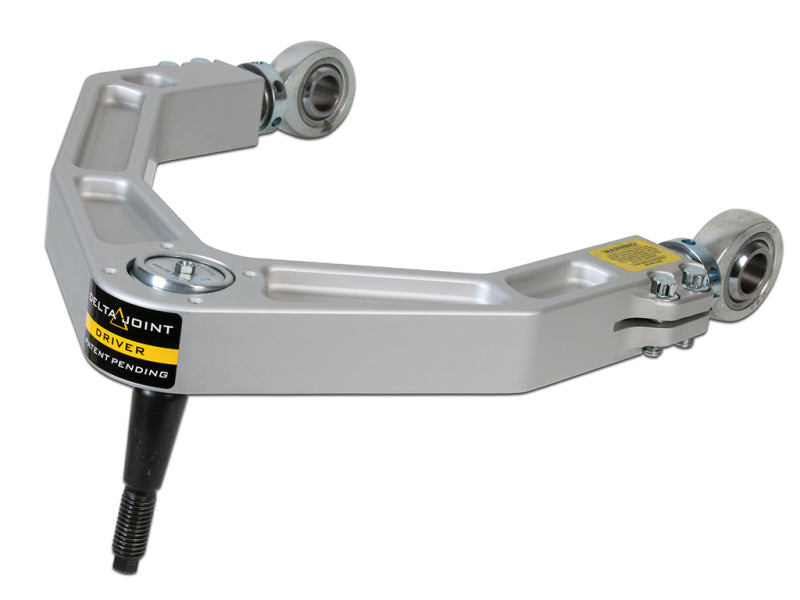

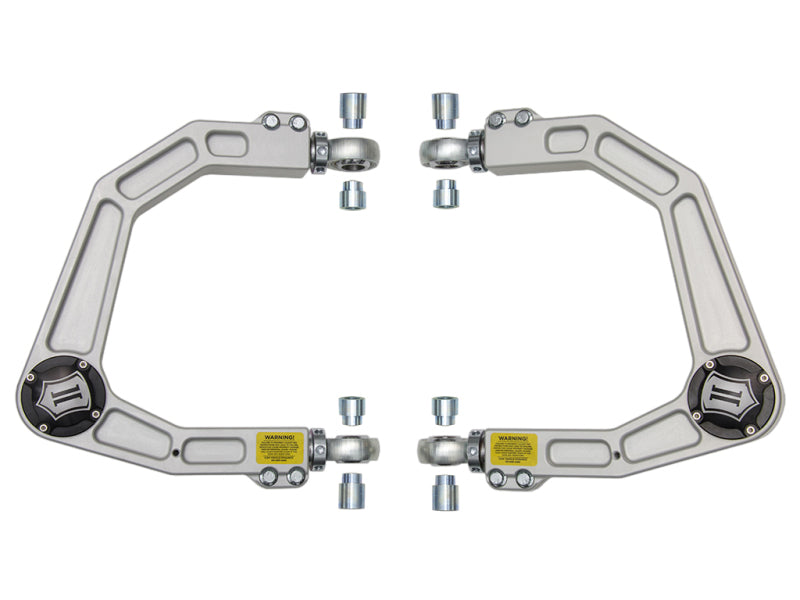

• 2x ICON Billet Aluminum Upper Control Arms with Delta Joint
• PTFE-Lined FK Rod Ends

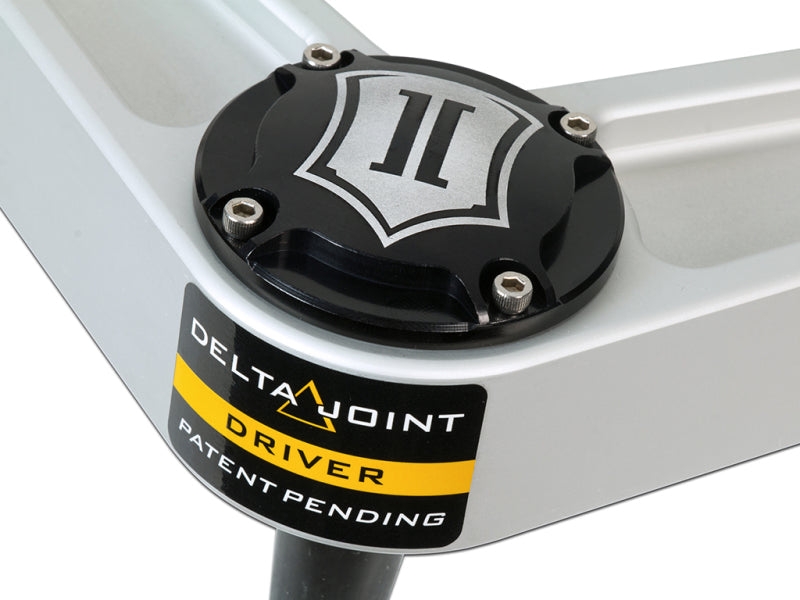

• Delta Joint Cover Caps (O-ring sealed)
• All Required Mounting Hardware
• Installation Instructions

Product Description

The ICON 58570DJ is a billet aluminum upper control arm kit with Delta Joint ball joints engineered for the 2008-2021 Toyota Land Cruiser 200 Series. The factory UCAs on the Land Cruiser 200 are a limiting factor for suspension travel and geometry correction when running lifted coilovers or extended travel shocks - replacing them with the 58570DJ unlocks extended droop travel, improved spring bucket clearance, and the ability to dial in caster and camber for proper front-end alignment at any lift height. The on-vehicle adjustability is achieved through ICON's double adjuster sleeve design, which allows for caster and camber changes without removing the arms from the vehicle.

The core of these UCAs is ICON's patented Delta Joint - a sealed, greaseable ball joint that combines the high-angle articulation of a uniball with the weatherproof durability of a conventional ball joint. Unlike an exposed uniball, the Delta Joint's zinc plated housing and grease seal protect the metal-on-metal contact surfaces from moisture and contamination, significantly extending service life in daily-driven applications. Each arm is CNC machined from 6061 billet aluminum and finished with matte anodization for exceptional corrosion resistance. Made in the USA.
