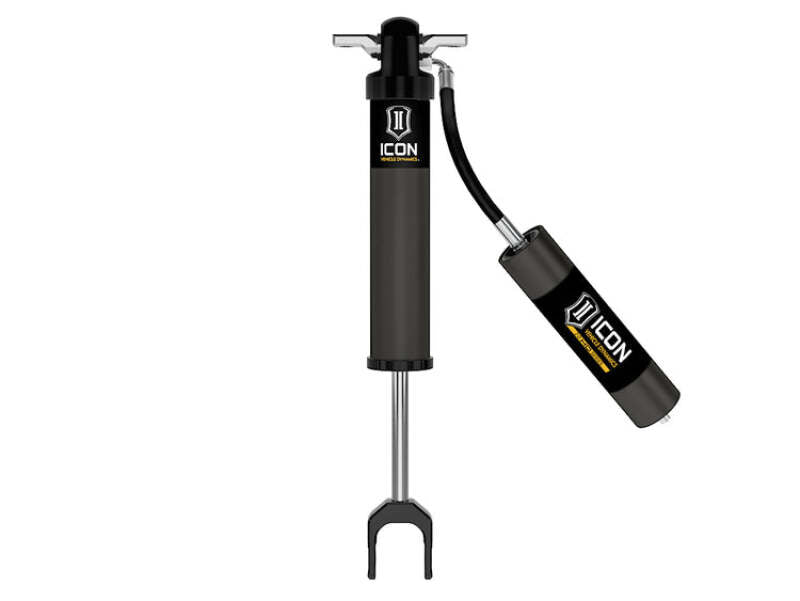

ICON 76551RP 2.0 HD Series Passenger Front Shock 0-3.5" 2011-2026 GM 2500/3500

Vehicle Fitment

• 2011-2026 Chevrolet Silverado 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 Chevrolet Silverado 2500 ZR2 (4WD) - 0-2" front lift range
• 2011-2026 Chevrolet Silverado 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 AT4X (4WD) - 0-2" front lift range
• 2011-2026 GMC Sierra 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range

Fitment Notes

• PASSENGER SIDE ONLY - this shock mounts on the passenger (right) front only; ICON part number 76551RD (driver side) is required to complete the front pair
• Sold individually - one unit; must be ordered alongside 76551RD for a complete front installation
• Extended travel length REQUIRES aftermarket front upper control arms - OEM UCAs will NOT work with this shock
• Most submodels compatible with 0-3.5" of front lift over stock
• Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X limited to 0-2" of front lift
• Lift height is based on a stock-equipped vehicle - added accessories will reduce actual lift height
• Shocks are fully serviceable and rebuildable

Features

• ICON 2.0 HD Series features hard-anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings - significantly improving pull-apart and side load strength versus the standard ICON 2.0 Aluminum Series
• Remote reservoir dramatically increases shock oil volume and heat dissipation surface area, preventing overheating and cavitation during sustained hard use - reservoir is oriented specifically for the passenger side installation
• Extended travel shock length provides maximum front wheel travel when paired with compatible aftermarket upper control arms
• One-piece linear/digressive piston design with vehicle-specific valving for superior on- and off-road performance and ride quality
• Press-in bonded rubber bushing/bar pin upper assembly provides factory-like fitment and damps road vibration for a quiet, comfortable ride
• Forged aluminum lower mounting clevis maintains factory-like fitment and ensures maximum structural strength
• 5/8" chrome-plated hardened steel shaft resists corrosion and pitting under hard use
• Nitrile rubber top-out bumper for noise-free operation at full droop; 100% rebuildable and re-tunable

Specifications

• Position: Passenger (Right) Front
• Sold: Individually - driver side 76551RD also required
• Lift Range: 0-3.5" (most submodels) / 0-2" (ZR2, AT4X)
• Shock Type: Extended Travel
• Shock Body Diameter: 2.0" HD (Hard-Anodized 6061 Aluminum, Increased Wall Thickness)
• Shaft Diameter: 5/8" Chrome-Plated Hardened Steel
• Reservoir Type: Remote Reservoir (Passenger Side Oriented)
• Damping Adjustment: None - fixed valving
• Upper Mount Type: Press-In Bonded Rubber Bushing / Bar Pin Assembly
• Lower Mount Type: Forged Aluminum Clevis
• Top-Out Bumper: Nitrile Rubber
• Upper Control Arms Required: Yes - aftermarket UCAs required
• Shipping Weight: 13.0 lbs
• Shipping Dimensions: 33.0" L x 9.0" W x 6.0" D
• UPC: 840103433365
• Country of Origin: United States

Included Components

• 1x V.S. 2.0 HD Series Passenger Front Remote Reservoir Shock Absorber
• All required mounting hardware
• Note: Driver side shock 76551RD also required - sold separately

Product Description

The ICON 76551RP is the passenger-side (right front) V.S. 2.0 HD Series remote reservoir shock absorber for the 2011-2026 Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD. Due to the remote reservoir's orientation on the shock body, ICON engineers the driver (76551RD) and passenger (76551RP) front shocks as separate, side-specific units - they cannot be swapped between sides. The 76551RP must be paired with the 76551RD to complete a full front installation. Both shocks share the same 2.0 HD platform features: hard-anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings for superior pull-apart and side load strength over the standard 2.0 Aluminum Series, plus a remote reservoir for increased oil volume and heat dissipation during sustained hard use.

The extended travel length requires aftermarket upper control arms - OEM UCAs are incompatible. Vehicle-specific valving is tuned by ICON engineers for the GM HD platform's significant spring rates and weight characteristics. ZR2 and AT4X submodels are limited to a 0-2" front lift range due to factory geometry constraints. All shocks are 100% rebuildable and re-tunable for long-term serviceability.
