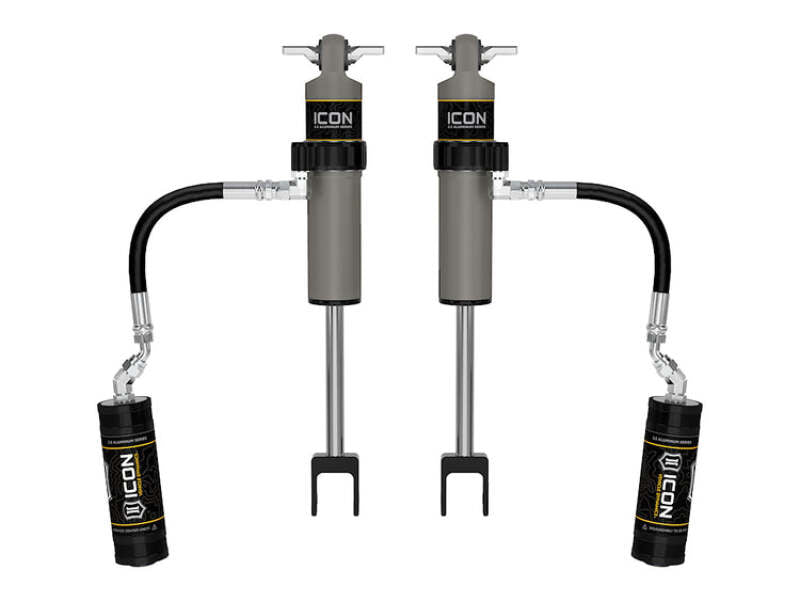

ICON 71707P 2.5 VS Ext Travel Front RR Shocks 0-3.5" for 2011-2026 GM 2500/3500

Vehicle Fitment

• 2011-2026 Chevrolet Silverado 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 Chevrolet Silverado 2500 ZR2 (4WD) - 0-2" front lift range
• 2011-2026 Chevrolet Silverado 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 AT4X (4WD) - 0-2" front lift range
• 2011-2026 GMC Sierra 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range

Fitment Notes

• Extended travel length REQUIRES aftermarket front upper control arms - ICON Delta Joint Pro UCAs strongly recommended; OEM UCAs will NOT work with this shock
• Most submodels compatible with 0-3.5" of front lift over stock
• Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X limited to 0-2" of front lift due to factory geometry constraints
• Lift height is based on a stock-equipped vehicle - added accessories will reduce actual lift height
• For 10-position knob-adjustable compression damping, upgrade to ICON part number 71707CP (CDCV); for dual-speed adjustment see 71707XP (CDXS)
• Shocks are fully serviceable and rebuildable
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation

Features

• Extended travel shock length paired with aftermarket upper control arms unlocks maximum front wheel travel for the GM HD platform
• Vehicle-specific shock length and valving custom-tuned for the 2011-2026 GM 2500/3500 HD front suspension for superior damping and ride quality over stock
• ICON's internal Bump Zone increases damping by 20% as the shock approaches full compression - preventing harsh bottom-outs under high-velocity impacts
• Remote reservoir dramatically increases shock oil volume and heat dissipation surface area, preventing overheating and fade during sustained hard use
• 2.5" diameter shock body with increased piston area over stock delivers superior damping ability across all terrain types
• One-piece hard anodized, impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 7/8" diameter induction-hardened, chrome-plated shock shaft; press-in bonded rubber bushing/bar pin assembly damps road vibration for OE factory-type fitment
• 100% rebuildable and re-tunable - fully serviceable for long-term ownership

Specifications

• Position: Front
• Lift Range: 0-3.5" (most submodels) / 0-2" (ZR2, AT4X) - stock-equipped vehicle
• Shock Type: Extended Travel
• Shock Body Diameter: 2.5"
• Shaft Diameter: 7/8" (0.875") Induction-Hardened, Chrome-Plated
• Reservoir Type: Remote Reservoir
• Bump Zone: Yes - internal, increases damping 20% at full compression
• Damping Adjustment: None - fixed valving (see 71707CP for CDCV, 71707XP for CDXS)
• Body Material: One-Piece Hard Anodized Impact Extruded Aluminum Cylinders with 6061 Aircraft-Grade Aluminum CNC Machined Components
• Shock Oil: Premium Grade 5WT
• Upper Control Arms Required: Yes - aftermarket UCAs required (ICON Delta Joint Pro recommended)
• Shipping Weight: 36.0 lbs
• Shipping Dimensions: 39.0" L x 15.0" W x 9.0" D
• UPC: 840103436272
• Country of Origin: United States

Included Components

• 2x V.S. 2.5 Aluminum Series Front Remote Reservoir Shock Absorbers
• All required mounting hardware
• Note: Aftermarket front upper control arms required - sold separately

Product Description

The ICON 71707P is a vehicle-specific V.S. 2.5 Aluminum Series front remote reservoir shock pair engineered for the 2011-2026 Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD. It uses an extended-travel shock length that - when paired with aftermarket upper control arms - unlocks maximum available front wheel travel on the GM HD platform. OEM UCAs are incompatible with this shock's extended length, and ICON's Delta Joint Pro HD UCAs are strongly recommended. The 2.5" remote reservoir shock body delivers increased oil volume and heat dissipation over stock, with an internal Bump Zone that adds 20% more damping force near full compression to prevent harsh bottom-outs during aggressive off-road use or heavy towing.

The 71707P features fixed, vehicle-specific valving - making it the clean, cost-effective option for GM HD owners who want maximum front travel and superior baseline damping without manual adjustability. For buyers who want on-vehicle compression damping adjustment, the 71707CP (CDCV - 10-position knob) and 71707XP (CDXS - independent high/low speed knobs) are available. ZR2 and AT4X submodels are limited to a 0-2" front lift range. ADAS recalibration is required after installation, and all shocks are 100% rebuildable and re-tunable for long-term serviceability.
