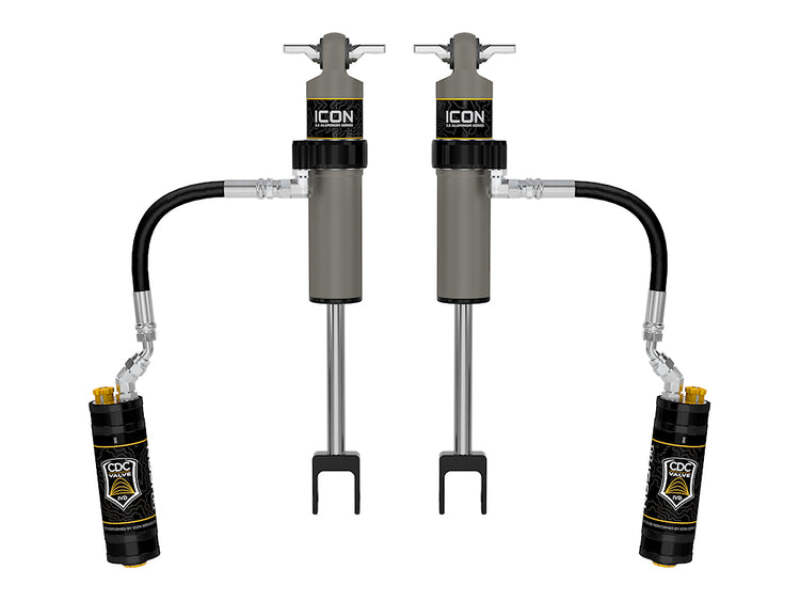

ICON 71707CP 2.5 VS Front RR Shocks CDCV 0-3.5" Lift 2011-2026 GM 2500/3500 HD

Vehicle Fitment

• 2011-2026 Chevrolet Silverado 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 Chevrolet Silverado 2500 ZR2 (4WD) - 0-2" front lift range
• 2011-2026 Chevrolet Silverado 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 AT4X (4WD) - 0-2" front lift range
• 2011-2026 GMC Sierra 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range

Fitment Notes

• Extended travel length REQUIRES aftermarket front upper control arms - ICON Delta Joint Pro UCAs strongly recommended; OEM UCAs will NOT work with this shock
• Most submodels compatible with 0-3.5" of front lift over stock
• Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X limited to 0-2" of front lift due to factory geometry constraints
• Lift height is based on a stock-equipped vehicle - added accessories will reduce actual lift height
• For CDXS dual-speed compression damping, see ICON part number 71707XP; for fixed-valving see 71707P
• OEM wheels and tires fit with these shocks installed on most applications - aftermarket wheels with appropriate backspace recommended on ZR2/AT4X
• Shocks are fully serviceable and rebuildable
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation

Features

• ICON Compression Damping Control Valve (CDCV) delivers 10 externally adjustable compression damping settings - from soft to hard - via a clearly engraved knob at the reservoir, tunable on-vehicle without disassembly
• Extended travel shock length unlocks maximum front wheel travel when paired with compatible aftermarket upper control arms
• ICON's internal Bump Zone increases damping by 20% as the shock approaches full compression - preventing harsh bottom-outs under high-velocity impacts
• Remote reservoir dramatically increases shock oil volume and heat dissipation surface area, preventing overheating and fade during sustained hard use
• 2.5" diameter shock body with increased piston area over stock delivers superior damping ability and ride quality across all terrain types
• One-piece hard anodized, impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 7/8" diameter induction-hardened, chrome-plated shock shaft; press-in bonded rubber bushing/bar pin assembly damps road vibration for OE factory type fitment
• 100% rebuildable and re-tunable - fully serviceable for long-term ownership

Specifications

• Position: Front
• Lift Range: 0-3.5" (most submodels) / 0-2" (ZR2, AT4X) - stock-equipped vehicle
• Shock Type: Extended Travel
• Shock Body Diameter: 2.5"
• Shaft Diameter: 7/8" (0.875") Induction-Hardened, Chrome-Plated
• Reservoir Type: Remote Reservoir
• Bump Zone: Yes - internal, increases damping 20% at full compression
• Damping Adjustment: CDCV - 10 externally adjustable compression damping settings, soft to hard
• CDCV Adjuster: Large engraved knob, 10 detented stops, on-vehicle adjustable
• Body Material: One-Piece Hard Anodized Impact Extruded Aluminum Cylinders with 6061 Aircraft-Grade Aluminum CNC Machined Components
• Shock Oil: Premium Grade 5WT
• Upper Control Arms Required: Yes - aftermarket UCAs required (ICON Delta Joint Pro recommended)
• Shipping Weight: 36.0 lbs
• Shipping Dimensions: 39.0" L x 15.0" W x 9.0" D
• UPC: 840103436289
• Country of Origin: United States

Included Components

• 2x V.S. 2.5 Aluminum Series Front Remote Reservoir Shock Absorbers with CDCV
• 2x Compression Damping Control Valves (CDCV)
• All required mounting hardware
• Note: Aftermarket front upper control arms required - sold separately

Product Description

The ICON 71707CP is a vehicle-specific V.S. 2.5 Aluminum Series front remote reservoir shock pair with CDCV, engineered for the 2011-2026 Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD. Unlike ICON's standard-travel front shocks, the 71707CP uses an extended-travel length that unlocks maximum front wheel travel - but this requires aftermarket upper control arms to function properly. OEM UCAs will not work with this shock, and ICON's Delta Joint Pro HD UCAs are strongly recommended. The CDCV adds 10-position externally adjustable compression damping, letting you dial in the ride from soft to hard with a clearly engraved knob at the reservoir across a full 0-3.5" front lift range on most submodels.

The 2.5" aluminum shock body with internal Bump Zone and remote reservoir delivers superior heat dissipation and fade resistance compared to stock, with 20% additional damping as the shock nears full compression to prevent harsh bottom-outs. ZR2 and AT4X submodels are limited to a 0-2" front lift range due to factory suspension geometry constraints. ADAS recalibration is required after installation. For dual-speed compression damping (independent high-speed and low-speed adjustment), upgrade to the ICON 71707XP (CDXS). All shocks are 100% rebuildable and re-tunable for long-term serviceability.
