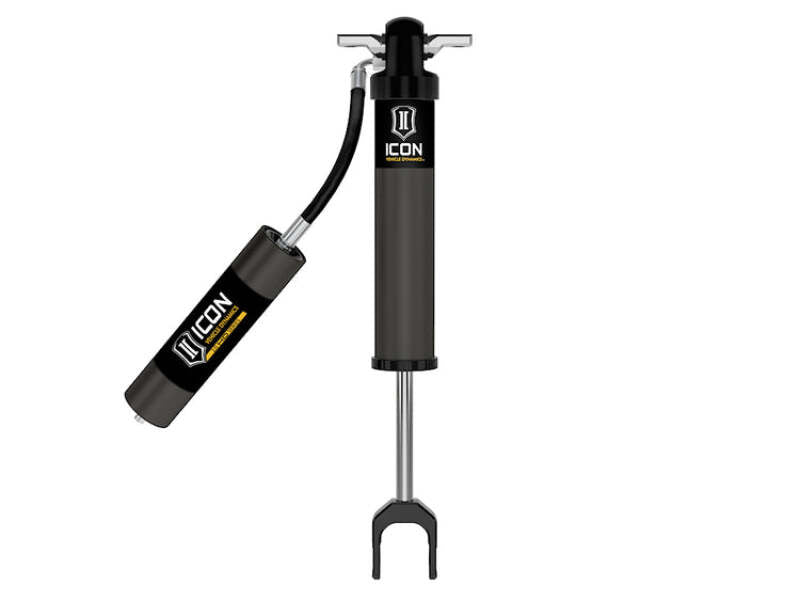

ICON 76551RD 2.0 HD Series Front RR Shock 0-3.5" for 2011-2026 GM 2500/3500 HD

Vehicle Fitment

• 2011-2026 Chevrolet Silverado 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 Chevrolet Silverado 2500 ZR2 (4WD) - 0-2" front lift range
• 2011-2026 Chevrolet Silverado 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 HD (All Cabs, All Engines, 2WD/4WD) - 0-3.5" front lift range
• 2011-2026 GMC Sierra 2500 AT4X (4WD) - 0-2" front lift range
• 2011-2026 GMC Sierra 3500 HD (All Cabs, All Engines, 2WD/4WD, SRW) - 0-3.5" front lift range

Fitment Notes

• Shocks are sold individually - a quantity of 2 is required per vehicle
• Extended travel length REQUIRES aftermarket front upper control arms - OEM UCAs will NOT work with this shock
• Most submodels compatible with 0-3.5" of front lift over stock
• Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X limited to 0-2" of front lift
• Lift height is based on a stock-equipped vehicle - added accessories will reduce actual lift height
• This is the remote reservoir (RD) version of the 76551 - adds a remote reservoir for increased oil volume and improved heat dissipation over the internal reservoir 76551
• Shocks are fully serviceable and rebuildable

Features

• ICON 2.0 HD Series features hard-anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings - significantly improving pull-apart and side load strength versus the standard ICON 2.0 Aluminum Series
• Remote reservoir dramatically increases shock oil volume and heat dissipation surface area, preventing overheating and cavitation during sustained hard use - the key upgrade over the internal reservoir 76551
• Extended travel shock length provides maximum front wheel travel when paired with compatible aftermarket upper control arms
• One-piece linear/digressive piston design with vehicle-specific valving for superior on- and off-road performance and ride quality
• Press-in bonded rubber bushing/bar pin upper assembly provides factory-like fitment and damps road vibration for a quiet, comfortable ride
• Forged aluminum lower mounting clevis maintains factory-like fitment and ensures maximum structural strength
• 5/8" chrome-plated hardened steel shaft resists corrosion and pitting under hard use
• Nitrile rubber top-out bumper for noise-free operation at full droop; 100% rebuildable and re-tunable

Specifications

• Position: Front
• Sold: Individually (qty 2 required per vehicle)
• Lift Range: 0-3.5" (most submodels) / 0-2" (ZR2, AT4X)
• Shock Type: Extended Travel
• Shock Body Diameter: 2.0" HD (Hard-Anodized 6061 Aluminum, Increased Wall Thickness)
• Shaft Diameter: 5/8" Chrome-Plated Hardened Steel
• Reservoir Type: Remote Reservoir
• Damping Adjustment: None - fixed valving
• Upper Mount Type: Press-In Bonded Rubber Bushing / Bar Pin Assembly
• Lower Mount Type: Forged Aluminum Clevis
• Top-Out Bumper: Nitrile Rubber
• Upper Control Arms Required: Yes - aftermarket UCAs required
• Shipping Weight: 13.0 lbs
• Shipping Dimensions: 33.0" L x 9.0" W x 6.0" D
• UPC: 840103433358
• Country of Origin: United States

Included Components

• 1x V.S. 2.0 HD Series Front Remote Reservoir Shock Absorber
• All required mounting hardware
• Note: Order quantity of 2 for complete vehicle installation

Product Description

The ICON 76551RD is the remote reservoir version of ICON's V.S. 2.0 HD Series front shock for the 2011-2026 Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD. It shares the same heavy-duty foundation as the internal reservoir 76551 - hard-anodized 6061 aluminum cylinders with increased wall thickness, taller DU bearings for superior pull-apart and side load strength, a press-in bonded rubber bar pin upper assembly, and a forged aluminum lower clevis - but adds a remote reservoir for meaningfully increased shock oil volume and heat dissipation. This prevents the overheating and cavitation that can lead to damper fade during extended hard use, making the 76551RD the better choice for drivers who tow heavy, haul frequently, or spend significant time off-road.

Like the 76551, the extended travel length requires compatible aftermarket upper control arms - OEM UCAs cannot work with this shock's length. The one-piece linear/digressive piston design uses vehicle-specific valving tuned by ICON engineers for the GM HD platform's unique spring rates and weight characteristics. These shocks are sold individually, so a quantity of 2 must be ordered per vehicle. ZR2 and AT4X submodels are limited to a 0-2" front lift range. All shocks are 100% rebuildable and re-tunable for long-term serviceability.
