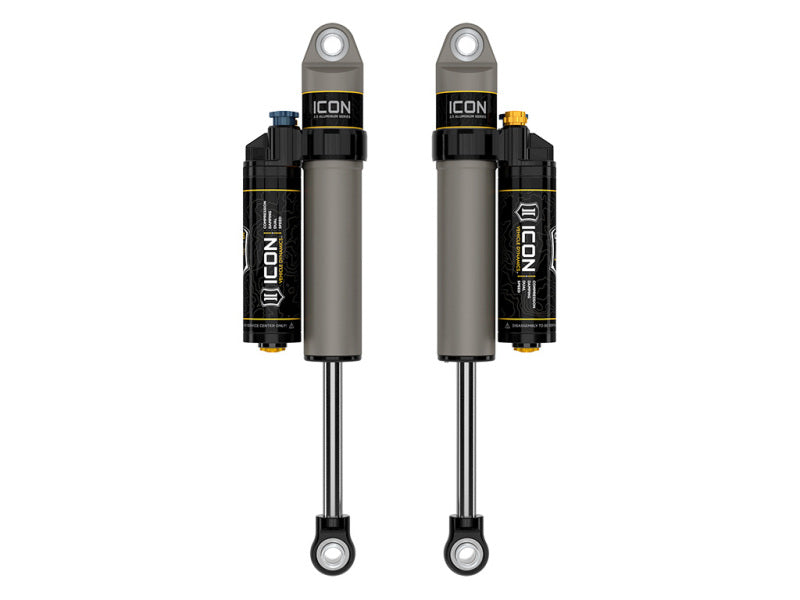

ICON 97720XP Rear 2.5 VS PB CDXS Shocks for 04-08 4WD/09-24 Ford F-150 Pair

Vehicle Fitment

• 2004-2008 Ford F-150 4WD (4.6L V8, 5.4L V8)
• 2009-2024 Ford F-150 2WD/4WD (3.3L V6, 3.5L V6/EcoBoost, 2.7L EcoBoost, 3.5L PowerBoost Hybrid, 5.0L V8, 3.7L V6, 3.5L V6, 4.6L V8, 5.4L V8, 6.2L V8)

Fitment Notes

• Does NOT fit F-150 Raptor (any generation) - Raptor uses dedicated 3.0 Series rear shocks
• Does NOT fit F-150 Tremor
• Does NOT fit 2004-2008 F-150 2WD
• Not compatible with factory installed electronically controlled suspension
• Compatible with 0-1" of rear lift over stock on most F-150 models

Features

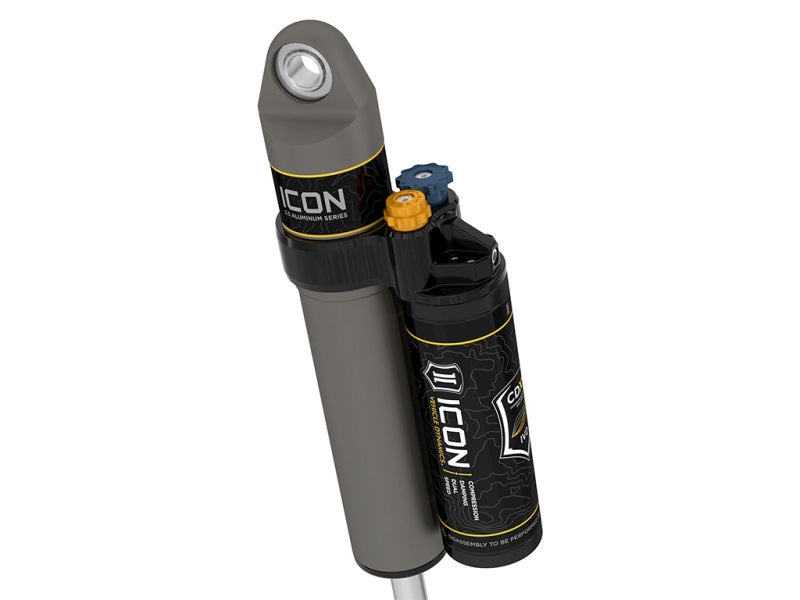

• V.S. (Vehicle Specific) 2.5" aluminum shock body with piggyback reservoir

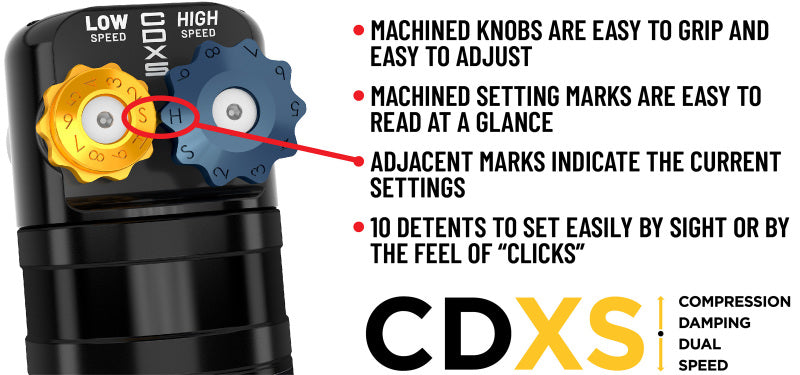

• ICON's exclusive CDXS (Compression Damping Dual Speed) valving with independent high-speed and low-speed adjustment
• 10 detented low-speed and 10 detented high-speed compression settings for precise on/off-road tuning
• 6061 billet aluminum Bump Zone manifold adds 20% additional damping force to resist bottom-out
• One-piece digressive piston design with vehicle-specific valving
• Premium 5WT shock oil delivers consistent damping across a wide temperature range
• 7/8" chrome-plated hardened steel shaft resists corrosion, pitting, and wear
• 100% rebuildable and revalveable for extended service life

Specifications

• Position: Rear (pair)
• Shock Body Diameter: 2.5"
• Series: V.S. 2.5 Aluminum Piggyback Reservoir with CDXS
• Shaft Diameter: 7/8" chrome-plated hardened steel
• Reservoir Type: Piggyback
• Lift Range: 0"-1" over stock
• Compression Adjustment: 10 low-speed + 10 high-speed detented settings
• Nitrogen Charge: 250 PSI
• Shock Oil: ICON 5WT

Included Components

• 2x ICON V.S. 2.5 Aluminum Series Rear Piggyback Shocks with CDXS
• 1x Mounting hardware kit

Product Description

The ICON 97720XP delivers ICON's top-tier rear shock technology to the 2004-2008 Ford F-150 4WD and 2009-2024 F-150 2WD/4WD. Built around a 2.5" aluminum body with a piggyback reservoir, these vehicle-specific shocks replace the factory rear dampers with a fully tunable, race-derived unit that transforms the truck's on-road manners and off-road capability. Increased oil capacity, precision valving, and a 7/8" chrome-plated shaft deliver consistent damping even under sustained hard use.

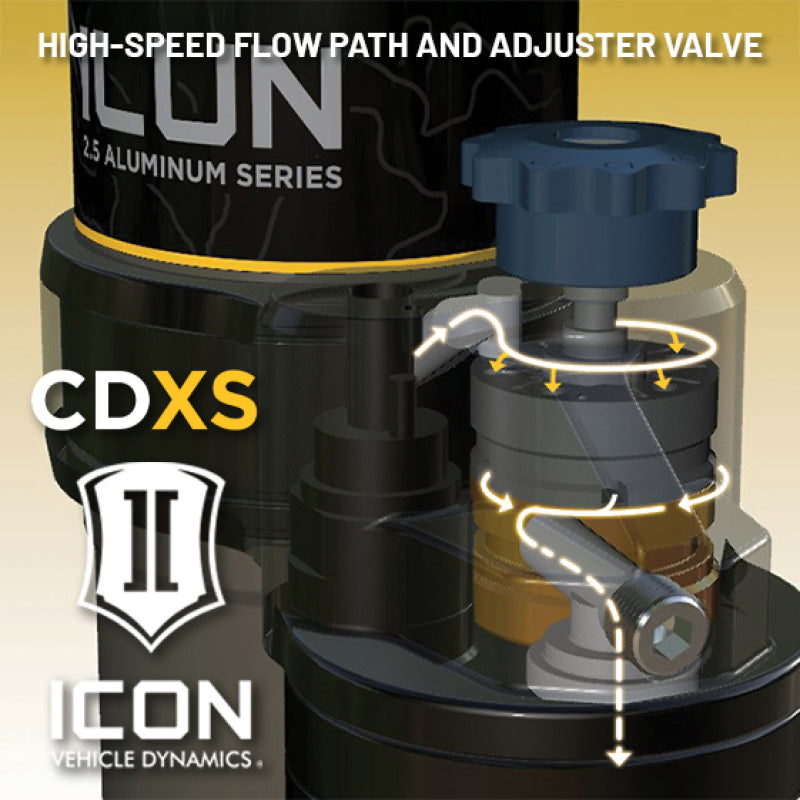

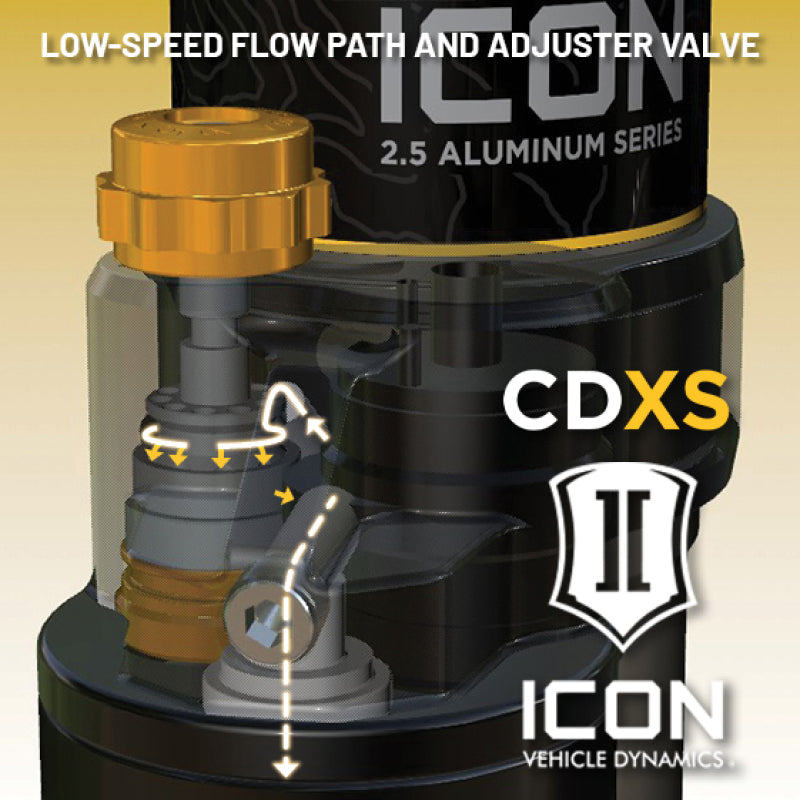

What sets the 97720XP apart is ICON's exclusive CDXS (Compression Damping Dual Speed) valving, which gives drivers independent control of high-speed and low-speed compression through 10 detented settings on each knob - allowing precise tuning for everything from highway comfort to hauling loads to high-speed desert runs. ICON's Bump Zone billet manifold adds a 20% boost in damping force during the last portion of compression travel, preventing harsh bottom-outs. Sold as a rear pair and designed for F-150 models with 0-1" of lift - does not fit Raptor, Tremor, or trucks with factory electronic suspension.
