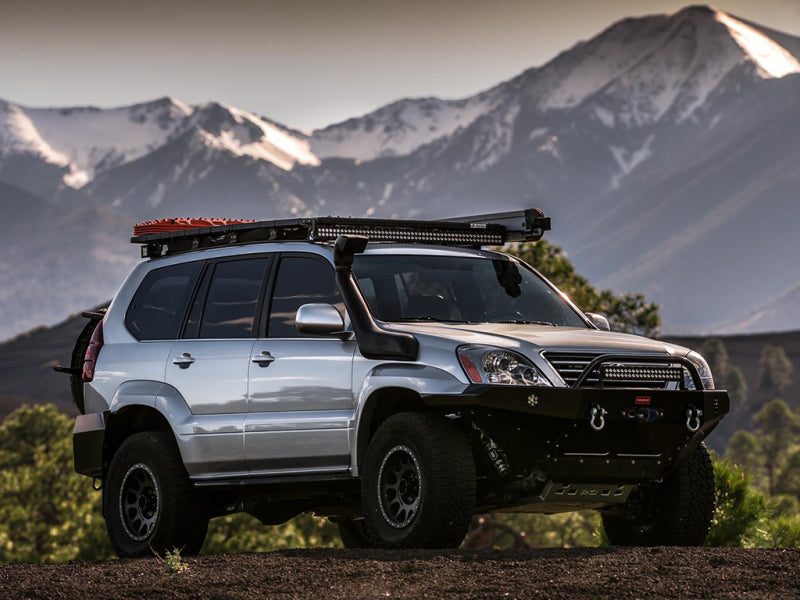

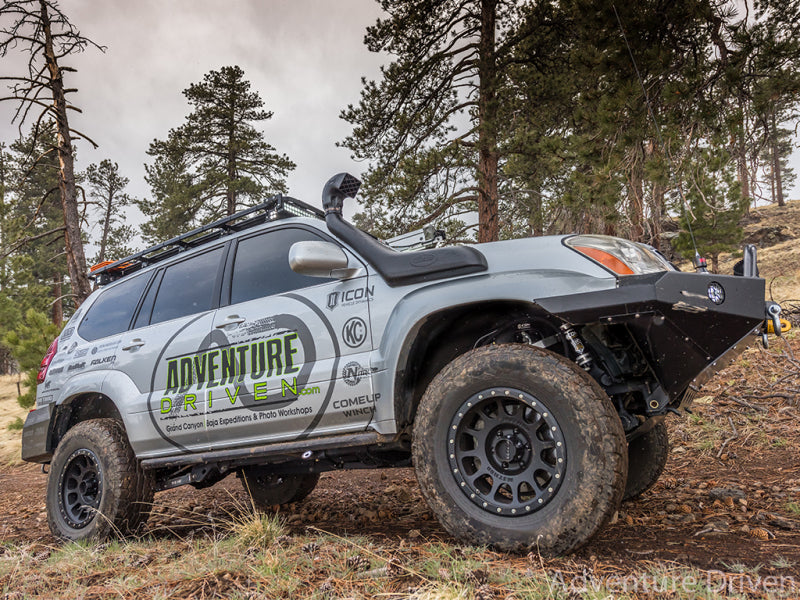

ICON K53172T Stage 2 Suspension Lift Kit 0-3.5" w/UCA for 03-09 Lexus GX470 4WD

Vehicle Fitment

• 2003-2009 Lexus GX470 (all trim levels, 4WD)

Fitment Notes

• Full suspension lift system designed for GX470 4WD models only (2003-2009).
• Provides adjustable suspension lift from 0 up to 3.5 inches over stock.
• Includes rear coil-spring conversion kit to replace factory air suspension (where applicable).
• If your vehicle has optional features (e.g., factory air suspension, KDSS, aftermarket bumpers), verify clearance for remote reservoirs and shock travel before installation.

Features

• Extended-travel 2.5" vehicle-specific coilover shocks front with internal reservoirs for improved wheel travel and ride quality.
• Height-adjustable front coilovers allow 0-3.5" lift, accommodating various tire/wheel setups.
• Tubular upper control arms with patented Delta Joint -- combining durability with improved articulation and geometry correction.
• Rear coil springs plus 2.0" Aluminum-Series internal-reservoir shocks with tuned valving to balance front/rear suspension.
• Corrosion-resistant 6061-grade aluminum CNC-machined components and CAD-plated shock bodies with 7/8" shafts for durability and reliability.
• FK rod-end bearings in control arms for extended longevity and minimal deflection under load.
• Included rear coil-spring conversion kit to eliminate factory air-bag suspension -- simplifies maintenance and improves reliability.
• Bolt-on installation using OEM mounting points -- no frame cutting or welding required.

Specifications

• Front lift range: 0-3.5 in (adjustable coilover)
• Front coil spring rate (standard): 650 lb/in
• Shock type (front): 2.5" internal-reservoir coilover, aluminum body, 7/8" shaft
• Shock type (rear): 2.0" Aluminum Series internal-reservoir shocks with 5/8" shaft
• Upper control arms: Tubular steel arms with Delta Joint high-angle ball-joint design
• Coil springs: Front & rear steel coil springs (rear replaces factory air suspension)
• Wheel/tire compatibility: OEM wheels/tires fit; aftermarket recommendation -- up to 33" x 11.50" with compatible wheel width/backspacing
• Mounting style: OEM-mount bolt-on configuration (front and rear)
• Material: 6061-grade aluminum (coils/coilover bodies), high-strength steel (control arms), corrosion-resistant hardware

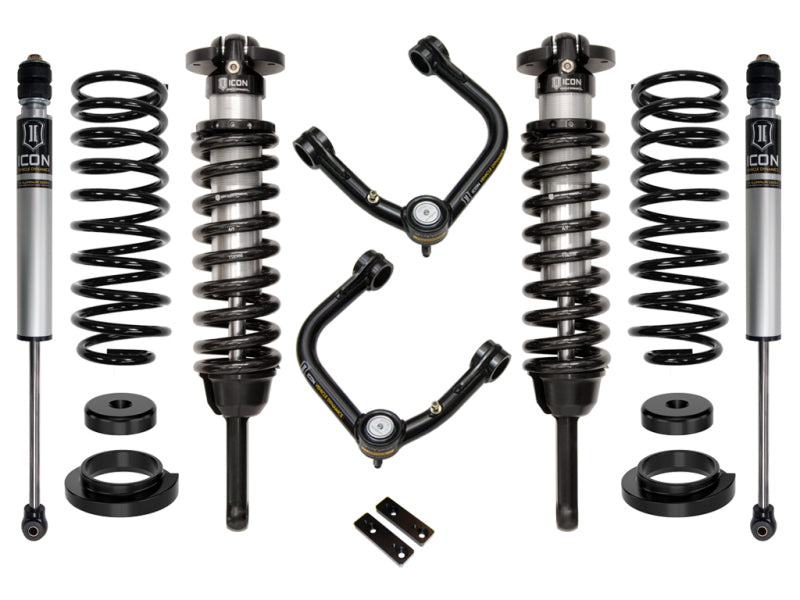

Included Components

• 2x Front 2.5" Adjustable Coilover Shocks (with internal reservoirs)
• 2x Rear 2.0" Aluminum Series Reservoir Shocks
• 2x Rear Coil Springs (for coil conversion)
• 2x Front Coil Springs (pre-installed on coilovers)
• 1x Set of Tubular Upper Control Arms with Delta Joint and FK Rod-End Bearings
• Rear Coil Conversion Kit (to replace air suspension)
• All required mounting hardware, bushings, brackets, and installation components

Product Description

The ICON K53172T Stage 2 suspension kit is a comprehensive lift solution for 2003-2009 Lexus GX470 4WD -- offering adjustable ride height from stock up to 3.5" lift. This kit replaces the factory suspension (including rear air system) with robust coil springs, reservoir shocks, and upgraded control arms designed for improved articulation, suspension geometry, and reliability. The coil-over shocks feature a 2.5" body for increased fluid capacity and durability under demanding on- and off-road use.

Out-of-the-box, the front coil springs use a standard spring rate of 650 lb/in, which balances ride comfort and load-bearing capacity. For heavier builds or greater load capacity, an optional 700 lb/in spring set is available. The rear coil conversion replaces the factory air bags with steel springs and aluminum reservoir shocks, improving long-term reliability and simplifying maintenance. With all components bolt-on and no frame cutting required, this kit is ideal for GX470 owners seeking a durable, lifted suspension setup for larger tires, enhanced off-road capability, or improved on-road ride dynamics.
