ICON K53363 Stage 3 Suspension System for 2024-2027 Toyota Land Cruiser 250

Vehicle Fitment

• 2024-2027 Toyota Land Cruiser 250 Series (195 / Base / First Edition, all trims)

Fitment Notes

• Front lift: 1.25-3.0" over stock (height adjustable)
• Rear lift: 2.0" over stock
• Compatible with OEM wheels and tires
• Recommended aftermarket tires: 33" x 11.50" (larger may require fender trimming)
• Recommended aftermarket wheels: 17x8.5 / 6.32" BS / 40mm offset, or ICON 18x9 / 6.6" BS / 40mm offset
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation
• Professional installation required

Features

• Front 2.5 Series coilovers with internal reservoirs -- height adjustable 1.25-3"
• Billet aluminum UCAs with patented Delta Joint PRO -- 90° total articulation
• Delta Joint PRO eliminates bind at full bump and droop travel
• Front differential drop brackets -- maximize CV operating angle and wheel travel
• Polyurethane differential mounting bushings -- limit diff movement under load
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Dual-rate rear coil springs -- softer ride height rate with firmer overload rate
• Billet adjustable rear track bar -- re-centers rear axle with on-vehicle fine adjustment
• 6061 aircraft-grade aluminum CNC machined components throughout
• CAD plated coilover shock bodies with 7/8" shafts -- corrosion resistant
• FK Rod End bearings -- extended longevity and minimal deflection
• Vehicle-specific front and rear shock valving
• All shocks fully serviceable
• ICON Lifetime Warranty

Specifications

• Part Number: K53363
• Brand: ICON Vehicle Dynamics
• Stage: 3
• Front Lift: 1.25-3.0" (adjustable)
• Rear Lift: 2.0"
• Front Shocks: 2.5 Series VS Internal Reservoir Coilovers
• Rear Shocks: 2.0 Aluminum Series VS Internal Reservoir
• UCA Style: Billet Aluminum with Delta Joint PRO
• Rear Track Bar: Billet Adjustable
• Rear Springs: Dual-rate coil spring kit
• Shipping Weight: 166 lbs.
• UPC: 840103430577

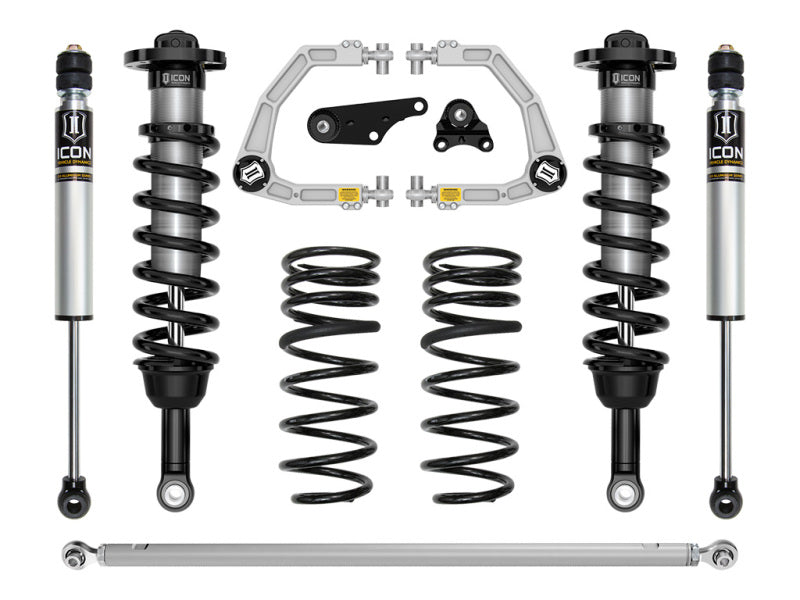

Included Components

• Front 2.5 VS IR coilover kit (58691) -- qty 1
• Billet UCA with Delta Joint PRO kit (58552DJ) -- qty 1
• Front differential drop kit (55160) -- qty 1
• Rear 2.0 VS IR shocks (56520) -- qty 2
• 2" dual-rate rear coil spring kit (52752) -- qty 1
• Billet adjustable rear track bar (54202) -- qty 1
• All hardware and installation instructions

Product Description

The ICON K53363 is the Stage 3 Billet suspension system for the 2024-2027 Toyota Land Cruiser 250 Series, delivering 1.25-3 inches of adjustable front lift and 2 inches of rear lift. The Stage 3 system combines ICON's 2.5 Series VS Internal Reservoir front coilovers with billet aluminum upper control arms featuring the patented Delta Joint PRO -- providing 90 degrees of total articulation, corrected front geometry, and maximized wheel travel without CV bind. Front differential drop brackets optimize CV operating angles, while polyurethane diff mounting bushings limit differential movement under load.

At the rear, dual-rate coil springs work with 2.0 Aluminum Series VS IR shocks to deliver on-road comfort with excellent bottoming resistance. The billet adjustable rear track bar re-centers the rear axle and allows fine on-vehicle length adjustment without disassembly. All shocks are fully serviceable. Requires ADAS recalibration after installation. Compatible with OEM wheels and tires; 33" x 11.50" tires recommended with aftermarket wheels at 40mm offset. Backed by ICON's Lifetime Warranty.
