HKS 11999-AT001 Oil Pan for Bolt-On Turbo Toyota 86/GR86 Subaru BRZ FA20

Vehicle Fitment

• 2012-2020 Toyota 86 (ZN6, FA20)
• 2012-2020 Subaru BRZ (ZC6, FA20)
• 2021+ Toyota GR86 (ZN8, FA24)
• 2021+ Subaru BRZ (ZD8, FA24)

Fitment Notes

• Designed specifically for use with HKS GTIII-RS Bolt-On Turbo Kits 11001-AT005 and 11001-KT001; not intended as a standalone stock replacement

Features

• Pre-fitted oil return pipe for direct bolt-on turbo installation
• Dual-welded return pipe connection (inside and outside) for leak resistance
• Reinforcing bracket adds structural strength at the return pipe joint
• Durable painted finish for long-term corrosion resistance
• Simplifies turbo install by replacing the stock oil pan directly

Specifications

• Position: Engine oil pan, lower
• Material: Reinforced welded construction
• Finish: Painted

Included Components

• 1x Oil pan
• 1x Seal ring

Product Description

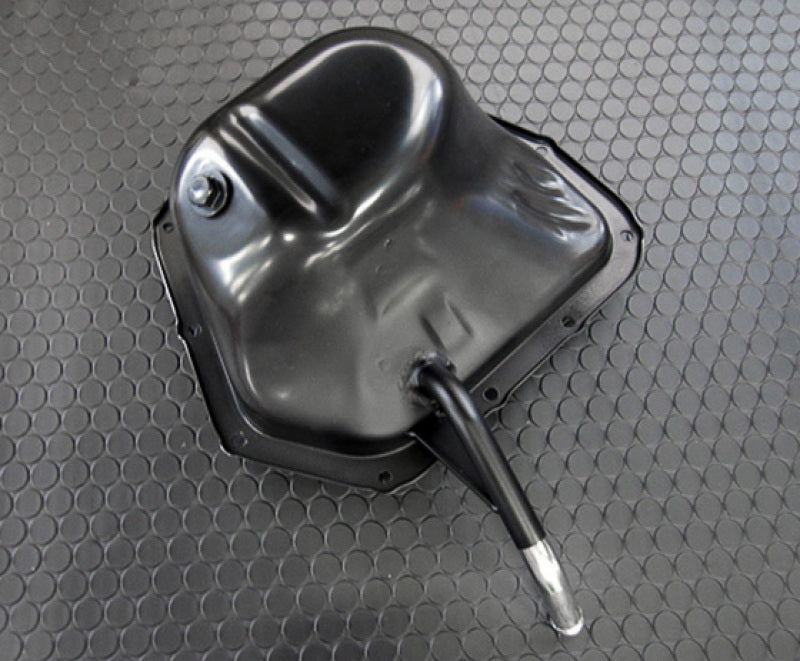

The HKS 11999-AT001 is a purpose-built oil pan for FA20/FA24-powered Toyota 86, GR86, and Subaru BRZ platforms running an HKS GTIII-RS Bolt-On Turbo kit. It replaces the stock oil pan with a version that already has the oil return pipe fitted, removing a major step from the turbo installation process.

The return pipe connection is welded on both the inside and outside, and a reinforcing bracket is added at the joint to guard against leaks under sustained boost. A durable painted finish helps the part hold up over long-term daily or track use, making it a practical companion piece for anyone installing the matching HKS turbo kit rather than a standalone upgrade on its own.
