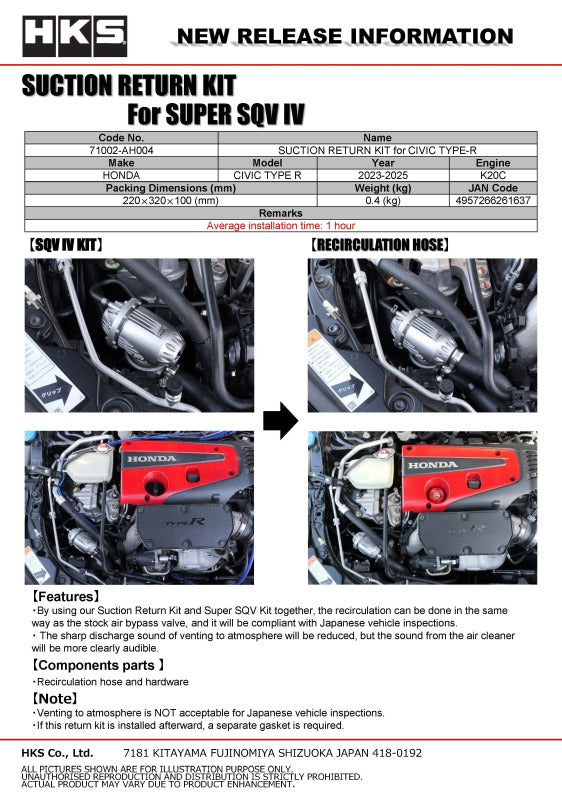

HKS 71002-AH004 Suction Return Kit for 2023-2025 Honda Civic Type R 2.0L I4

Vehicle Fitment

• 2023-2025 Honda Civic Type R (FL5, K20C 2.0L Turbo I4, FWD)

Fitment Notes

• Designed specifically for the FL5-generation Honda Civic Type R.
• HKS lists the application as FL5 with K20C engine from September 2022 onward; HKS USA currently catalogs the U.S. application as 2023-2025.
• Designed for use with the HKS SUPER SQV4 kit.
• This is a suction-return/recirculation accessory and does not include the SUPER SQV4 blow-off valve.
• If installed after the SUPER SQV4 has already been used in atmospheric configuration, HKS specifies that a separate gasket is required.
• Atmospheric venting is not acceptable for Japanese vehicle inspection; this kit enables recirculation similar to the factory air bypass valve.

Features

• HKS SUPER SQV4 Suction Return Kit
• Vehicle-specific design for the FL5 Civic Type R
• Designed for the K20C 2.0L turbocharged engine
• Converts compatible SUPER SQV4 installation to suction-return operation
• Recirculates discharged air similar to the factory air bypass valve
• Reduces the sharp atmospheric discharge sound of the SUPER SQV4
• Allows the air cleaner intake sound to become more prominent
• Includes application-specific return plumbing and mounting hardware
• Designed to work with HKS SUPER SQV4 systems
• Approximately 1-hour average installation time according to HKS

Specifications

• Brand: HKS
• Part Number: 71002-AH004
• Product: SUCTION RETURN KIT
• Vehicle: Honda Civic Type R
• Chassis: FL5
• Engine: K20C 2.0L Turbo I4
• Drivetrain: FWD
• Model Year: 2023-2025 in HKS USA catalog
• Weight: 0.4 kg
• Package Dimensions: 220 x 320 x 100 mm
• Average Installation Time: 1 hour
• Function: Super SQV4 suction-return/recirculation plumbing

Included Components

• 1x Return Nipple
• 1x Hose No. 2
• 1x Braided Tube
• 1x Hose Band 20-32
• 2x C Clamps
• 1x Installation Manual

Product Description

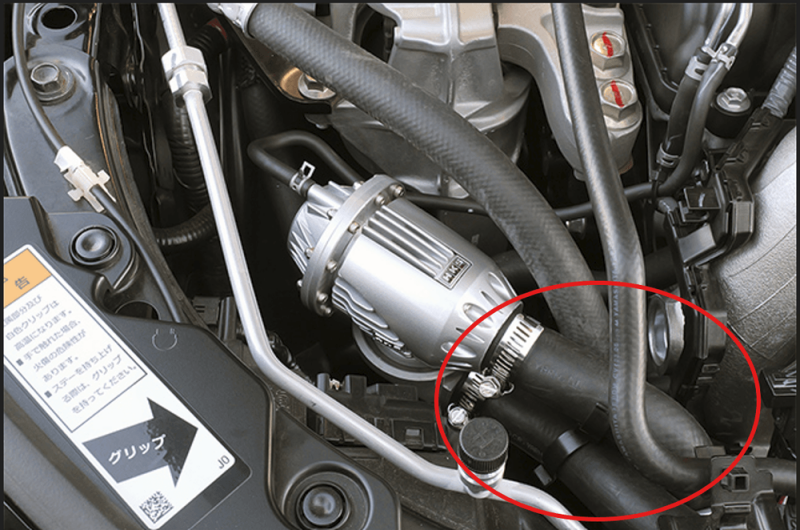

The HKS 71002-AH004 Suction Return Kit is a vehicle-specific recirculation accessory designed for the FL5 Honda Civic Type R equipped with the K20C 2.0L turbocharged engine. Used together with the HKS SUPER SQV4 kit, it routes discharged air back into the intake system in a manner similar to the factory air bypass valve.

The suction-return configuration reduces the sharp discharge sound produced when the SUPER SQV4 vents to atmosphere while making intake-side airflow sounds more noticeable. The kit provides the necessary return plumbing and hardware for the intended FL5 application.

The 71002-AH004 is an accessory kit rather than a complete blow-off valve and does not include the SUPER SQV4 itself. HKS specifies an average installation time of approximately one hour. When retrofitting the return kit after prior atmospheric operation, a separate gasket is required.
