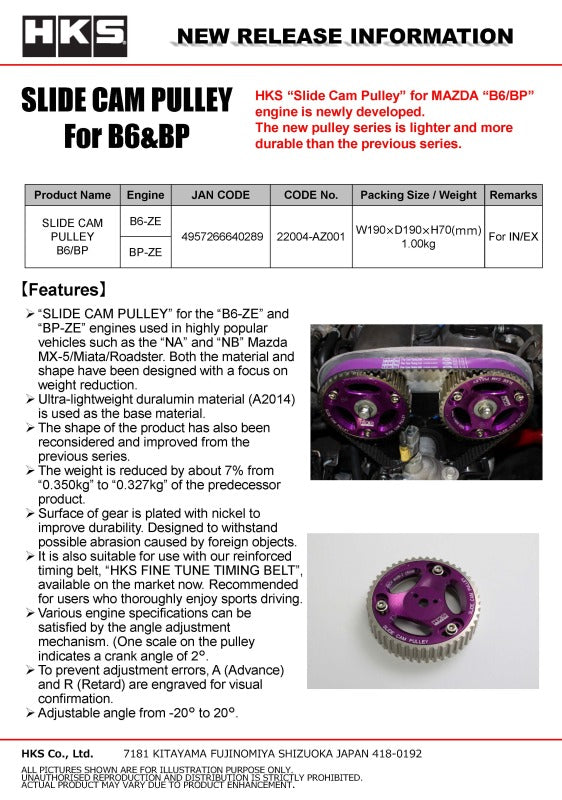

HKS 22004-AZ001 Slide Cam Pulley B6-ZE/BP-ZE for 1990-05 Mazda MX-5 Miata NA/NB

Vehicle Fitment

• 1990-1997 Mazda MX-5 Miata (NA6CE, RWD, B6-ZE 1.6L DOHC I4)
• 1994-1997 Mazda MX-5 Miata (NA8C, RWD, BP-ZE 1.8L DOHC I4)
• 1998-2005 Mazda MX-5 Miata (NB, RWD, BP-ZE 1.8L DOHC I4)

Fitment Notes

• Fits both intake (IN) and exhaust (EX) camshaft positions - sold individually; two pulleys required for a complete IN + EX set
• Compatible with B6-ZE and BP-ZE engines only - does not fit NC (2006+) or ND (2015+) MX-5 platforms

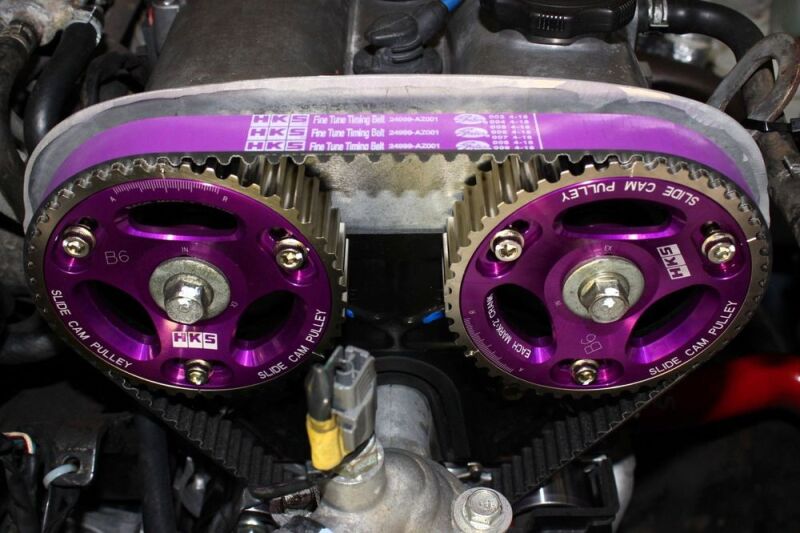

• Optimized for use with HKS Fine Tune Timing Belt (sold separately) for maximum sports driving performance
• Direct bolt-on installation - no modifications required

Features

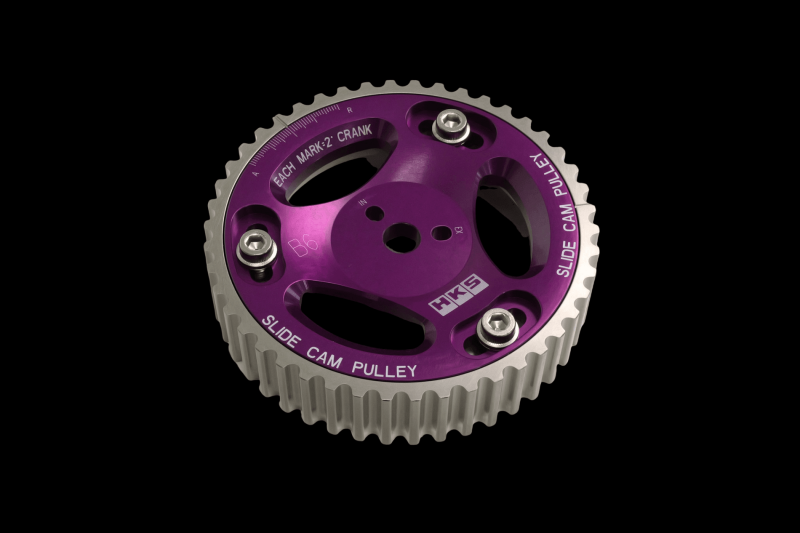

• Newly developed slide cam pulley design specifically engineered for B6-ZE and BP-ZE engines
• Base material machined from ultra-lightweight A2014 Duralumin alloy for reduced rotational mass
• Approximately 7% lighter than the previous version - weight reduced from 0.350 kg to 0.327 kg per pulley
• Nickel-plated gear section improves surface hardness and resistance to wear from debris contact
• Wide camshaft timing adjustment range of -20° to +20° for flexible engine tuning

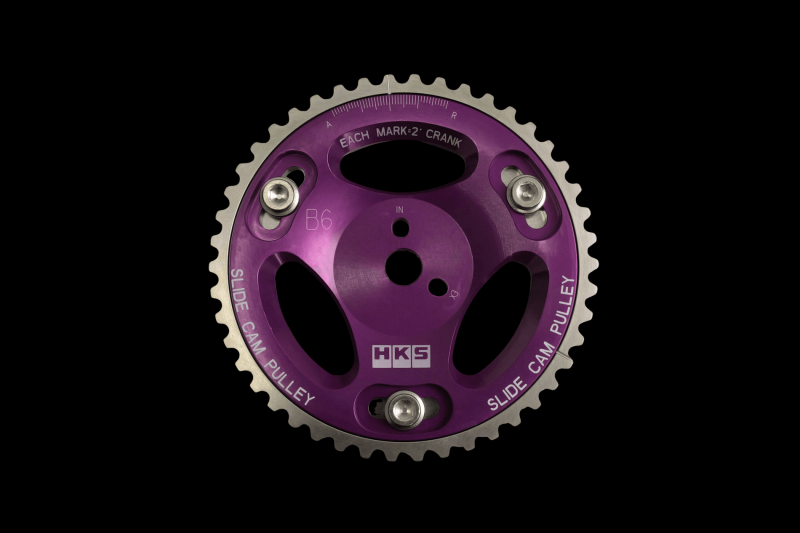

• Each graduation mark equals 2° of crankshaft angle for precise, repeatable adjustments
• "A" (Advance) and "R" (Retard) markings engraved on adjustment screws to prevent setup errors
• Suitable for use with OEM or aftermarket camshafts across a variety of engine build specifications

Specifications

• Type: Aluminum Slide Cam Pulley
• Material: A2014 Duralumin Alloy
• Gear Surface Finish: Nickel Plated
• Weight: 0.327 kg (per pulley)
• Adjustment Range: -20° to +20°
• Graduation Interval: 2° per mark
• Position: Intake (IN) or Exhaust (EX) - interchangeable
• Compatible Engines: B6-ZE 1.6L, BP-ZE 1.8L
• Drive: RWD

Included Components

• 1x Adjustable Slide Cam Pulley (A2014 Duralumin, Nickel-Plated Gear)

Product Description

The HKS 22004-AZ001 is a newly developed slide cam pulley designed specifically for the B6-ZE and BP-ZE engines used in the Mazda MX-5 Miata NA and NB generations. Built from ultra-lightweight A2014 Duralumin, the pulley weighs just 0.327 kg - approximately 7% less than the previous HKS version - reducing rotational inertia for a more responsive throttle feel throughout the rev range. The nickel-plated gear surface improves hardness and durability, ensuring reliable performance even under sustained sport and circuit driving conditions.

The wide ±20° adjustment range gives tuners the flexibility to dial in cam timing across a broad range of engine specifications, from lightly modified street builds to dedicated track setups. Each graduation mark represents 2° of crankshaft movement, and the clearly engraved "A" and "R" markings on the adjustment screws make it easy to confirm the direction of adjustment without errors. The pulley fits both the intake and exhaust positions and installs directly without modification. For a full adjustable cam timing setup, two pulleys are required - one per camshaft.
