HKS 22004-AH001 Slide Cam Pulley B16A B18C for Honda Civic EG/EK/Integra Type R

Vehicle Fitment

• 1991-2000 Honda Civic (EG6, EK4, EK9, FWD, B16A 1.6L DOHC VTEC I4)
• 1997-2001 Honda Integra Type R (DC2, FWD, B18C 1.8L DOHC VTEC I4)

Fitment Notes

• Compatible with both B16A and B18C engines - fits intake and exhaust camshaft positions (sold individually; order two for a complete IN + EX set)
• Optimized for use with HKS reinforced timing belt for best performance in sports driving
• Direct bolt-on installation - no modifications required
• Does not fit B16B engines (EK9 Civic Type R JDM)

Features

• Renewed design with optimized lightweight materials and geometry to maximize natural engine response
• Base material machined from ultra-lightweight A2017 Duralumin alloy for reduced rotational mass
• Approximately 11% lighter than the previous version - weight reduced from 0.318 kg to 0.283 kg
• Nickel-plated gear section improves surface hardness and long-term wear durability
• Adjustable camshaft timing range of -10° to +10° relative to stock
• Each graduation mark on the pulley equals 2° of crankshaft adjustment for precise tuning
• "A" (Advance) and "R" (Retard) markings clearly indicate direction of adjustment to prevent installation errors
• 50% stronger than OEM camshaft pulleys for improved high-rev reliability

Specifications

• Type: Aluminum Slide Cam Pulley
• Material: A2017 Duralumin Alloy
• Gear Surface Finish: Nickel Plated
• Weight: 0.283 kg (per pulley)
• Adjustment Range: -10° to +10°
• Graduation Interval: 2° per mark
• Position: Intake (IN) or Exhaust (EX) - interchangeable
• Compatible Engines: B16A, B18C

Included Components

• 1x Adjustable Slide Cam Pulley (Phi Duralumin, Nickel-Plated Gear)

Product Description

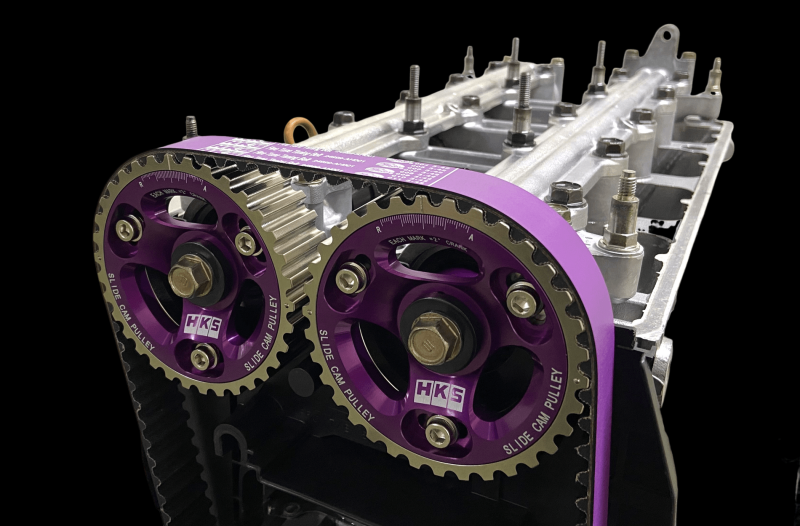

The HKS 22004-AH001 is a renewed slide cam pulley engineered for B16A and B18C Honda engines, offering a lighter and stronger alternative to the OEM camshaft pulley. Machined from A2017 Duralumin, the pulley weighs just 0.283 kg - approximately 11% less than the previous HKS version - reducing rotational inertia and allowing the engine to respond more freely through the rev range. The gear section is nickel-plated for improved hardness and resistance to wear, making this pulley suitable for both circuit sport use and street builds where longevity is a priority.

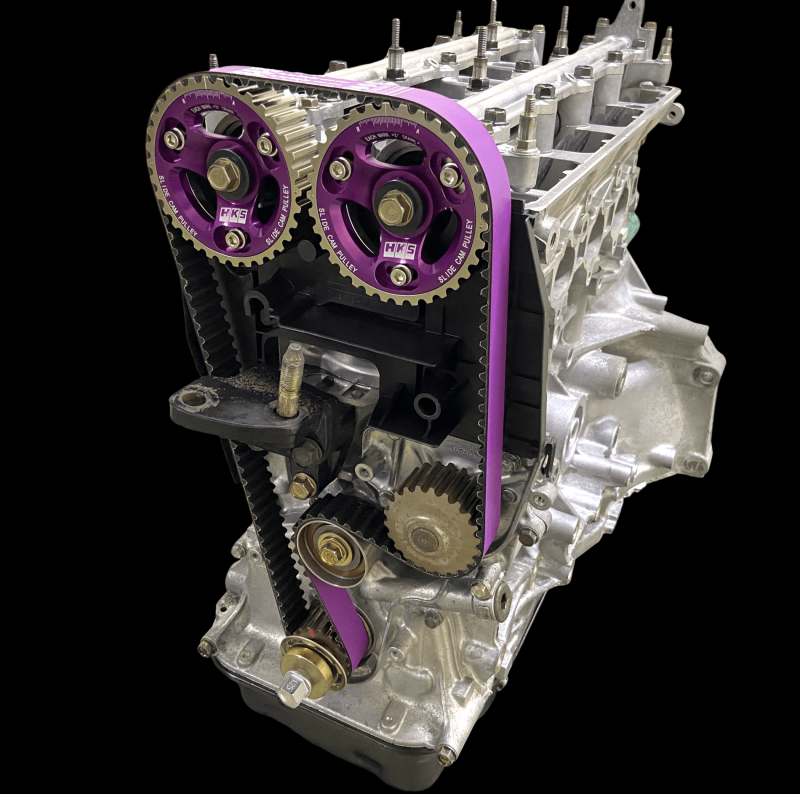

The slide adjustment mechanism provides a -10° to +10° range of camshaft timing adjustment, with each graduation mark representing 2° of crankshaft movement. Clear "A" (Advance) and "R" (Retard) markings are engraved on the face of the pulley to eliminate guesswork during setup. The pulley fits both the intake and exhaust positions and installs directly without modification. For a complete adjustable cam timing setup on a B-series engine, two pulleys are required - one for each camshaft.
