HKS 15004-AH104 S-Type Oil Cooler Kit for 2017-2021 Honda Civic Type R FK8

Vehicle Fitment

• 2017-2021 Honda Civic Type R (FK8 - 2.0L K20C Turbo, FWD)

Fitment Notes

• Designed exclusively for the FK8-chassis Honda Civic Type R - not compatible with the FL5 (2023+) or any non-Type R Civic model
• Installation requires minor modification to the following factory components: rear of the front bumper, inner fender, and brake duct - no other body or chassis modifications are required
• Compatible with factory-equipped fog lamps - fog lamp function is retained after installation
• Oil cooler core is mounted inside the inner fender for optimal airflow and protection
• One PT1/8 sensor mounting hole is provided in the filter mount for optional oil temperature sensor installation

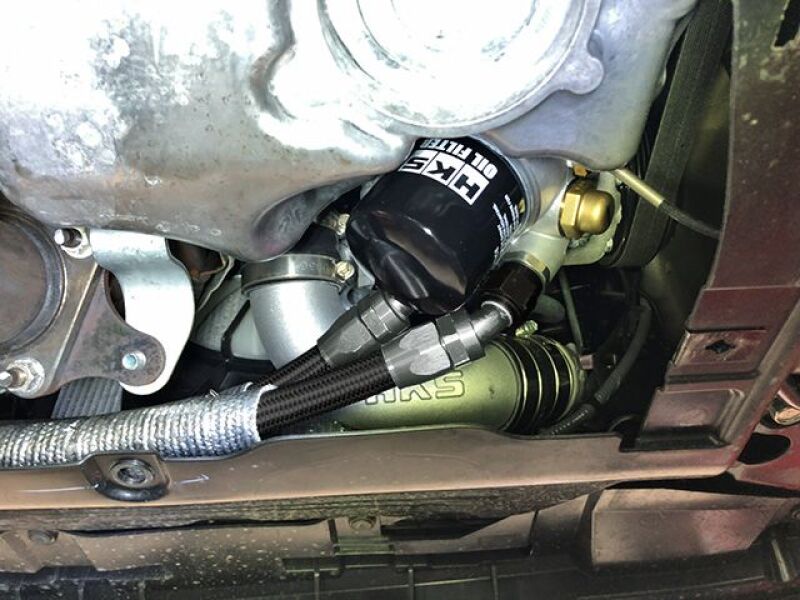

• HKS oil filter is included and comes pre-fitted with the kit
• Professional installation is recommended given the bumper, fender, and brake duct work involved

Features

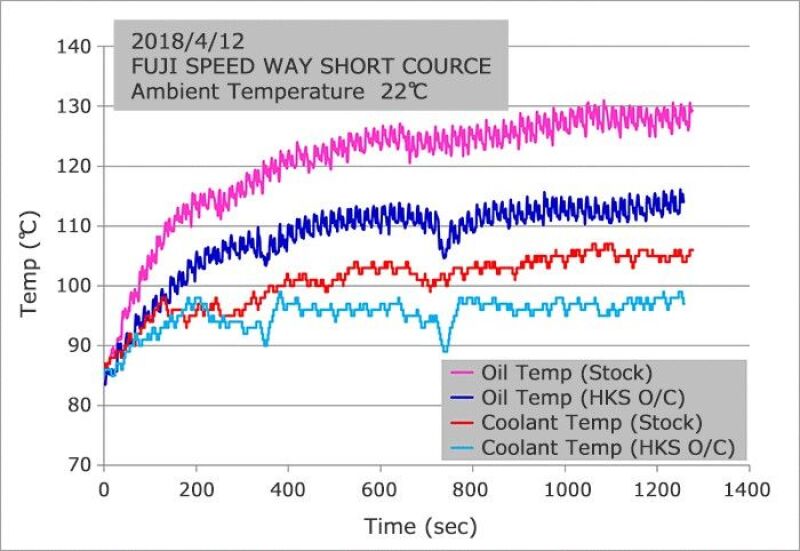

• Purpose-built for the FK8's K20C engine - the factory FK8 uses a water-cooled oil cooler that, under sustained circuit driving, allows both oil and coolant temperatures to rise sharply as heat rejection becomes insufficient; HKS's air-cooled oil cooler kit adds a dedicated air-cooling circuit that reduces the thermal load on the factory water-cooled system, suppressing temperature rise in both oil and coolant simultaneously
• Newly developed 48mm wide, 9-layer oil cooler core - provides the heat exchange capacity needed to keep the K20C's oil at a stable, controlled temperature during aggressive driving and track use, preventing the oil temperature spikes that can trigger the FK8's failsafe mode
• Thermostat-controlled - opens at 70°C and reaches full flow at 80°C, preventing the overcooling that can occur with non-thermostatted coolers during warm-up or light driving conditions; oil temperature is kept in the optimal operating range at all times

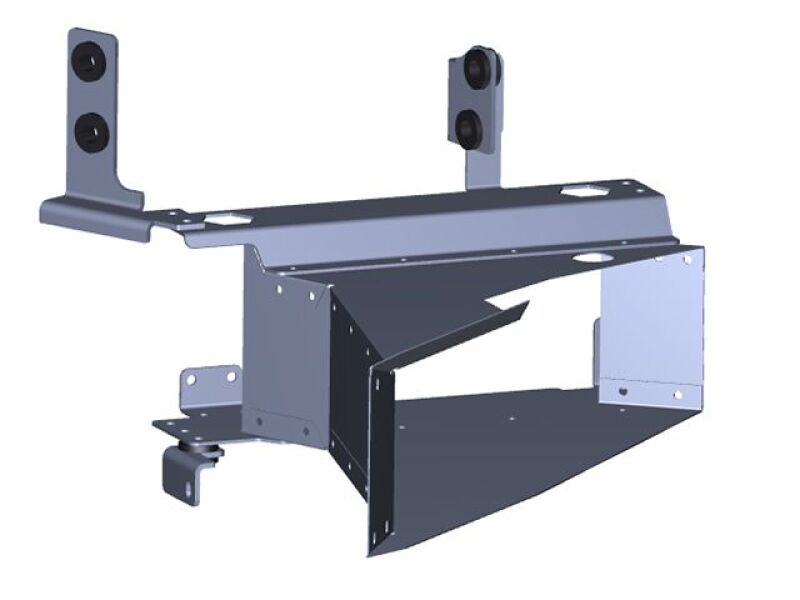

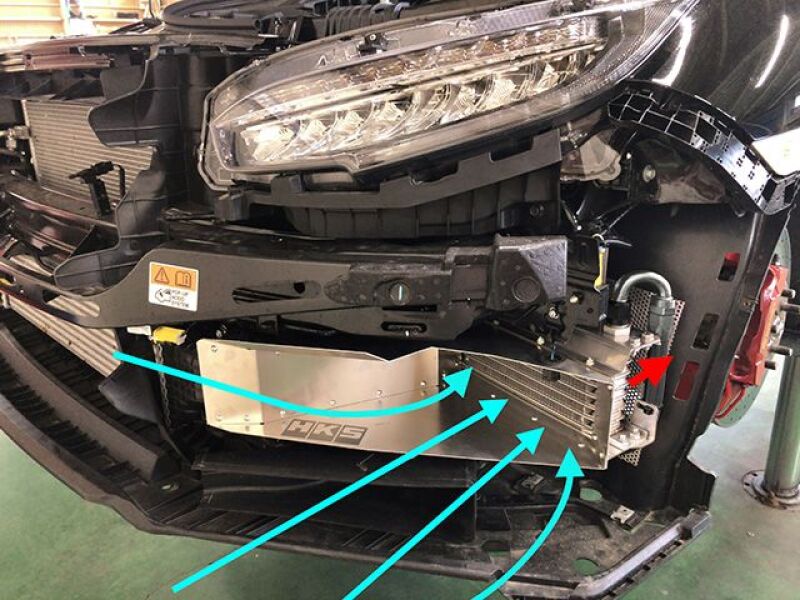

• Aluminum air guide - a specially engineered guide directs incoming airflow over the cooler core, maximizing heat dissipation efficiency at the installed location inside the inner fender
• Pulsation noise insulator - the K20C's high engine output increases oil pump rotational speed, which can transmit pulsation noise through high-pressure hoses into the cabin; the HKS kit includes a built-in insulator that substantially reduces this noise transmission

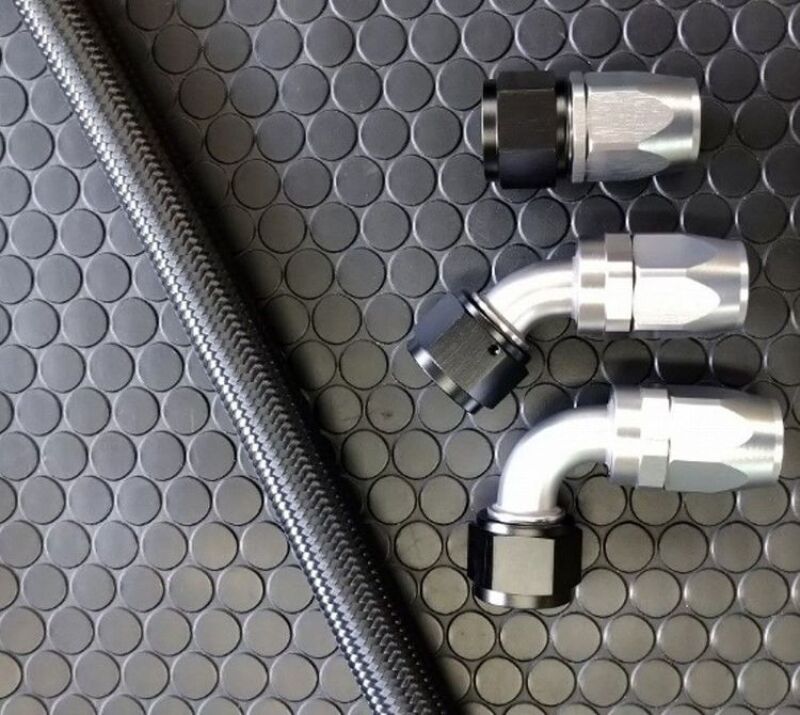

• High-pressure-resistant stainless mesh hoses - provide the durability and pressure tolerance needed for reliable long-term operation in a performance application
• Includes HKS oil filter - no separate filter purchase required for initial installation
• Engineered and manufactured in Japan by HKS

Specifications

• Part Number: 15004-AH104
• Type: S-Type (Sandwich-Type) Air-Cooled Oil Cooler Kit
• Finish: Black
• Core: 48mm wide, 9-layer/stage
• Thermostat Opening Temperature: 70°C (opens) / 80°C (fully open)
• Sensor Port: PT1/8 in filter mount (1 port)
• Hoses: High-pressure-resistant stainless mesh with pulsation noise insulator
• Air Guide: Aluminum
• Cooler Location: Inner fender (driver's side)
• Modifications Required: Rear of front bumper, inner fender, brake duct

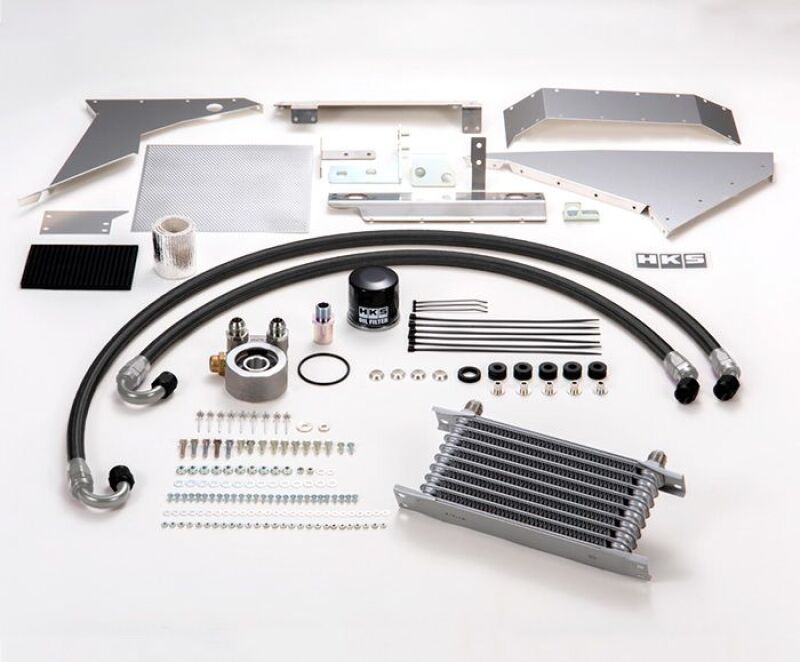

Included Components

• 1x 48mm 9-Layer Oil Cooler Core
• 1x Aluminum Air Guide
• 1x Thermostat Assembly
• 1x HKS Oil Filter
• High-pressure-resistant stainless mesh hoses with pulsation noise insulator
• All necessary mounting hardware and installation hardware

Product Description

The HKS 15004-AH104 is an S-Type air-cooled oil cooler kit engineered specifically for the 2017-2021 Honda Civic Type R (FK8). The FK8 comes from the factory with a water-cooled oil cooler - a design that works adequately for street use but becomes a limiting factor under sustained circuit driving, where both oil and coolant temperatures rise sharply and the factory failsafe mode can be triggered. This HKS kit adds a dedicated air-cooled oil cooling circuit that takes the thermal load off the factory water-cooled system, suppressing temperature rise in both oil and coolant and allowing the K20C to maintain stable output through extended high-performance driving.

At the heart of the kit is a newly developed 48mm wide, 9-layer oil cooler core - sized specifically for the FK8's cooling demands and mounted inside the inner fender with a purpose-built aluminum air guide that maximizes airflow over the core. A thermostat (opening at 70°C, fully open at 80°C) prevents overcooling during normal driving, keeping oil temperature in the optimal range at all times. A built-in pulsation noise insulator addresses the cabin noise that can develop from high-pressure oil hoses at elevated engine speeds. Installation requires minor modification to the rear of the front bumper, inner fender, and brake duct; factory fog lamps are fully retained. An HKS oil filter and all mounting hardware are included. Manufactured in Japan by HKS.
