HKS 80330-AT001P Hipermax S Coilover Kit Toyota 86 Scion FR-S Subaru BRZ ZN6 ZC6

Vehicle Fitment

• 2012-2021 Toyota 86 (ZN6; FA20; RWD) - Full Kit (Front & Rear)
• 2013-2020 Subaru BRZ (ZC6; FA20; RWD) - Full Kit (Front & Rear)
• 2013-2016 Scion FR-S (ZN6; FA20; RWD) - Full Kit (Front & Rear)

Fitment Notes

• Production date range: April 2012 (12/04) through October 2021 (21/10) for ZN6; March 2012 (12/03) through July 2021 (21/07) for ZC6
• This is the Front Pillow Ball (spherical bearing) upper mount variant - the "P" suffix designates the upgraded front top mount over the standard rubber bush version (80300-AT001)
• Rear upper mount is rubber bush; front damper layout is inverted; rear is normal
• Cutting of rear interior trim is required to access the rear damper adjustment dial
• California residents: subject to Prop 65 warning - see HKS documentation
• Sold as a complete front and rear coilover kit (4 corners)

Features

• Front pillow ball (spherical bearing) upper mounts deliver sharper steering response and more precise suspension geometry compared to rubber bush alternatives
• HKS Flat Ride Concept (FRC) tuning suppresses initial harshness over rough surfaces while maintaining responsive handling at speed
• Wide Range (WR) needle damping adjustment provides 30 steps of front and rear compression/rebound tuning for street, canyon, and track use
• Dual Preload Valve System (Dual PVS) reduces unnecessary damping force at higher piston speeds for improved ride comfort without sacrificing sport performance
• Independent ride height adjustment via lower bracket - front and rear adjustable independently
• Inverted front strut design for reduced unsprung weight and improved damper response
• Manufactured in Japan to HKS specifications; 3-year / 60,000 km warranty coverage

Specifications

• HKS Part Number: 80330-AT001P (supersedes 80300-AT001)
• Compatible Vehicles: Toyota 86 (ZN6), Subaru BRZ (ZC6), Scion FR-S (ZN6)
• Compatible Engine: FA20
• Spring Rate - Front: 49 N/mm (5.0 kgf/mm)
• Spring Rate - Rear: 49 N/mm (5.0 kgf/mm)
• Free Length - Front/Rear: 170 mm / 170 mm (Barrel Type)
• Damping Force (Front) at 0.1 m/sec - Extension/Compression: 471 N / 304 N
• Damping Force (Rear) at 0.1 m/sec - Extension/Compression: 343 N / 363 N
• Damping Force Adjustment: 30 steps (Front & Rear)
• Default Dial Position: Front 15 / Rear 15
• Helper Spring (Rear): 19.8 N/mm
• Ride Height at Shipment - Front: -16 mm (range: 0 to -58 mm)
• Ride Height at Shipment - Rear: -12 mm (range: 0 to -53 mm)
• Front Upper Mount: Pillow Ball (Spherical Bearing)
• Rear Upper Mount: Rubber Bush
• Front Damper Layout: Inverted
• Rear Damper Layout: Normal
• Country of Origin: Japan
• Warranty: 3 Years / 60,000 km

Included Components

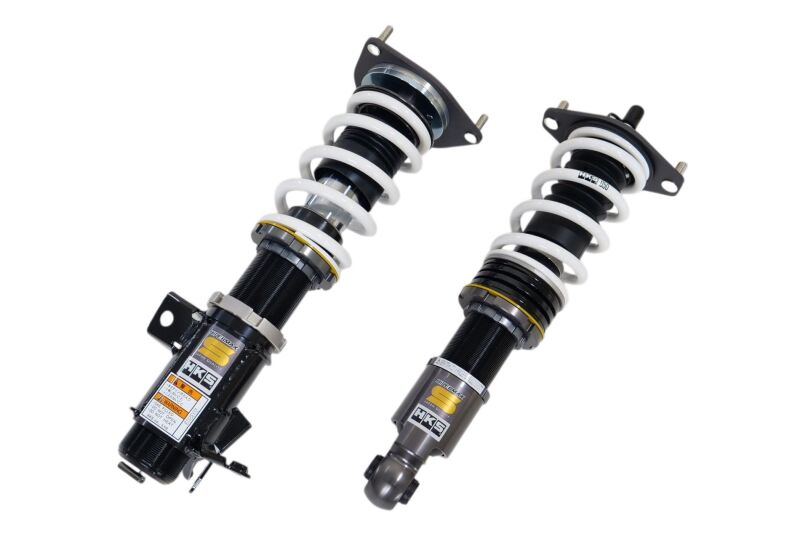

• 2x Front HKS Hipermax S Inverted Coilover Assemblies with Pillow Ball Upper Mounts (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies with Rubber Bush Upper Mounts (Left & Right)
• Rear helper springs (19.8 N/mm)
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AT001P Hipermax S is a complete front and rear coilover kit purpose-built for the Toyota 86, Scion FR-S, and Subaru BRZ on the ZN6/ZC6 FA20 platform. The "P" designation identifies this as the front pillow ball upper mount variant, delivering sharper steering feedback and more accurate suspension geometry over the standard rubber bush configuration. Featuring HKS's Flat Ride Concept (FRC) tuning and Dual Preload Valve System (Dual PVS), the Hipermax S is engineered to suppress the initial harshness common in stiffer coilover setups without sacrificing the handling precision the ZN6/ZC6 platform is known for. Both front and rear offer 30 steps of damping force adjustment via HKS's Wide Range (WR) needle, making this kit equally at home on daily street commutes, mountain roads, and track days.

The front features an inverted damper layout to reduce unsprung weight, while a rear helper spring at 19.8 N/mm improves packing behavior and prevents spring float at full droop. Ride height is independently adjustable front and rear via lower bracket, with a range of up to -58 mm front and -53 mm rear from factory ride height. Note that accessing the rear damper adjustment dial requires trimming of the rear interior. This kit supersedes the earlier 80300-AT001 part number and is backed by a 3-year / 60,000 km manufacturer warranty. Manufactured in Japan to HKS tolerances for long-term durability and consistent performance.
