HKS 80330-AN020 Hipermax S Coilover Kit 1997-2001 Nissan Stagea AWD WGNC34

Vehicle Fitment

• 1997-2001 Nissan Stagea AWD (WGNC34; RB25DET; AWD/4WD) - Full Kit (Front & Rear)
• 1997-2001 Nissan Stagea AWD (WGNC34; RB26DETT; AWD/4WD) - Full Kit (Front & Rear)

Fitment Notes

• Compatible with AWD (4WD) manual transmission models only - chassis codes E-WGNC34 and GF-WGNC34
• Not compatible with RWD (rear-wheel drive) Stagea variants
• Production date range: November 1997 (97/11) through October 2001 (01/10)
• This item ships via UPS or FedEx only - standard ground freight is not available
• Sold as a complete front and rear coilover kit (4 corners)

Features

• Monotube damper construction separates gas and oil chambers for consistent, heat-stable damping under sustained load
• HKS Flat Ride Concept (FRC) tuning minimizes low-speed harshness while maintaining controlled body roll and planted cornering behavior
• 30-step damping adjustment via the Wide Range (WR) Needle valve - tunable from comfort to sport without tool changes
• Dual Preload Valve System (Dual PVS) chassis-specific tuning reduces unnecessary damping force at higher piston speeds for improved ride quality
• Length-adjustable shock body allows ride height reduction without spring preload, preserving full suspension travel
• DURA BOOTS - upgraded dust boots with enhanced resistance to heat, weathering, and ozone
• Advanced Bump Rubber Plus provides progressive, early engagement to prevent harsh bottom-out
• Manufactured in Japan to HKS specifications; 3-year / 60,000 km warranty coverage

Specifications

• HKS Part Number: 80330-AN020 (supersedes 80300-AN020)
• Compatible Vehicle: Nissan Stagea AWD (WGNC34)
• Compatible Engines: RB25DET, RB26DETT
• Spring Rate - Front: 98 N/mm (10.0 kgf/mm)
• Spring Rate - Rear: 88 N/mm (9.0 kgf/mm)
• Free Length - Front: 200 mm
• Free Length - Rear: 250 mm
• Damping Force Adjustment: 30 steps (Front & Rear)
• Upper Mount - Front: Rubber
• Upper Mount - Rear: Rubber
• Ride Height at Shipment - Front: -27 mm (range: -9 mm to -79 mm)
• Ride Height at Shipment - Rear: -26 mm (range: -17 mm to -52 mm)
• Damper Type: Monotube
• Country of Origin: Japan
• Warranty: 3 Years / 60,000 km

Included Components

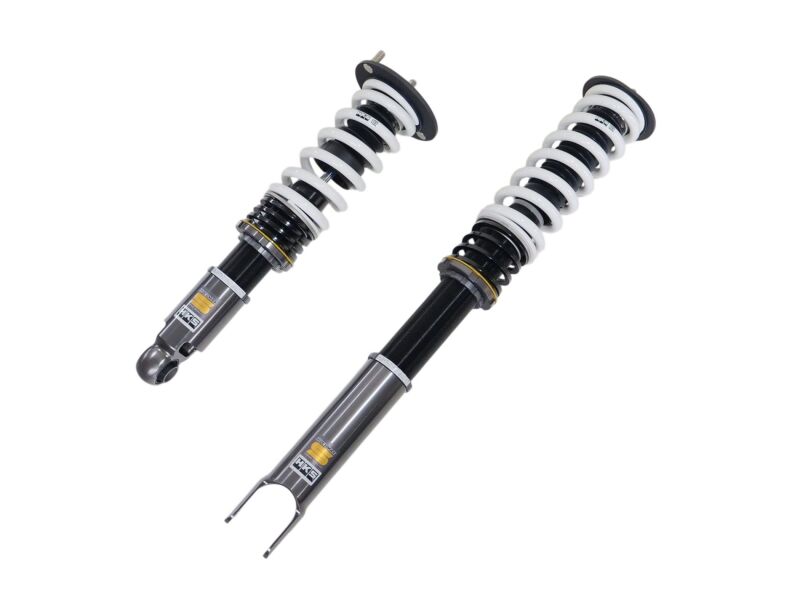

• 2x Front HKS Hipermax S Coilover Assemblies with Rubber Upper Mounts (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies with Rubber Upper Mounts (Left & Right)
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AN020 Hipermax S is a complete front and rear coilover kit purpose-built for the 1997-2001 Nissan Stagea AWD (WGNC34) equipped with either the RB25DET or RB26DETT inline-six engine. Built on HKS's monotube damper platform with Flat Ride Concept (FRC) and Dual Preload Valve System (Dual PVS) tuning, this kit is designed to lower the WGNC34's center of gravity and tighten body control without sacrificing the compliance needed for daily street use. The 30-step WR Needle damping adjustment allows the driver to dial in feel across a wide range of conditions - from relaxed highway cruising to spirited mountain-road driving. Front and rear spring rates of 98 N/mm and 88 N/mm respectively are set firm enough to control the Stagea's AWD chassis under load while remaining livable on imperfect road surfaces.

Ride height adjustment is preload-independent via the length-adjustable shock body, giving a front lowering range of up to -79 mm and rear of up to -52 mm from factory ride height. DURA BOOTS and Advanced Bump Rubber Plus contribute to long-term durability across a range of environmental conditions. This kit is compatible with AWD 4WD manual transmission models only (chassis E-WGNC34 and GF-WGNC34) and is not suitable for rear-wheel-drive Stagea variants. It supersedes part number 80300-AN020, ships via UPS or FedEx only, and is covered by HKS's 3-year / 60,000 km manufacturer warranty.
