HKS 80330-AF010CP Hipermax S Coilover Kit w/ Error Canceller Subaru WRX VBH

Vehicle Fitment

• 2021-Present Subaru WRX S4 (VBH; FA24 Turbo 2.4L Flat-4; AWD) - Full Kit with Error Canceller (Front & Rear)

Fitment Notes

• Production date range: November 2021 (21/11) onward - covers the full VBH WRX S4 production run to date
• The OEM electronically controlled suspension (DDS) must be removed for installation; the included error canceller prevents fault codes from appearing on CVT-equipped models after removal
• This is the front pillow ball camber-adjustable upper mount variant - for the standard rubber front upper mount version without camber adjustment, see part 80330-AF010C
• Front upper mount: Pillow Ball (Spherical Bearing, Camber-Adjustable); Rear upper mount: Rubber Bush
• Front damper layout: Inverted; Rear damper layout: Normal
• This item ships via UPS or FedEx only - standard ground freight is not available
• Sold as a complete front and rear coilover kit with error canceller (4 corners)

Features

• Includes OEM electronic damping system (DDS) error canceller - prevents dash warning lights when replacing the factory electronically controlled suspension on CVT models
• Front pillow ball camber-adjustable upper mounts deliver direct steering feedback and enable front camber tuning not possible with rubber bush alternatives
• Inverted front damper layout reduces unsprung weight and increases lateral rigidity for sharper response and cornering stability
• Single-tube (monotube) damper construction separates gas and oil for consistent, heat-stable damping - resolving the instability and harshness found in the stock DDS system
• HKS Flat Ride Concept (FRC) tuning delivers smooth absorption of small road imperfections while generating firm, controlled damping through corners and over undulating surfaces
• 30-step damping adjustment via Wide Range (WR) Needle - tunable front and rear without disassembly
• Dual Preload Valve System (Dual PVS) reduces unnecessary high-speed damping force for improved ride comfort without compromising sport response
• Rear helper springs improve packing behavior and prevent spring float at full droop
• Length-adjustable shock body allows lowering without spring preload, preserving full suspension travel
• DURA BOOTS and PNE corrosion-coated threads for long-term durability
• Manufactured in Japan to HKS specifications; 3-year / 60,000 km warranty coverage

Specifications

• HKS Part Number: 80330-AF010CP (supersedes 80300-AF010CP)
• Compatible Vehicle: Subaru WRX S4 (VBH)
• Compatible Engine: FA24 (2.4L Turbocharged Flat-4)
• Spring Rate - Front: 69 N/mm (7.0 kgf/mm)
• Spring Rate - Rear: 59 N/mm (6.0 kgf/mm)
• Free Length - Front: 200 mm (Straight Barrel Type)
• Free Length - Rear: 170 mm (Straight)
• Damping Force Adjustment: 30 steps (Front & Rear)
• Helper Spring (Rear): Included
• Upper Mount - Front: Pillow Ball (Spherical Bearing, Camber-Adjustable)
• Upper Mount - Rear: Rubber Bush
• Front Damper Layout: Inverted
• Rear Damper Layout: Normal
• Includes: OEM DDS Error Canceller
• Country of Origin: Japan
• Warranty: 3 Years / 60,000 km

Included Components

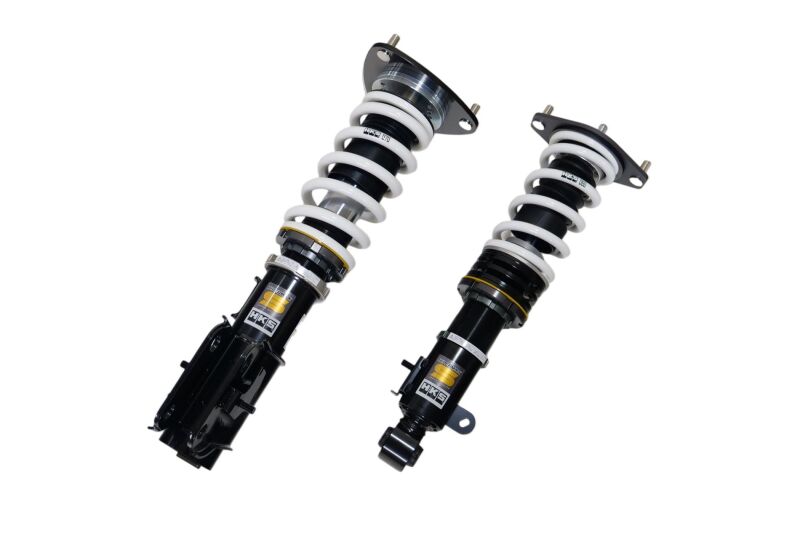

• 2x Front HKS Hipermax S Inverted Coilover Assemblies with Pillow Ball Camber-Adjustable Upper Mounts (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies with Rubber Bush Upper Mounts (Left & Right)
• Rear helper springs
• OEM DDS Electronic Suspension Error Canceller
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AF010CP Hipermax S is a complete front and rear coilover kit with error canceller specifically developed for the 2021-and-later Subaru WRX S4 (VBH) equipped with the FA24 2.4L turbocharged flat-four. This is the pillow ball camber-adjustable front upper mount variant, adding front camber tuning capability to an already capable kit. The stock WRX S4's electronically controlled DDS suspension delivers inconsistent feel - softness and instability in comfort mode, harshness over small bumps in sport mode - and this kit addresses both shortcomings with HKS's large-diameter single-tube monotube dampers, Flat Ride Concept (FRC) tuning, and Dual Preload Valve System (Dual PVS). The result is a suspension that absorbs minor road texture smoothly while generating firm, progressive damping through corners and over surface changes, making the VBH genuinely more composed than the stock setup in all driving conditions.

The included OEM DDS error canceller is essential for CVT-equipped VBH models - without it, removing the factory electronic damping system triggers dashboard fault codes. Front spring rates of 69 N/mm and rear rates of 59 N/mm are tuned for the VBH's AWD platform and weight distribution. The front pillow ball spherical bearing is a consumable component and can be replaced separately when worn. This kit supersedes part number 80300-AF010CP, ships via UPS or FedEx only, and is backed by HKS's 3-year / 60,000 km manufacturer warranty.
