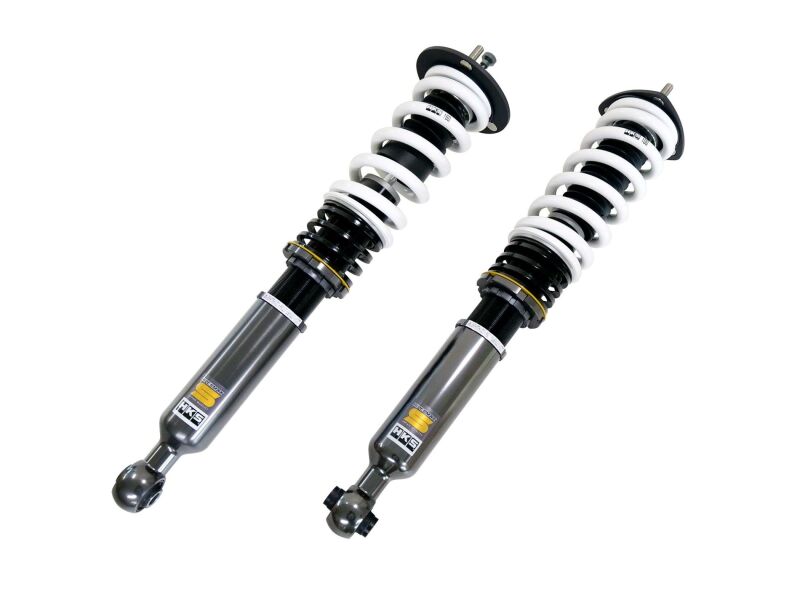

HKS 80330-AT002 Hipermax S Coilover Kit 2008-2014 Lexus IS F USE20 2UR-GSE

Vehicle Fitment

• 2008-2014 Lexus IS F (USE20; 2UR-GSE 5.0L V8; RWD) - Full Kit (Front & Rear)

Fitment Notes

• Production date range: December 2007 (07/12) through May 2014 (14/05) - covers the full JDM and global USE20 IS F production run
• Vehicle height data and ride height adjustment ranges are referenced to the SXE10 baseline - actual results on USE20 may vary slightly
• This item ships via UPS or FedEx only - standard ground freight is not available
• Sold as a complete front and rear coilover kit (4 corners)

Features

• HKS Hipermax S twin-tube damper design engineered specifically for the IS F's high-performance 5.0L V8 platform
• Independent ride height and damping force adjustment for dialing in street, canyon, or track setups
• Stiffer front spring rate (157 N/mm / 16 kgf/mm) tuned to manage the V8's front weight bias
• Barrel-type helper springs front and rear for smooth, progressive travel and reduced spring bind
• Factory-spec OEM mounting points - full bolt-on installation, no cutting or welding required
• Manufactured in Japan to HKS OEM tolerances for consistent quality and long service life

Specifications

• HKS Part Number: 80330-AT002
• Compatible Vehicle: Lexus IS F (USE20)
• Compatible Engine: 2UR-GSE (5.0L V8)
• Spring Rate - Front: 157 N/mm (16 kgf/mm)
• Spring Rate - Rear: 98 N/mm (10 kgf/mm)
• Free Length - Front/Rear: 200 mm / 220 mm (Barrel Type)
• Damping Force (Front) at 0.1 m/sec - Extension/Compression: 1,648 N / 608 N
• Damping Force (Rear) at 0.1 m/sec - Extension/Compression: 814 N / 530 N
• Ride Height at Shipment - Front: -17 mm (range: 0 to -53 mm)
• Ride Height at Shipment - Rear: -19 mm (range: 0 to -77 mm)
• Damper Type: Twin-Tube
• Country of Origin: Japan

Included Components

• 2x Front HKS Hipermax S Coilover Assemblies (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies (Left & Right)
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AT002 Hipermax S is a complete front and rear coilover suspension kit purpose-built for the 2008-2014 Lexus IS F (USE20) equipped with the 2UR-GSE 5.0L V8 engine. Developed by HKS to balance daily drivability with genuine performance capability, the Hipermax S features independent ride height and damping force adjustment, allowing the driver to tailor the suspension to the road or track without compromise. Front spring rates are set at a firm 157 N/mm to manage the IS F's front-heavy V8 weight distribution, while the 98 N/mm rear springs maintain composure under hard acceleration and high-speed cornering. Barrel-type helper springs front and rear prevent spring bind and contribute to smooth, predictable damper action throughout the suspension travel range.

Installation is straightforward using factory OEM mounting points with no permanent modification to the chassis required. The kit ships as a complete four-corner set and can only be transported via UPS or FedEx due to the size and contents of the package. As with all HKS Hipermax S products, this kit is manufactured in Japan and engineered to HKS' strict quality and fitment standards for long-term reliability on both street and track applications.
