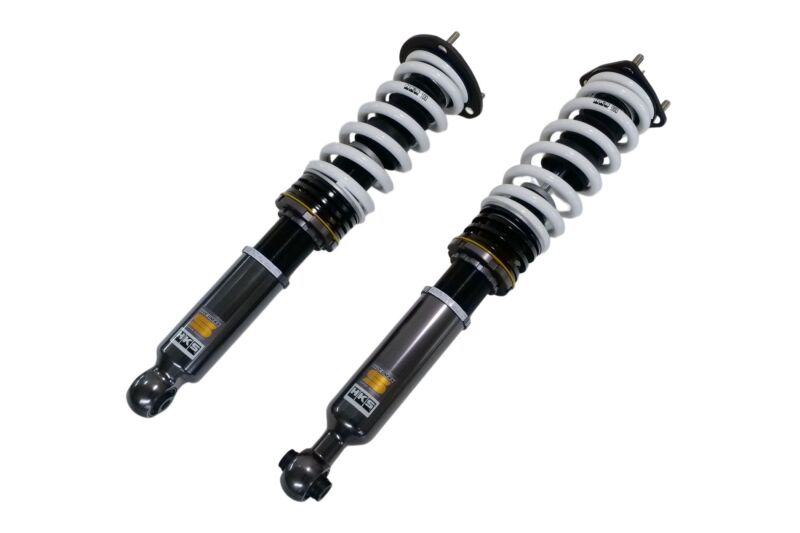

HKS 80330-AT006 HIPERMAX S Coilovers for 1998-2005 Toyota Altezza 3S-GE/1G-FE

Vehicle Fitment

• 1998-2005 Toyota Altezza SXE10 (3S-GE, drivetrain not specified by HKS)
• 1998-2005 Toyota Altezza GXE10 (1G-FE, drivetrain not specified by HKS)
• 2003-2005 Toyota Altezza Gita JCE10W (2JZ-GE, drivetrain not specified by HKS)
• 2003-2005 Toyota Altezza Gita GXE10W (1G-FE, drivetrain not specified by HKS)

Fitment Notes

• HKS identifies the primary Altezza application as SXE10/GXE10 with 3S-GE and 1G-FE engines from 1998/10-2005/07.
• HKS application data also lists Altezza Gita JCE10W and GXE10W from 2003/08-2005/07 with 2JZ-GE and 1G-FE engines respectively.
• The product is an HKS HIPERMAX S full coilover kit with front and rear assemblies.
• HKS does not specify FWD/RWD in the cited application data; drivetrain is therefore not assigned beyond the manufacturer-listed chassis applications.
• Vehicle-height data is measured using the SXE10 development vehicle and may vary by application.
• No 2006 or newer application is listed by HKS for this product.

Features

• HKS HIPERMAX S full coilover suspension system.
• 30-step damping-force adjustment at both front and rear.
• Height-adjustable lower brackets at front and rear.
• Normal-type damper configuration.
• Coilover damper/spring layout front and rear.
• Rubber upper mounts front and rear.
• Helper springs included front and rear at 19.8 N/mm.
• Rear damping adjustment can be operated through the supplied adjustment cables.
• Front spring rate is 98 N/mm (10.0 kgf/mm).
• Rear spring rate is 78 N/mm (8.0 kgf/mm).
• Designed to provide adjustable ride height while retaining HKS-developed vehicle-specific damping characteristics.

Specifications

• Brand: HKS
• Part Number: 80330-AT006
• Product Series: HIPERMAX S
• Product Type: Full Coilover Suspension Kit
• Position: Front and Rear
• Damping Adjustment: 30 steps, Front and Rear
• Upper Mount: Rubber, Front and Rear
• Damper Type: Normal
• Front Spring Rate: 98 N/mm (10.0 kgf/mm)
• Rear Spring Rate: 78 N/mm (8.0 kgf/mm)
• Front Spring Free Height: 200 mm
• Rear Spring Free Height: 220 mm
• Front Ride Height Change: -41 mm at HKS recommended setting; adjustable 0 to -55 mm against stock
• Rear Ride Height Change: -34 mm at HKS recommended setting; adjustable 0 to -83 mm against stock
• Front Damping Force at 0.1 m/sec: 1569 N Rebound / 647 N Compression
• Rear Damping Force at 0.1 m/sec: 922 N Rebound / 471 N Compression

Included Components

• 2x Front Suspension Assemblies
• 2x Rear Suspension Assemblies
• 1x Universal Bracket
• 2x Hose Bands
• 1x 1.5 mm Hex Wrench
• 2x Brackets
• 1x Hook Wrench
• 2x Damping Adjustment Dials
• 2x Damping Adjustment Cables
• 1x 12.7-Spline Hook Wrench
• 6x Screws
• 1x Warranty Registration Card
• 1x Installation Manual

Product Description

The HKS 80330-AT006 HIPERMAX S is a complete adjustable coilover suspension system engineered for Toyota Altezza and Altezza Gita applications. It is designed for SXE10 and GXE10 Altezza models with 3S-GE and 1G-FE engines, as well as compatible Altezza Gita JCE10W and GXE10W models with 2JZ-GE and 1G-FE engines.

The system provides independent 30-step damping adjustment at the front and rear together with height-adjustable lower brackets. HKS specifies 98 N/mm front springs and 78 N/mm rear springs, with helper springs rated at 19.8 N/mm. The HKS recommended setting produces approximately 41 mm of front and 34 mm of rear lowering relative to stock on the development vehicle.

The HIPERMAX S uses rubber upper mounts and normal-type coilover dampers. Its adjustable ride-height range allows the suspension to be tailored to the vehicle and desired setup, while HKS cautions that the lowest settings may not be road legal or may cause component contact depending on wheel, tire, and vehicle configuration. Professional installation and post-installation alignment are recommended.
