HKS 80330-AN002 Hipermax S Lowering Coilovers 1993-2002 Nissan Silvia S14 S15

Vehicle Fitment

• 1993-1998 Nissan Silvia (S14 Platform, SR20DE / SR20DET, RWD)
• 1999-2002 Nissan Silvia S15 (SR20DE / SR20DET, RWD)

Fitment Notes

• S14 fitment covers production from October 1993 through December 1998
• S15 fitment covers production from January 1999 through August 2002
• Fits both naturally aspirated (SR20DE) and turbocharged (SR20DET) engine variants
• Front upper mount is a pillow ball (spherical bearing); rear upper mount is rubber bush
• Rear damping force is adjustable via wire; front is dial-only
• Rear helper spring is included; front does not use a helper spring
• Lowest rear ride height setting may not be road legal - refer to HKS drivable range data before setting

Features

• Single-tube monotube damper with separated gas and oil chambers for stable, consistent damping force
• 30-step damping force adjustment on both front and rear for street-to-track tuning flexibility
• Front pillow ball (spherical bearing) upper mount delivers sharper steering response and reduced compliance loss under load
• Dual Preload Valve System (Dual PVS) suppresses unnecessary high-speed damping force for improved ride comfort
• Inverted front strut design reduces unsprung weight and increases lateral rigidity under cornering loads
• Advanced bump stop rubber reduces body roll while maintaining compliance over large impacts
• PNE coating provides 5x corrosion resistance compared to standard galvanizing
• 3-year manufacturer warranty with overhaul service available

Specifications

• Spring Rate - Front: 59 N/mm (6 kgf/mm) | Rear: 49 N/mm (5 kgf/mm)
• Free Length - Front: 220 mm (Barrel) | Rear: 250 mm (Barrel)
• Damping Force at 0.1m/sec - Front: Rebound 500 N / Compression 412 N
• Damping Force at 0.1m/sec - Rear: Rebound 365 N / Compression 284 N
• Damping Adjustment - Front: 30 Steps (dial) | Rear: 30 Steps (wire)
• Default Damper Position - Front: Step 15 | Rear: Step 15
• Upper Mount - Front: Pillow Ball (Spherical Bearing) | Rear: Rubber Bush
• Damper Layout - Front: Inverted | Rear: Normal
• Ride Height Range (S14/S15) - Front: 0 to -73 mm | Rear: -12 to -85 mm (drivable)
• Default Ride Height at Shipment - Front: -47 mm | Rear: -45 mm
• Helper Spring (Rear only) - 19.8 N/mm

Included Components

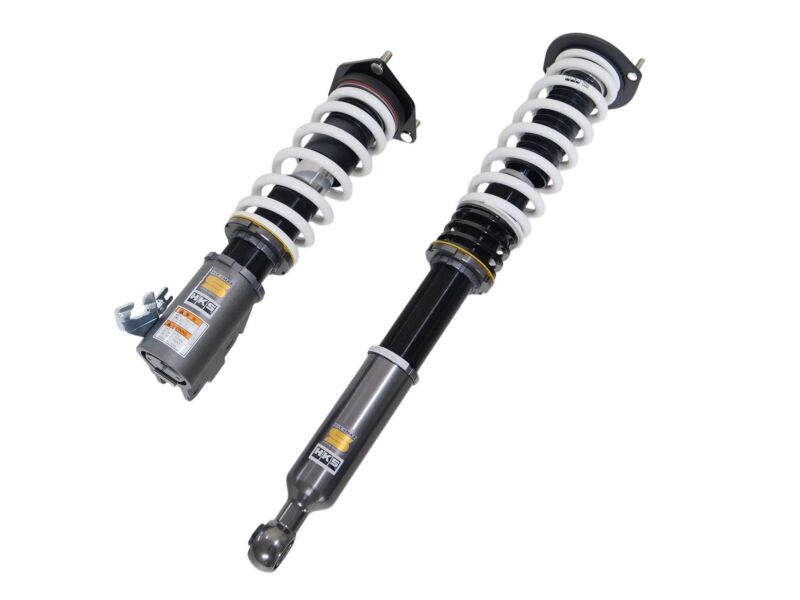

• 2x Front Inverted Coilover Assemblies (with pillow ball upper mount)
• 2x Rear Coilover Assemblies (with rubber upper mount)
• 2x Rear Helper Springs (19.8 N/mm)
• 1x Spanner Wrench Set
• 1x Damper Adjustment Tool

Product Description

The HKS Hipermax S Coilovers (80330-AN002) are purpose-built for the Nissan Silvia S14 and S15, covering both the naturally aspirated SR20DE and turbocharged SR20DET engine variants under a single SKU. The front pillow ball upper mount delivers direct, zero-deflection steering feedback - a meaningful advantage on the S-chassis given its inherently communicative RWD dynamics. The kit ships with a notable factory default drop of 47mm front and 45mm rear, providing an aggressive street stance right out of the box while retaining the full adjustable range for further tuning.

The rear damper is adjustable via wire, allowing damping changes without access to the top of the shock body - particularly useful on the S15 where rear access is limited. The 30-step Dual PVS needle system keeps the damping feel smooth and progressive across all adjustment positions, suitable for both daily street driving and spirited canyon or circuit use. The rear helper spring (19.8 N/mm) prevents spring bind at low ride height settings and maintains consistent damper action through the full stroke range.
