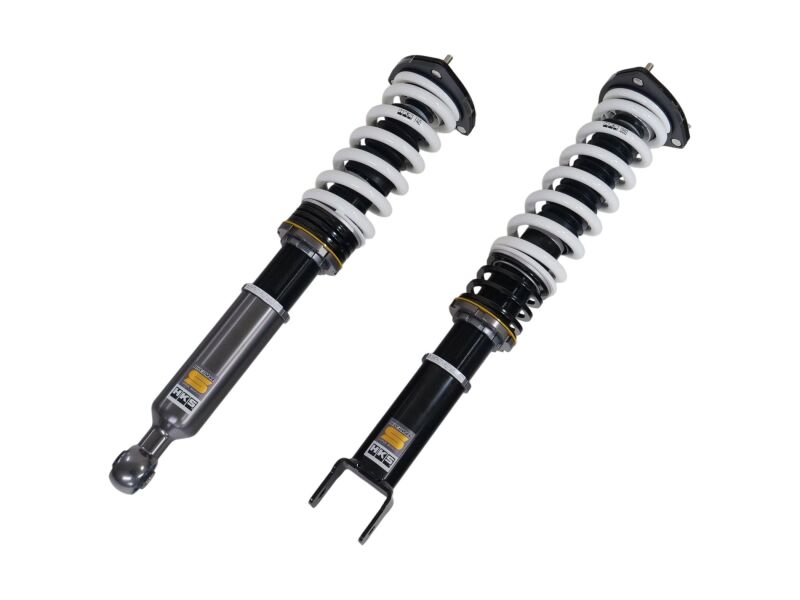

HKS 80330-AN017 Hipermax S Coilover Kit Nissan Skyline 400R RV37 Infiniti Q50 V3

Vehicle Fitment

• 2019-Present Nissan Skyline 400R (RV37; VR30DDTT Twin Turbo 3.0L V6; RWD) - Full Kit (Front & Rear)
• 2019-Present Infiniti Q50 (V37; VR30DDTT Twin Turbo 3.0L V6; RWD) - Full Kit (Front & Rear)

Fitment Notes

• Production date range: September 2019 (19/09) onward - covers RV37 production to date
• Fits RWD (rear-wheel drive) variants only; AWD (4WD) Q50 / Skyline models are not compatible
• Nissan Skyline 20GT-T (lower-spec trim with detuned VR30DDTT): not confirmed compatible as of August 2024 - verify before ordering
• Damping force adjustment is wire-accessible on both front and rear dampers
• This item ships via UPS or FedEx only - standard ground freight is not available
• Sold as a complete front and rear coilover kit (4 corners)

Features

• Single-tube (monotube) damper construction separates gas and oil chambers for stable, heat-resistant damping under sustained cornering load
• HKS Flat Ride Concept (FRC) tuning minimizes low-speed harshness while keeping the RV37 planted and controlled under hard driving
• 30-step damping adjustment via Wide Range (WR) Needle - tunable from street to performance without disassembly, accessible via wire on both axles
• Dual Preload Valve System (Dual PVS) reduces unnecessary high-speed damping force for improved ride comfort without sacrificing sport performance
• Front and rear helper springs (19.8 N/mm) prevent spring float at full droop and improve damper packing behavior
• Length-adjustable shock body allows ride height reduction without spring preload, preserving full suspension travel
• PNE corrosion coating on threaded surfaces provides 5x the durability of standard galvanizing
• Manufactured in Japan to HKS specifications; 3-year / 60,000 km warranty coverage

Specifications

• HKS Part Number: 80330-AN017 (supersedes 80300-AN017)
• Compatible Vehicles: Nissan Skyline 400R (RV37), Infiniti Q50 (V37; RWD)
• Compatible Engine: VR30DDTT (3.0L Twin Turbo V6)
• Spring Rate - Front: 138 N/mm (14 kgf/mm)
• Spring Rate - Rear: 78 N/mm (8 kgf/mm)
• Free Length - Front: 200 mm (Straight)
• Free Length - Rear: 250 mm (Straight)
• Recommended Spring Rate Change Range - Front/Rear: ±19 N/mm (±2 kgf/mm)
• Damping Force Adjustment: 30 steps (Front & Rear, wire-adjustable)
• Helper Spring (Front & Rear): 19.8 N/mm
• Upper Mount - Front: Rubber
• Upper Mount - Rear: Rubber
• Damper Layout: Normal (Front & Rear)
• Ride Height at Shipment - Front: -19 mm (adjustable range: 0 to -45 mm; drivable range: 0 to -37 mm)
• Ride Height at Shipment - Rear: -34 mm (adjustable range: 0 to -69 mm; drivable range: -15 to -58 mm)
• Country of Origin: Japan
• Warranty: 3 Years / 60,000 km

Included Components

• 2x Front HKS Hipermax S Coilover Assemblies with Rubber Upper Mounts (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies with Rubber Upper Mounts (Left & Right)
• Front and rear helper springs (19.8 N/mm)
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AN017 Hipermax S is a complete front and rear coilover kit engineered for the 2019-and-later Nissan Skyline 400R (RV37) and its Infiniti Q50 RWD counterpart, both equipped with the VR30DDTT 3.0L twin turbo V6. Built on HKS's monotube damper platform, this kit features a notably asymmetric spring rate pairing - a firm 138 N/mm front to manage the VR30DDTT's front weight bias and nose-heavy sedan dynamics, combined with a softer 78 N/mm rear to retain compliance and rear traction. Both axles benefit from 19.8 N/mm helper springs to maintain damper contact through the full travel range and avoid spring float at low-speed road irregularities.

Ride height at shipment is set to -19 mm front and -34 mm rear from factory ride height, with front adjustment up to -45 mm and rear adjustment up to -69 mm within the full adjustable range. Dual wire-accessible damping adjustment dials allow 30-step front and rear tuning without removing wheels, making in-field setup changes straightforward on track days or canyon drives. Note that AWD variants and the 20GT-T trim have not been confirmed compatible. This kit supersedes part number 80300-AN017, ships via UPS or FedEx only, and is covered by HKS's 3-year / 60,000 km manufacturer warranty.
