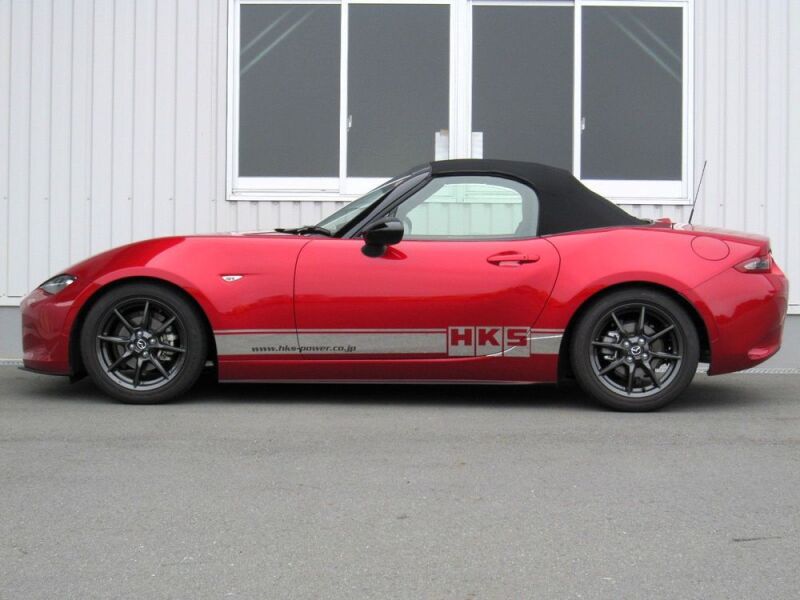

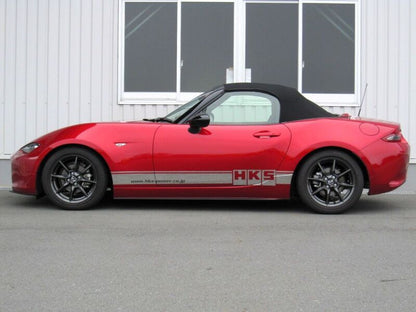

HKS 80330-AZ003 HIPERMAX S Coilover Full Kit for 2016-2024 Mazda MX-5 Miata ND

Vehicle Fitment

• 2016-2024 Mazda MX-5 Miata Soft Top (Sport, Club, Grand Touring, GT, GS, GS-P, GT-S - ND5RC / ND5RE Chassis, P5-VPR 1.5L / P5-VP 2.0L I4, RWD, MT/AT)
• 2016-2024 Mazda MX-5 Miata RF Retractable Fastback (Club, Grand Touring, GT, GS-P - NDERC Chassis, PE-VPR 2.0L I4, RWD)

Fitment Notes

• Drop heights differ between the Soft Top (ND5RC) and RF (NDERC) - see Specifications section below for trim-specific vehicle height adjustments at shipment.
• ND5RC (Soft Top) - Front: -54mm avg (range: -1 to -85mm) / Rear: -49mm avg (range: -1 to -67mm). Based on 6-speed MT model. AT models may vary slightly.
• NDERC (RF) - Front: -43mm avg (range: 0 to -84mm) / Rear: -48mm avg (range: 0 to -66mm). MT only per HKS; AT fitment on RF not confirmed by HKS documentation.
• P5-VPR engine code = 1.5L JDM Roadster; P5-VP = 2.0L global/export MX-5. Both are ND5RC chassis and share the same coilover kit fitment.
• Spring rate changes from factory are not recommended per HKS (F and R spring specs are optimized for MX-5 platform balance and should not be substituted).
• Can only be shipped via UPS or FedEx - not eligible for standard freight or LTL shipping.

Features

• FLAT RIDE CONCEPT - engineered to smooth low-speed harshness while maintaining high-speed cornering stability and control unique to the ND MX-5 platform
• Large-diameter monotube damper design separates gas and oil chambers for stable, consistent damping performance under heat and repeated compression cycles
• 30-level damping force adjustment - spans from comfort-oriented street tuning to firm, track-ready settings with a single dial
• Dual PVS (Piston Valve System) delivers independent control of low- and high-speed damping characteristics for precise, platform-specific ride tuning
• Full-length adjustable shock body allows ride height reduction without pre-loading the spring - preserving suspension geometry and spring rate integrity at any height
• DURA BOOTS shaft protection guards the damper shaft against rock chips, road debris, and contamination for extended service life
• 3-year / 60,000 km warranty - validated through 60,000 km of real-world testing prior to production release

Specifications

• Series: HKS HIPERMAX S
• Part Number: 80330-AZ003
• Kit Type: Full Kit (4 corners - front and rear coilovers)
• Damper Type: Monotube (large-diameter)
• Damping Adjustment: 30 levels
• Spring Rate - Front: 39 N/mm (4 kgf/mm)
• Spring Rate - Rear: 29 N/mm (3 kgf/mm)
• Free Length - Front: 220mm (Barrel spring)
• Free Length - Rear: 250mm (Barrel spring)
• Damping Force @ 0.1 m/sec - Front: Stretch 530N / Shrink 343N
• Damping Force @ 0.1 m/sec - Rear: Retention 231N / Retraction 294N
• Drop Height - ND5RC Soft Top Front: -54mm avg (range: -1 to -85mm)
• Drop Height - ND5RC Soft Top Rear: -49mm avg (range: -1 to -67mm)
• Drop Height - NDERC RF Front: -43mm avg (range: 0 to -84mm)
• Drop Height - NDERC RF Rear: -48mm avg (range: 0 to -66mm)
• Height data based on 6-speed MT model
• Warranty: 3 Years / 60,000 km
• Origin: Japan

Included Components

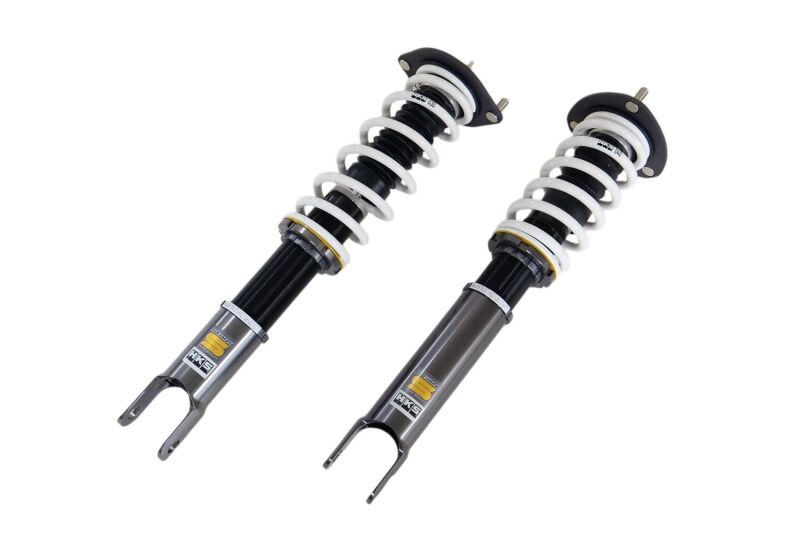

• 2x Front HIPERMAX S Monotube Coilover Struts
• 2x Rear HIPERMAX S Monotube Coilover Units
• 4x Vehicle-specific barrel springs (front and rear)
• All mounting hardware and installation components

Product Description

The HKS 80330-AZ003 HIPERMAX S is a full coilover kit purpose-built for the 4th-generation Mazda MX-5 Miata, covering the ND5RC/ND5RE Soft Top and NDERC RF platforms from 2016 through 2024. Built around HKS's FLAT RIDE CONCEPT, the kit is designed to eliminate the low-speed harshness typical of performance coilovers while keeping the MX-5 flat, planted, and responsive under hard cornering. The large-diameter monotube damper separates gas and oil for consistent damping performance under heat, paired with Dual PVS technology for independent control of low- and high-speed damping. The 30-level adjustment range lets drivers dial the kit from a comfortable daily-driver setting to a firm, track-oriented tune without changing hardware.

Full-length shock body adjustment lowers the car without pre-loading the spring, preserving suspension geometry and spring rate integrity at any ride height. DURA BOOTS shaft protection ensures long-term durability against road debris. Drop heights are platform-specific - the Soft Top (ND5RC) drops an average of 54mm front and 49mm rear from factory, while the RF (NDERC) drops 43mm front and 48mm rear, all measured on the 6-speed MT model. The kit is backed by HKS's 3-year / 60,000 km warranty and validated through 60,000 km of real-world testing before production release - making it one of the most thoroughly developed coilover options available for the ND MX-5 platform.
