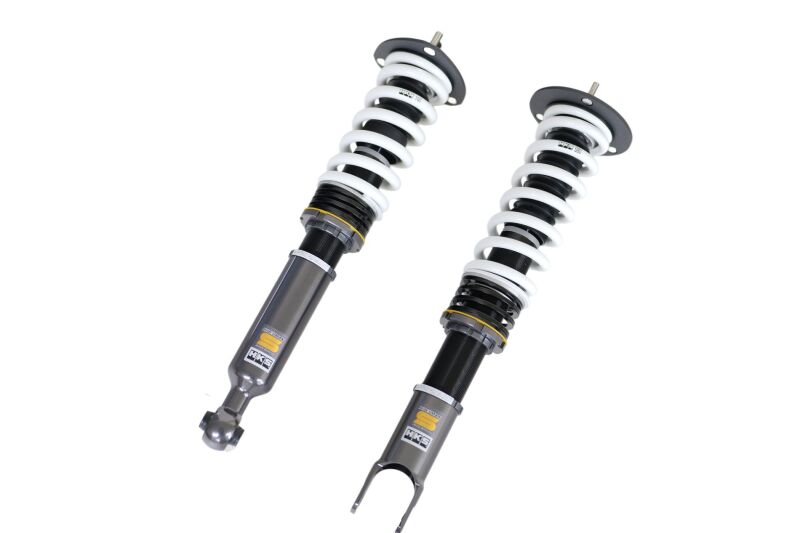

HKS 80330-AT010 Hipermax S Lowering Coilovers for 1993-2002 Toyota Supra JZA80 2

Vehicle Fitment

• 1993-2002 Toyota Supra (JZA80 Platform, 2JZ-GTE 3.0L Twin-Turbo I6, RWD)

Fitment Notes

• Fits JZA80 Supra production from June 1993 through July 2002
• Compatible with 2JZ-GTE (twin-turbo) engine only - not officially listed for 2JZ-GE (naturally aspirated) variants under this Hipermax S SKU
• Not compatible with vehicles equipped with REAS (Rear Electronic Active Suspension) in stock form - installation is possible only after removing the hydraulic REAS system
• Factory spring rate change is not recommended for this application
• Upper mounts are rubber bush front and rear

Features

• Single-tube monotube damper with separated gas and oil chambers for stable, high-quality damping force
• 30-step damping force adjustment on both front and rear for precise street-to-track tuning
• Dual Preload Valve System (Dual PVS) reduces unnecessary high-speed damping force for improved ride comfort without sacrificing handling performance
• Inverted front strut design reduces unsprung weight and increases lateral rigidity under hard cornering
• Wide-range needle jet expands effective damping range, making each of the 30 steps more distinct and usable
• Advanced bump stop rubber reduces body roll while maintaining compliance over large impacts
• PNE coating delivers 5x corrosion resistance compared to standard galvanizing
• 3-year manufacturer warranty with overhaul service available

Specifications

• Spring Rate - Front: 137 N/mm (14 kgf/mm) | Rear: 78 N/mm (8 kgf/mm)
• Free Length - Front: 200 mm | Rear: 250 mm
• Damping Force at 0.1m/sec - Front: Rebound 1775 N / Compression 637 N
• Damping Force at 0.1m/sec - Rear: Rebound 912 N / Compression 422 N
• Damping Adjustment - Front: 30 Steps | Rear: 30 Steps
• Default Damper Position - Front: Step 15 | Rear: Step 15
• Upper Mount - Front: Rubber Bush | Rear: Rubber Bush
• Damper Layout - Front: Inverted | Rear: Normal
• Ride Height Range (vs. stock) - Front: 0 to -92 mm | Rear: 0 to -77 mm
• Default Ride Height at Shipment (vs. stock) - Front: -31 mm | Rear: -13 mm
• Factory Spring Rate Change: Not recommended

Included Components

• 2x Front Inverted Coilover Assemblies (with rubber upper mount)
• 2x Rear Coilover Assemblies (with rubber upper mount)
• 1x Spanner Wrench Set
• 1x Damper Adjustment Tool

Product Description

The HKS Hipermax S Coilovers (80330-AT010) are engineered specifically for the Toyota Supra JZA80 (MK4) with the 2JZ-GTE twin-turbo engine. With a stiffer front spring rate of 137 N/mm (14 kgf/mm) relative to the softer 78 N/mm rear, the kit is tuned to complement the JZA80's front-heavy weight distribution and deliver sharp, confident front-end response. The ride height range is generous - up to 92mm of front drop and 77mm rear - giving the owner wide flexibility from a modest street stance to a more aggressive, lowered setup. The kit ships with a mild factory-default drop of 31mm front and 13mm rear, ready for immediate use without corner balancing.

The Dual Preload Valve System keeps damping behavior smooth and predictable across all 30 adjustment steps, while the inverted front monotube design maintains rigidity and reduces unsprung weight for improved turn-in precision. Owners with REAS-equipped Supras should note that this kit requires removal of the factory hydraulic rear suspension system before installation - a common and well-documented process for JZA80 enthusiasts upgrading to aftermarket suspension.
