HKS 80330-AZ002 Hipermax S Lowering Coilovers for 1991-2002 Mazda RX-7 FD3S 13B

Vehicle Fitment

• 1991-2002 Mazda RX-7 (FD3S Platform, 13B-REW Twin-Turbo Rotary, RWD)
• Covers all FD3S production types: Type I (1991-1994), Type II (1994-1995), Type III (1994-1996), Type IV (1996-1998), Type V (1999-2000), and Type VI (2000-2002)

Fitment Notes

• Fits FD3S production from December 1991 through August 2002 across all trim and type variants
• Compatible with 13B-REW twin-turbo rotary engine only
• Damper layout is normal type front and rear - not an inverted strut design for this application
• Upper mounts are rubber bush front and rear
• Rear includes helper spring (19.8 N/mm)
• Factory spring rate change available: ±10 N/mm (±1 kgf/mm) front and rear

Features

• Single-tube monotube damper with separated gas and oil chambers for stable, consistent damping force
• 30-step damping force adjustment on both front and rear for precise street-to-track tuning
• Dual Preload Valve System (Dual PVS) suppresses unnecessary high-speed damping for improved ride comfort without affecting handling performance
• Wide-range needle jet expands the effective damping adjustment range, making each step more distinct and usable
• Advanced bump stop rubber reduces body roll while maintaining compliance over large road impacts
• Strengthened rubber upper mounts absorb small vibrations while improving mount rigidity vs. stock
• PNE coating delivers 5x corrosion resistance compared to standard galvanizing
• 3-year manufacturer warranty backed by HKS in-house durability testing and real-world validation

Specifications

• Spring Rate - Front: 98 N/mm (10 kgf/mm) | Rear: 108 N/mm (11 kgf/mm)
• Free Length - Front: 200 mm | Rear: 200 mm
• Damping Force at 0.1m/sec - Front: Rebound 1398 N / Compression 505 N
• Damping Force at 0.1m/sec - Rear: Rebound 946 N / Compression 392 N
• Damping Adjustment - Front: 30 Steps | Rear: 30 Steps
• Default Damper Position - Front: Step 15 | Rear: Step 15
• Upper Mount - Front: Rubber Bush | Rear: Rubber Bush
• Damper Layout - Front: Normal | Rear: Normal
• Damper/Spring Layout - Front: Coilover | Rear: Coilover
• Rear Helper Spring Rate: 19.8 N/mm
• Ride Height Range (vs. stock) - Front: -1 to -36 mm | Rear: 0 to -67 mm
• Default Ride Height at Shipment (vs. stock) - Front: -20 mm | Rear: -24 mm
• Factory Spring Rate Change: ±10 N/mm (±1 kgf/mm) Front & Rear

Included Components

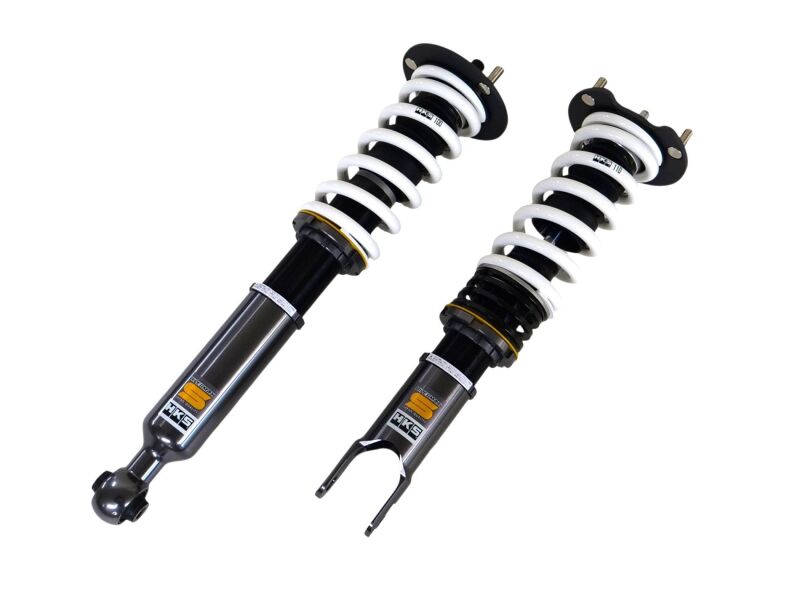

• 2x Front Coilover Assemblies (with rubber upper mount)
• 2x Rear Coilover Assemblies (with rubber upper mount and helper spring)
• 1x Spanner Wrench Set
• 1x Damper Adjustment Tool

Product Description

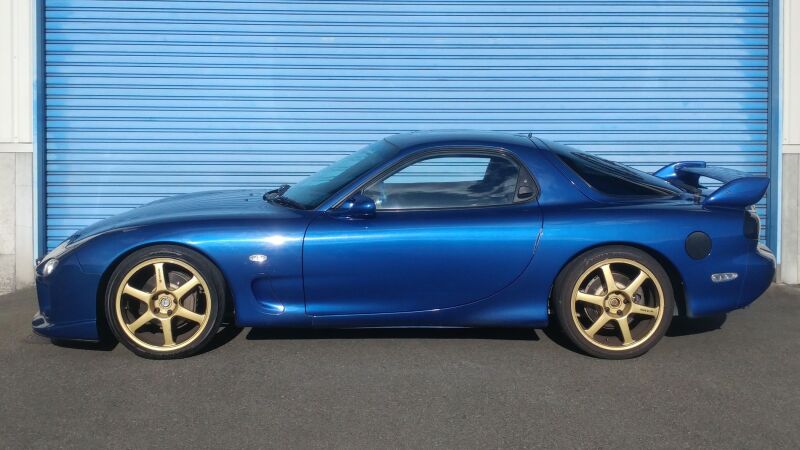

The HKS Hipermax S Coilovers (80330-AZ002) cover the complete production run of the Mazda RX-7 FD3S from 1991 through 2002, fitting all six factory type variants under a single SKU. The kit is tuned to suit the FD3S's unique weight distribution and rotary-specific chassis behavior, with a slightly stiffer rear spring rate (11 kgf/mm) than front (10 kgf/mm) to account for the rear-heavy balance of the twin-turbo 13B-REW platform. The factory-default drop of 20mm front and 24mm rear gives an immediate visual improvement and handling benefit without requiring any immediate setup work.

Unlike many HKS kits for front-strut applications, the FD3S kit uses a normal (non-inverted) damper layout on both ends, matching the FD3S's double-wishbone suspension geometry at all four corners. The 30-step damping dials allow fine-tuning from comfortable street driving to a more track-focused setup, and the rear helper spring ensures spring control at lower ride heights. Factory spring rate changes of ±10 N/mm are available from HKS for drivers who want a custom spring spec outside the standard tuning range.
